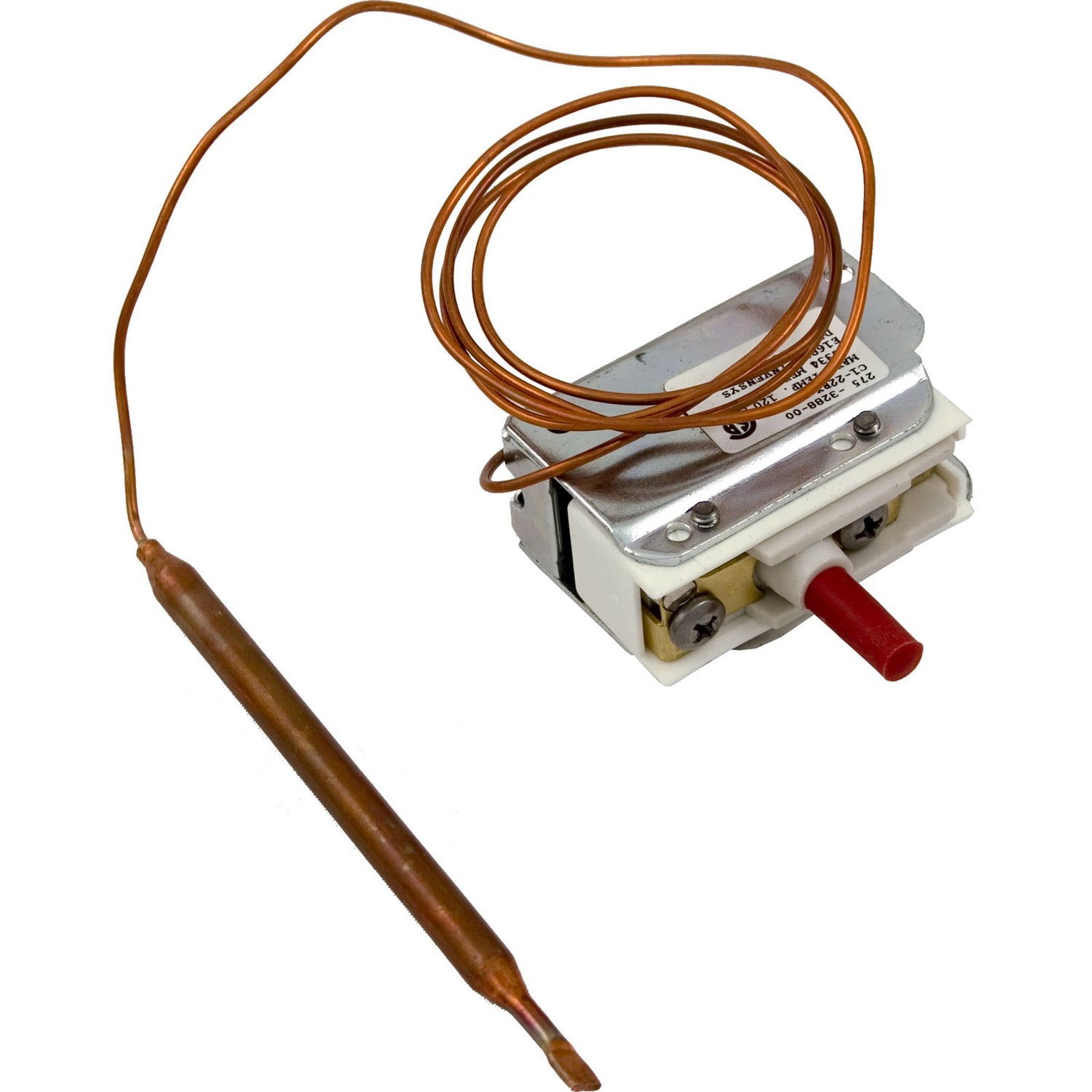

Hi-Limit, 1/4" dia, 36"Capillary, SPST, Screw Terminal, 25A : 275-3288-00

Hi-Limit, 1/4" dia, 36"Capillary, SPST, Screw Terminal, 25A Hi Limits Single pole rated at 25 amps with temperature rating set at 121°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater 36" capillary length, 1/4" bulb thickness This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad hi limit with a new one Hi-Limit Application: Generic Hi-Limit Style: Capillary Bulb Diameter: 1/4" Bulb Length: 4" Capillary Length: 36" Pole/Throw: Single Pole Single Throw (spst) Hi-Limit Amperage: 25AElectrical Connection: Screw Terminal Replaces H-L1/4"-36",275-2663-00,611548,9135-03B,H-L1/4-36,IAC275328800,
