Control System Kit, Balboa BP7, all outputs are 230V, 4.0kW, 1-2 Pumps w/TP500 Topside & Light Cord : G6405

Product Details

The Balboa BP7 Control System Kit is a versatile, next-generation spa control solution designed for 220V operation. It supports multiple pump configurations, includes essential components, and is compatible with existing Balboa topside panels.

• System Type: Balboa BP7 Control System Bundle (Next Generation)
• Voltage: 240V (Neutral not required; can be wired with neutral for 120V pumps, blowers, etc.)
• Power Output: 4.0 kW heater (Flow Thru, Fixed), 1.0 kW option available
• Pump Support: 1-4 pumps including Microsilk systems; supports 1-2 pumps with 1-speed or 2-speed configurations
• Component Configuration: Pump 1 (1spd or 2spd) + Pump 2 or Blower (1spd or 2spd) + Circulation Pump (1spd) + Ozone + AV Receptacle (120V or 230V)

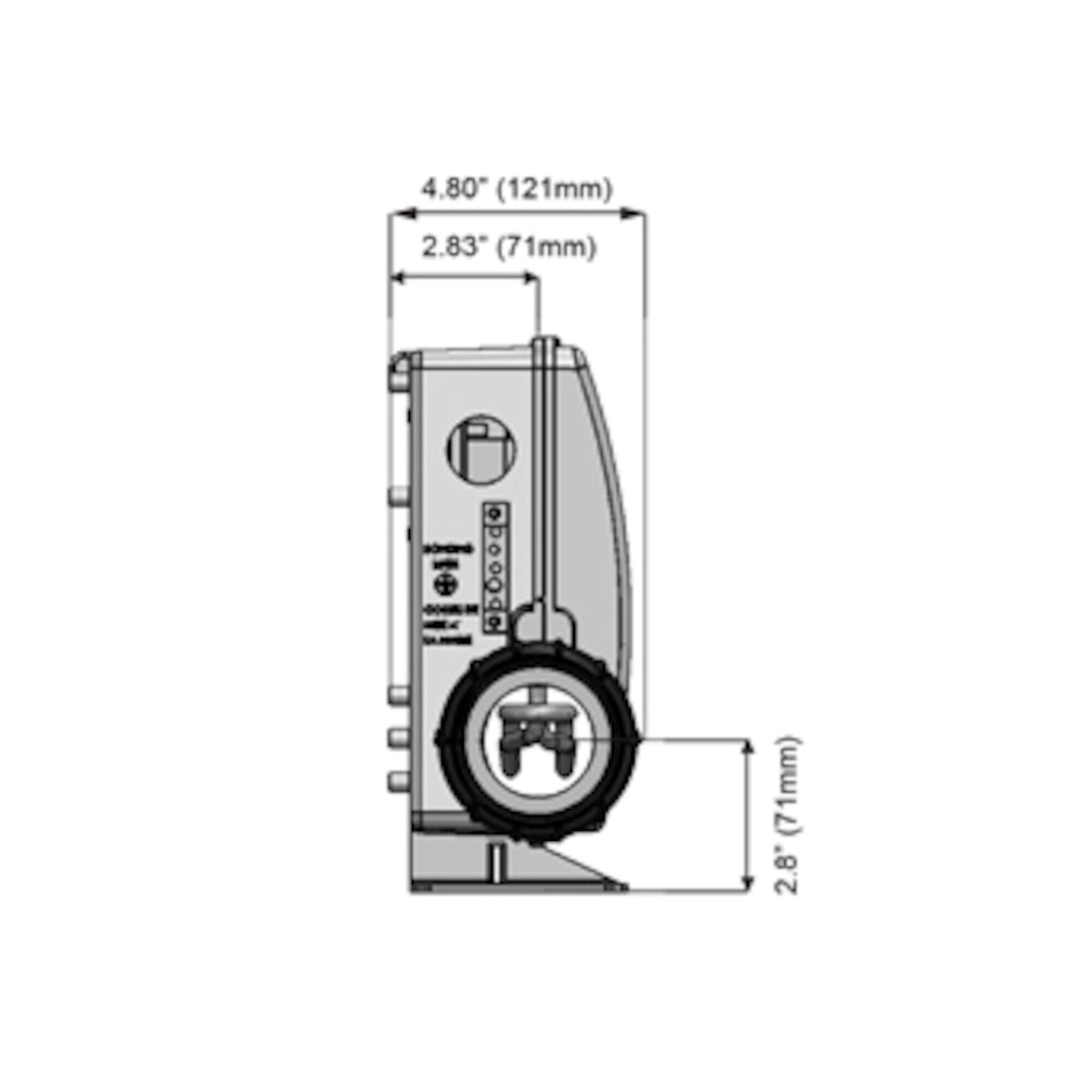

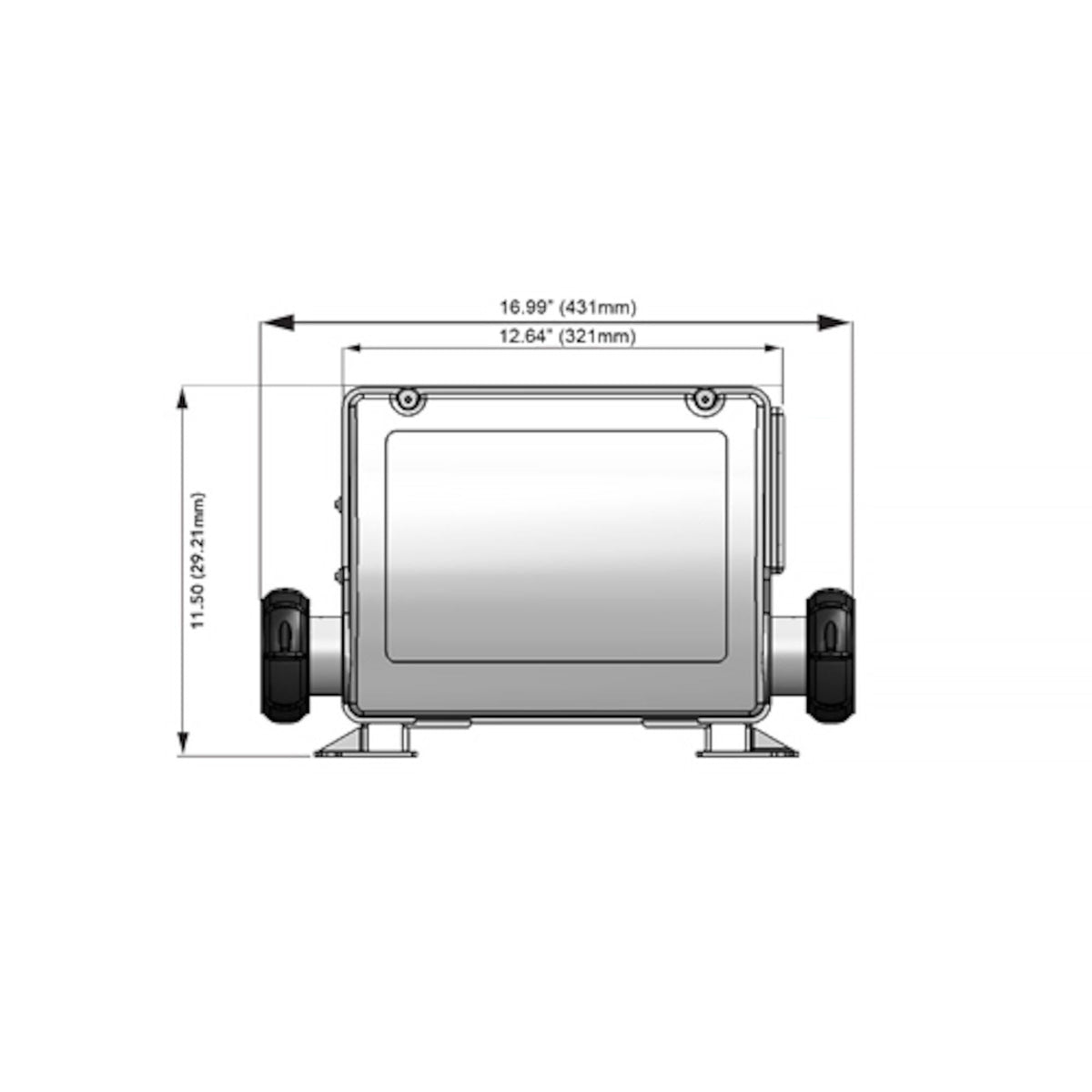

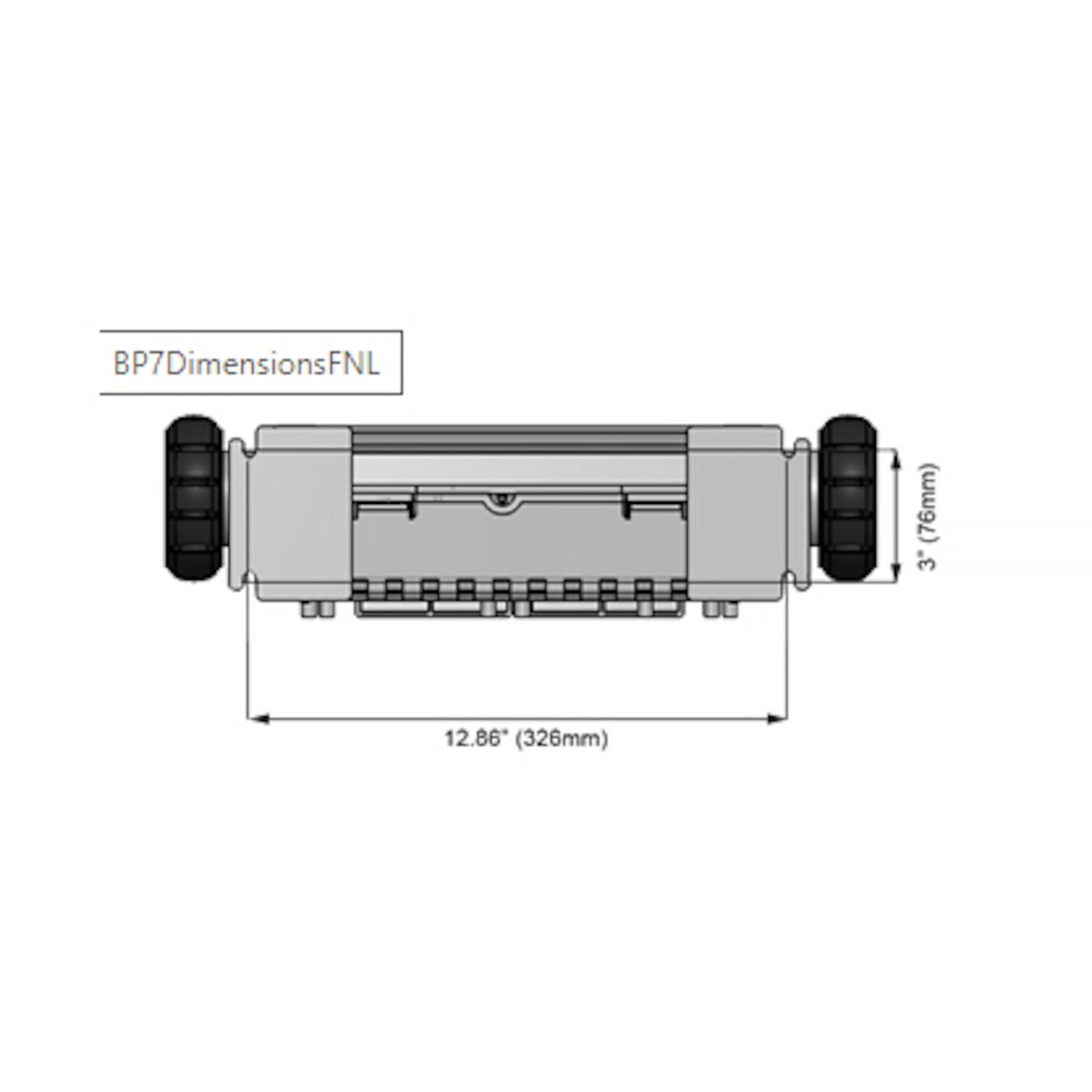

• Enclosure Dimensions: 17" W x 11.5" H x 4.75" D (Plastic enclosure, larger than VS enclosures)

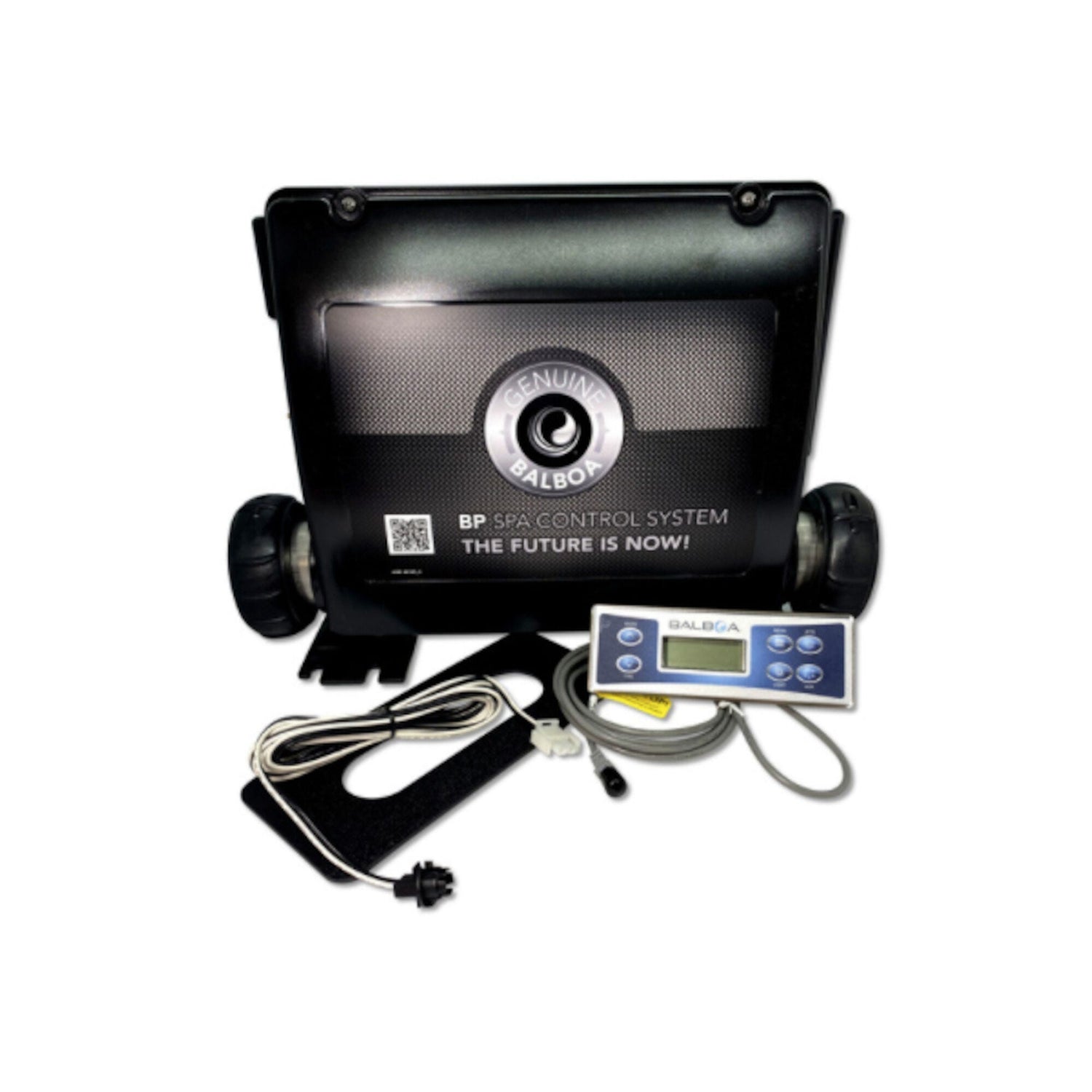

• Included Components: 4.0 kW heater, sensors, TP500 keypad (#57238, 6.3" x 2.25"), adapter plate, light cord; component cords not included
• Keypad Compatibility: TP500 topside panel; suggested overlay #17183 included
• Compatibility: Replaces any Balboa BP, VS, or EL system when paired with TP or SpaTouch topside panels; supports all BP ancillary products including ControlMySpa™, BBA™, CZ™, and Status Pro
• Additional Notes: AMP style receptacles used; component cords are not included

This control system kit offers a flexible and modern upgrade path for existing Balboa spa systems, providing enhanced relay options and broad compatibility with Balboa topside panels and ancillary products.
