Pump, Waterway Viper, 5.0HP, 230V, 16.4/4.8A, 2-Speed, 2-1/2"MBT, SD, 56-Frame : 3722021-1V
Product details

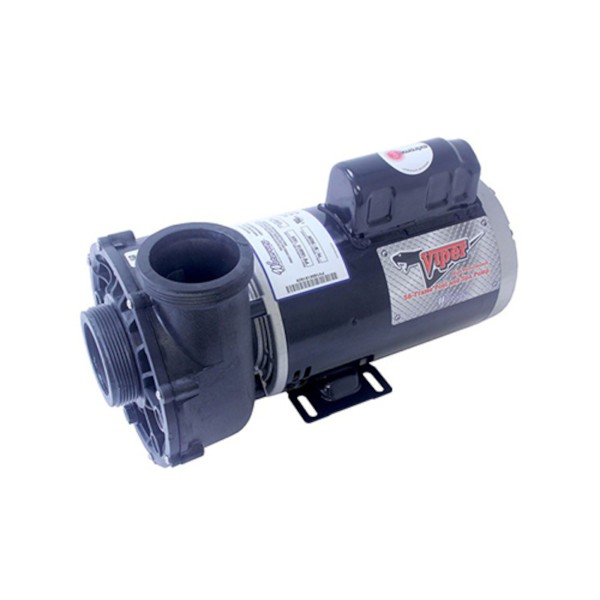

Viper Jet Pump
Committed to innovation & excellence since 1973
Designed for high volume, low pressure systems. the ideal choice for swim spas. The Viper pool and spa pump features a 90º rotating wet end for full versatility and is available in 2, 3, 4 and 5 HP (Full Rated) models.
Additional Information
Features-
-Ultra high performance Viper wet end specifically designed for 56-frame motors
-Extra large 2 1/2" intake for improved flow performance and noise reduction
-Large 8" diameter wet end to move higher volumes of water at lower pressures
-Highly versatile wet end can be rotated every 90°
Specifications-
Horsepower- 5
Voltage- 230
Amps- 16.4/4.8
Intake and Discharge- 2-1/2" MBT
Flow Rate- 260 GPM
Frame Size- 56Y
NOTE - Does not include unions or pump cord
**Pump & motor manufacturers reserve the right to change motors on pumps or style of motor without notice. Motors shown may differ from current stocked product. Functionality remains the same**
Alternate Part Numbers
15-350-2021 WW37220211V 37220211V 37220210V 3722021-0T PV-50-2N22C LX SWIM-56 34-270-3510N 34-270-3510W 34-270-3510General
- Reference 3722021-1V
- In stock 1 item
