Impeller, Zodiac Jandy FHPF, 1.5hp, w/Screw & O-Ring : R0479603
Product details

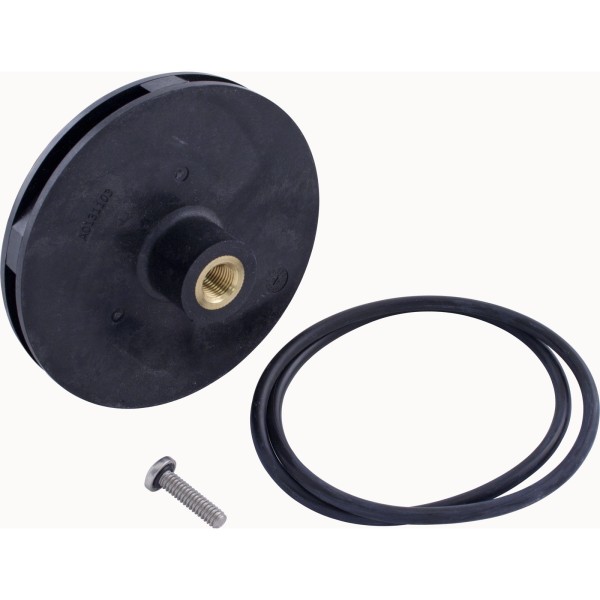

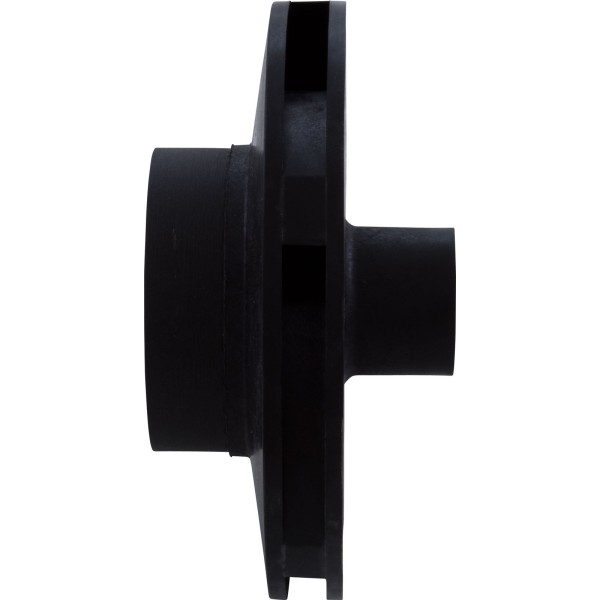

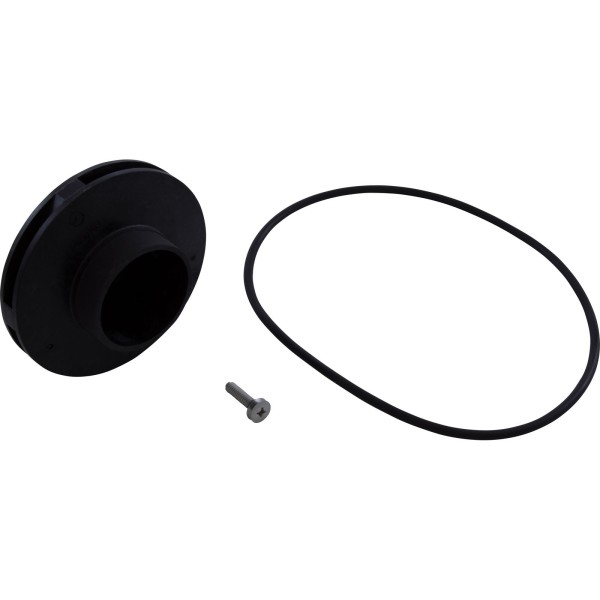

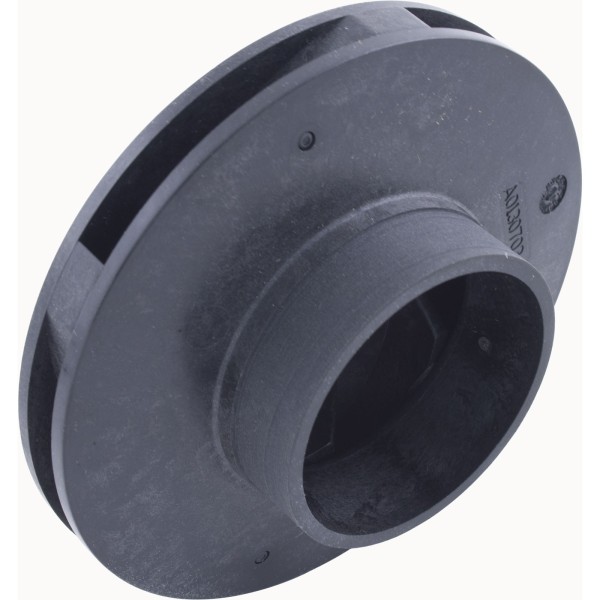

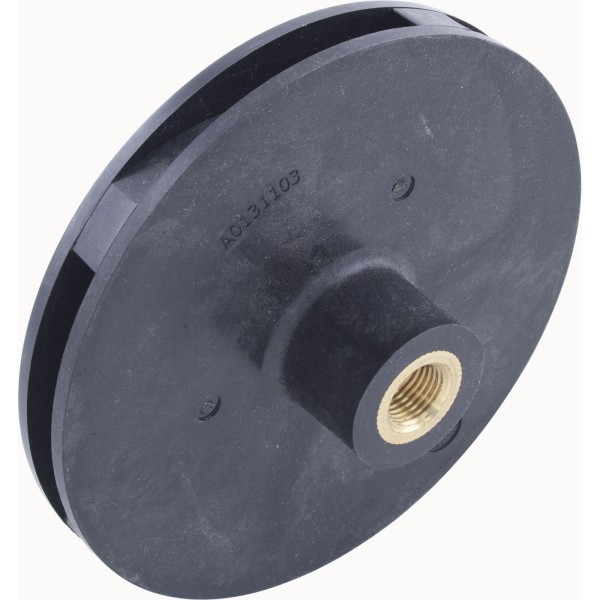

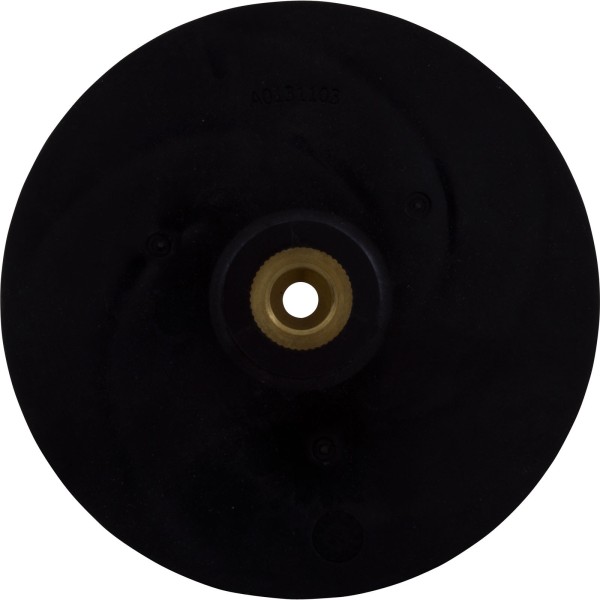

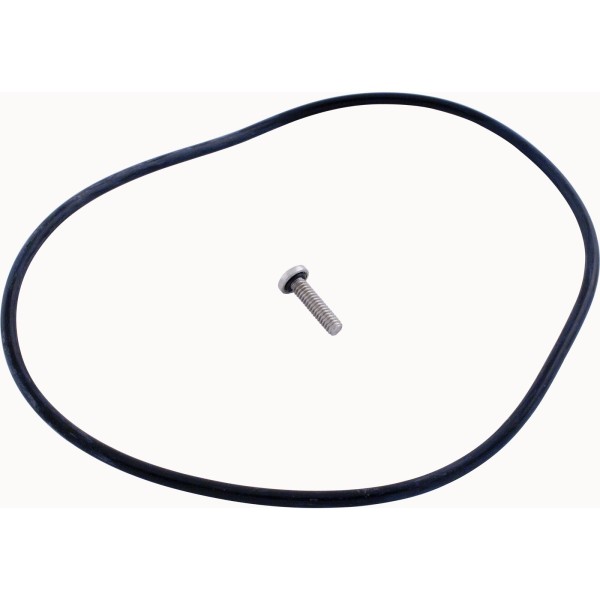

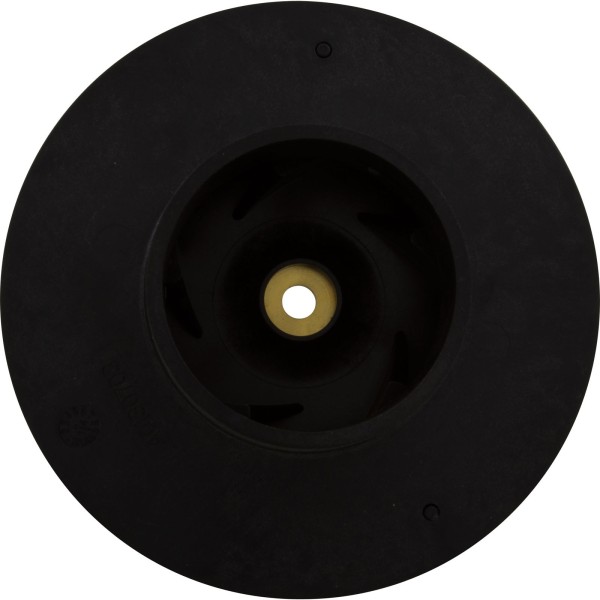

Impeller, Zodiac Jandy FHPF, 1.5hp, w/Screw & O-Ring Jandy/Laars/Zodiac Pump ImpellerClosed face impeller made for the FHP series pumps by Jandy/Laars/Zodiac. Rated at 1.5hp, it is used in the FHP pump body, and must be installed on a 1.5hp (or greater) square flange motor. Comes with seal plate o-ring. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-1/2" Vane Width ID: 5/16" Eye Diameter OD: 2-5/16" Eye Length: 3/4" Impeller Width OD: 9/16" Seal Seat Depth: 13/16"Shaft Length: Shaft Diameter OD: Seal Seat Diameter OD: 1-1/8"Manufacturer: Jandy/ZodiacPump Application: FHPF SeriesReplaces 5020-092,52337034609,632816,TLD-101-2038,
General
- Brand Jandy/Zodiac
- Reference R0479603
- In stock 7 items
