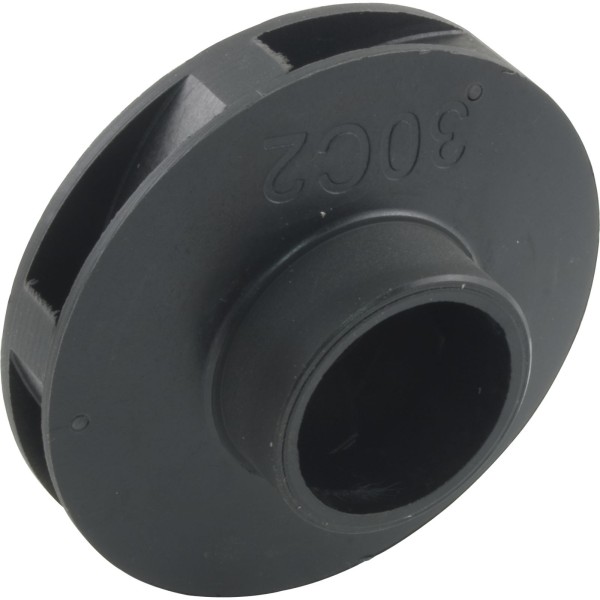

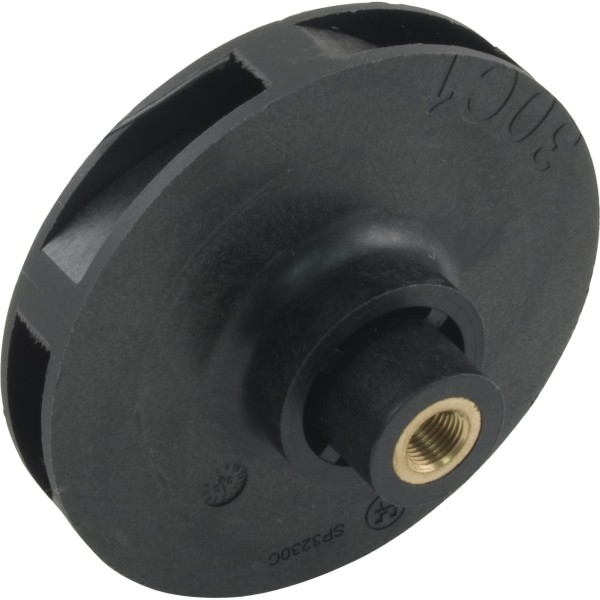

Impeller, Hayward Tristar, 3.0 Horsepower, with Screw : SPX3230C

Impeller, Hayward Tristar, 3.0 Horsepower, with Screw Hayward Pump ImpellerClosed face impeller made for the TriStar SP3200/SP3200EE/SP3600 pool pump by Hayward. Rated at 3.0hp, it is used in a SP3200 and or SP3600 pump body, and must be installed on a 3.0hp (or greater) square flange motor. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/4" Vane Width ID: 1/2" Eye Diameter OD: 2-3/16" Eye Length: 13/16" Impeller Width OD: 3/4" Seal Seat Depth: 5/8"Shaft Length: Shaft Diameter OD: Seal Seat Diameter OD: 1-1/8"Manufacturer: HaywardPump Application: SP3200, SP3200EE, SP3600, TristarReplaces 5112-214,610377912136,623910,HAY-101-3213,SP3230C,
