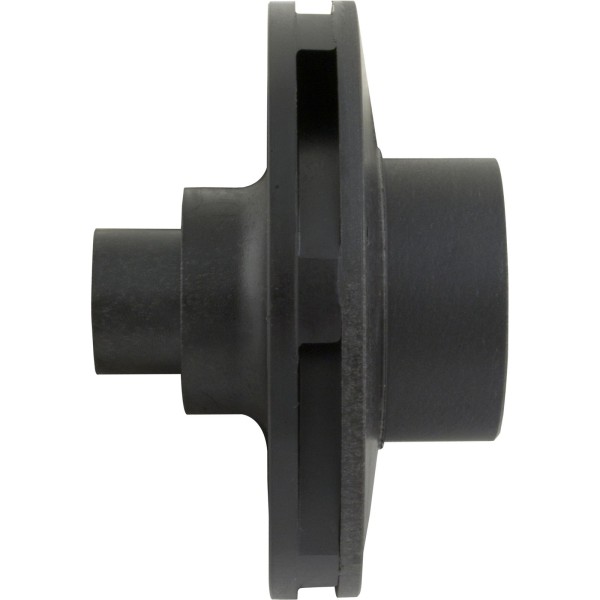

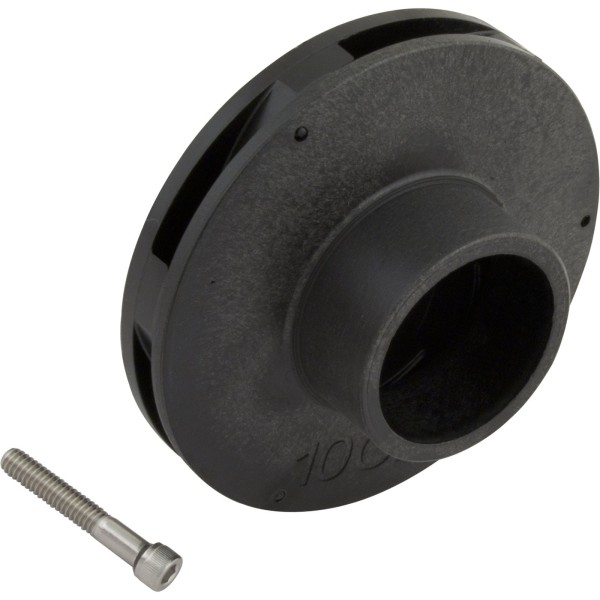

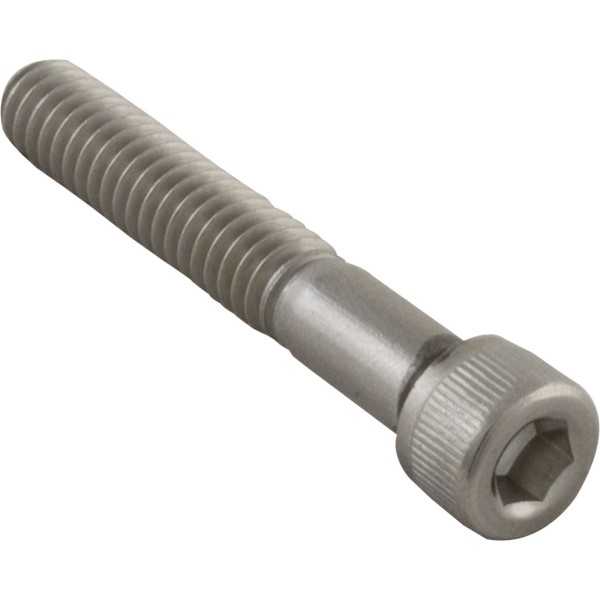

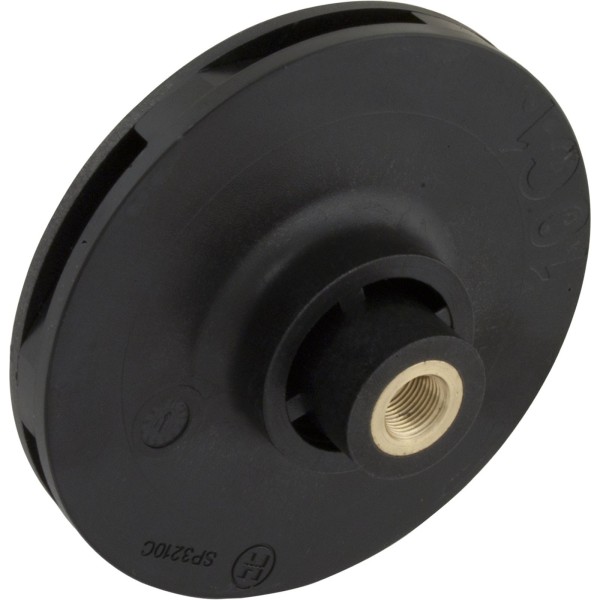

Impeller, Hayward Tristar, 1.0ohp/1.5thp, w/Screw : SPX3210C

Impeller, Hayward Tristar, 1.0ohp/1.5thp, w/Screw Hayward Pump ImpellerClosed face impeller made for the TriStar SP3200/SP3200EE/SP3600 pool pump by Hayward. Rated at 1.0hp, it is used in a SP3200 and or SP3600 pump body, and must be installed on a 1.0hp (or greater) square flange motor. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-9/16" Vane Width ID: 5/16" Eye Diameter OD: 2-3/16" Eye Length: 15/16" Impeller Width OD: 11/16" Seal Seat Depth: 11/16"Shaft Length: Shaft Diameter OD: Seal Seat Diameter OD: 1-1/8"Manufacturer: HaywardPump Application: SP3200, SP3200EE, SP3600, TristarReplaces 5112-81,610377912105,623877,HAY-101-3210,SP3210C,
