$420.94

Product info

Motor, Century, 1.5hp, 115v/208-230v, 1Spd, 56Jfr, C-Face Thd, EE

Product details

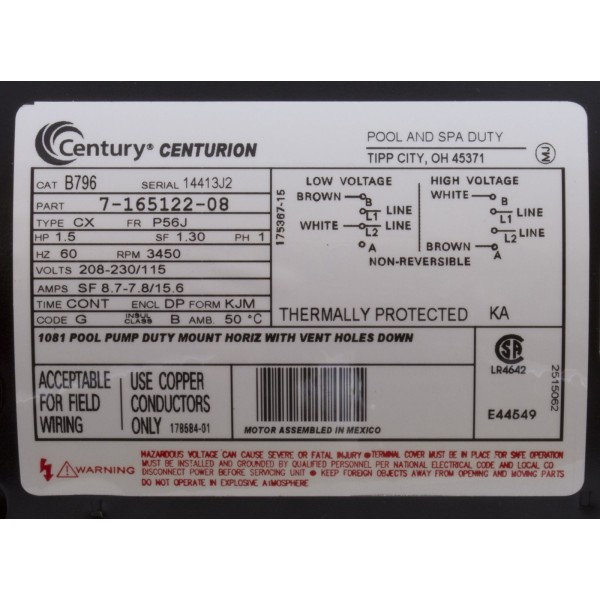

Motor, Century, 1.5hp, 115v/208-230v, 1Spd, 56Jfr, C-Face Thd, EE CAT: B796MODEL: 165122TYPE: CXFR: P 56 JHP: 1.5SF: 1.30PH: 1HZ: 60RPM: 3450ROT: CWVOLTS: 208-230/115AMPS:MAX AMPS:SF AMPS: 8.7-7.8/15.6TIME: CONTENCL: ODP THERMALLY PROTECTEDFORM:CODE: GINSUL CLASS: BAMB.: 50°CPumps and replacement motors that are single speed and one (1) TOTAL HP or greater cannot be sold, offered for sale, or installed in a residential pool for filtration use in California, Title 20 CCR sections 1601-1609. Motor Type: Pool Motor Amperage: 19.6A/10.4-9.8A Voltage: 115v/208v-230v Phase: 1 Phase (1ph) Frame Type: 56J Speed: 1 Speed (1-Spd) Horsepower: 1.5hpTotal Horsepower: 2.3thpMotor Shaft Type: ThreadedMotor Style: C-FaceCapacitor On Top: YesManufacturer: CenturyReplaces 38566,52011,5223A,620090,786674013071,8129,C1101,E8129,EB796,EST1152,ST1152

General

  • Brand Century
  • Reference B796
  • In stock 19 items
