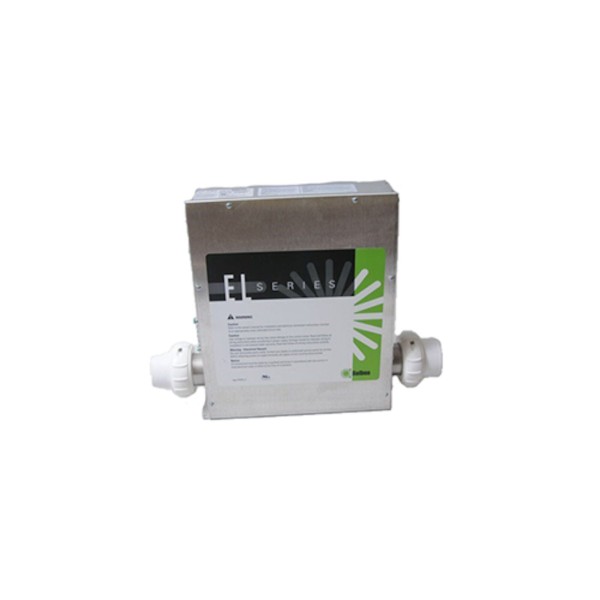

Control System, Balboa EL8000 Mach 3, ML, 240V, 5.5kW, Pump1, Pump2 1 or 2 Spd, Pump3 1 or 2 Spd, Blower : 55064-03
Product details
EL Series Electronic Control System
EL series, delivering maximum performance and satisfaction.
The Elite Series (EL) family of hot tub control systems were designed using Balboa's patented M7® temperature and water flow sensing technology and a new universal control platform. These features increase the reliability, ease of installation and serviceability of the control. Innovative features include having output connectors on-board, which eliminates a maze of wires in the enclosure and ultimately reduces assembly time and margin for error.
Additional Information
AMP Style Receptacles - Component Cords Not Included
Enclosure - Metal - 15" x 12.25" x 3.5" WxHxD
Sensors - Included
Keypad - Not Included
Works With Keypad ML900 (Not Included)
Heater Style - Flow Thru (Fixed) -
Wattage - 1.4/5.5kW
Measures - 2" x 15" long
System Voltage - 240V (Neutral Required)
Component Configuration - 120v/240v - Pump1 (2spd) + Pump2 (1spd or 2spd) + Blower or Pump3 (1spd) + Ozone + AV Receptacle (120v)
Included With System - 5.5kw Heater & Sensors
Alternate Part Numbers
55064-04 (Balboa) 55064 BB55064 BAL55064General
- Reference 55064-03
- In stock 2 items
