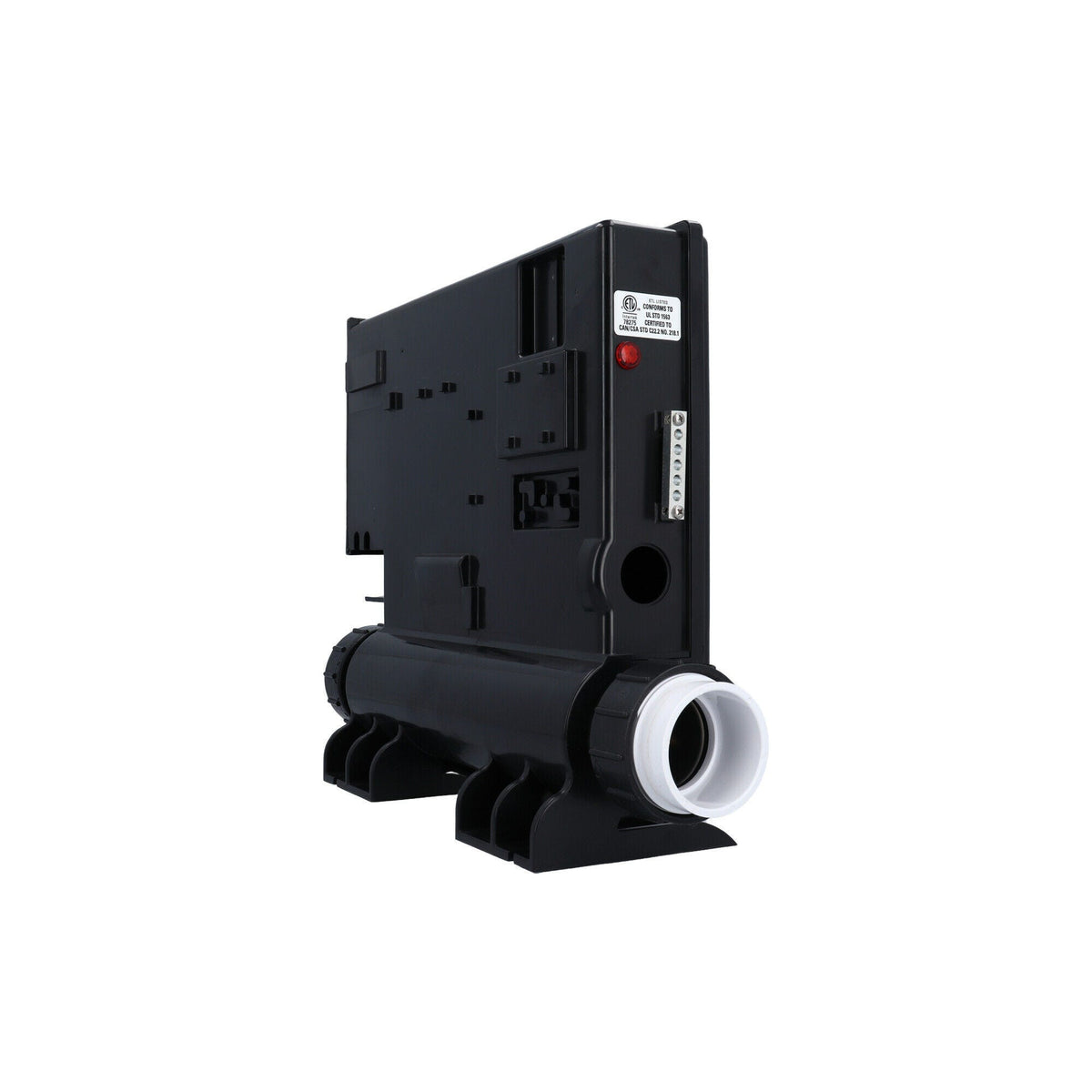

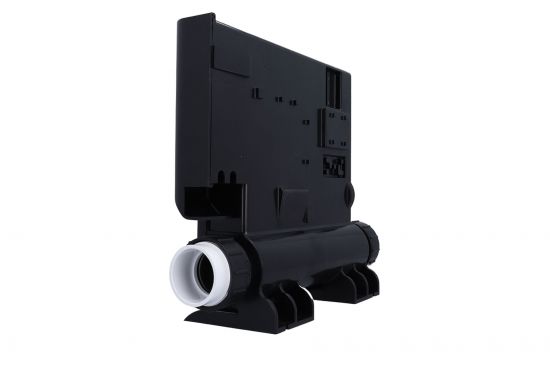

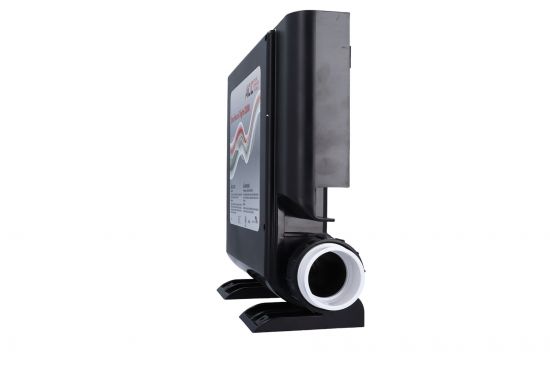

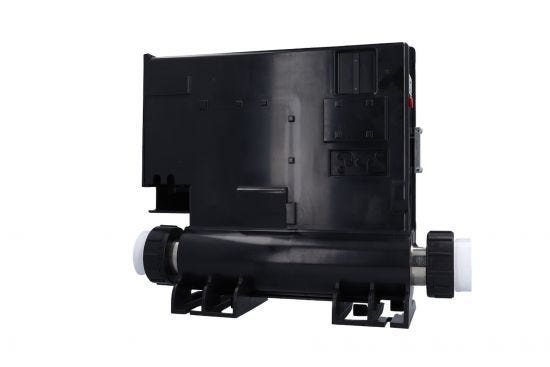

Control System, Kit, ACC SMTD2000, 240V Only 4-Wire, 5.5kW, Pump1, Pump2 1 or 2 Spd, Blower : SMTD2PBLCA-4
Product details

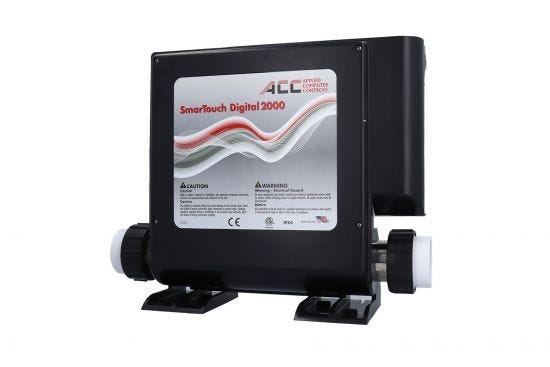

2000 Electronic Control System
Flexibility you need, The quality you expect
The 2000 can control a 2 speed primary pump, a 2 speed secondary pump ( or dual pumps single speed) , a single speed air blower ( or a fourth pump), a 12 volt spa light, an auxiliary light and an ozonator. The system comes with a calibrated pressure switch, a heavy duty 2 pole contact to control the 5.5 KW attached heating element.
Additional Information
Main Circuit - 1 or 2 -Speed Pump 240V
2nd Circuit - 1 or 2- Speed Pump 240V
3rd Circuit - 1- Speed Blower 120/240V
Spaside Control - Included
Heater Style - Straight/Fixed, Wattage - 1.4/5.5kW
System Voltage - 240V Only (4-Wire)
Component Configuration - Pump1 + Pump2 + Blower
""
Alternate Part Numbers
3-73-3104 SMTD-2000APAXLD (ACC)General
- Reference SMTD2PBLCA-4
