Circulation Pump, Aqua-Flo CMHP, 1/15HP, SD, 1-Speed, 230V, 0.6A, 1-1/2"MBT, Unions : 02093001-2010
$254.36
Product details

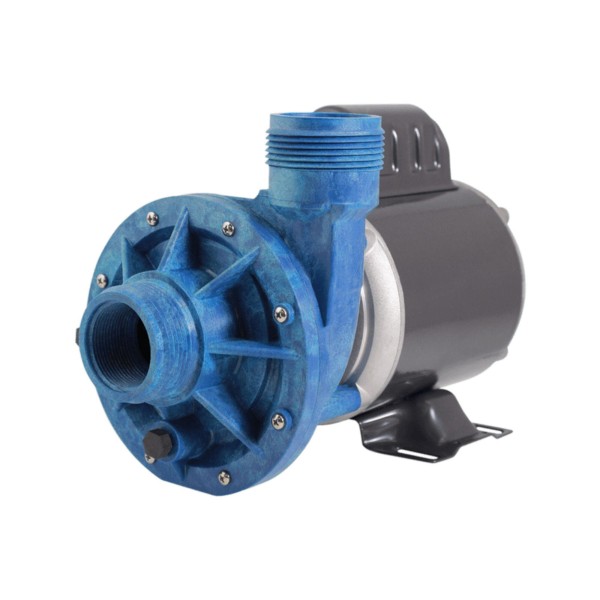

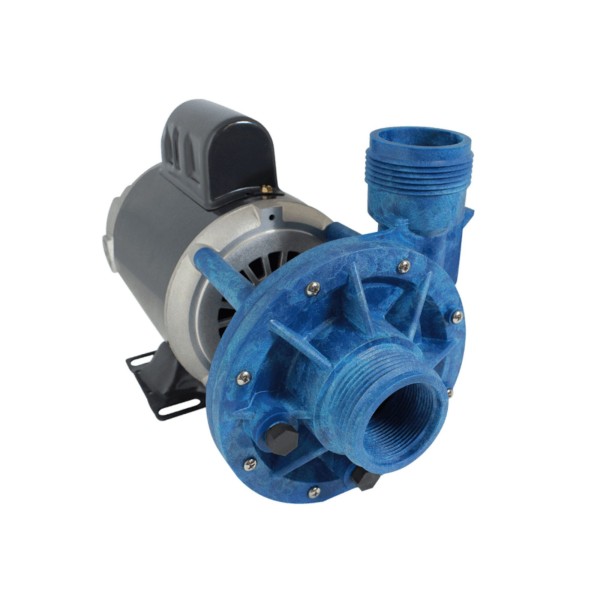

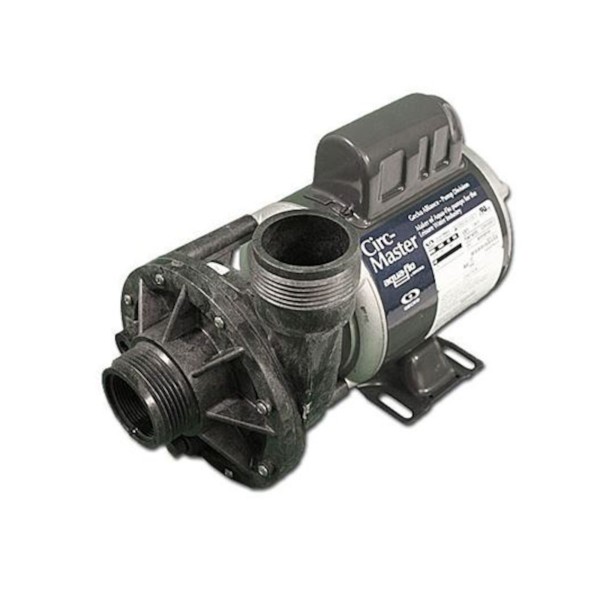

CMHP Circulation Pump
Going strongly against the flow
Circ-Master hp/cp pump, designed exclusively for spas, takes 24-hour filtration to a new level, delivering the highest GPM of any recirculation pump on the spa industry. Aqua-Flo by Gecko's Circ-Master pumps are powerful, efficient, high density filtration and quiet.
Additional Information
Features-
-Ideal for 24/7 circ pump applications
-Single speed
-Flow rate up to 40 GPM
-1 ½ " intake and discharge
-Wet end available in center or side discharger configuration
-Ajustable volute with 4 different positions
-Up to 3 drain plugs available
-115V or 230V
-48 frame
Specifications-
Horsepower- 0.13
Voltage- 230
Amps- 0.7
Intake and Discharge- 1-1/2" MBT
Flow Rate-
Frame Size- 48Y
Does not include pump cord. Please see suggested accessories below.
**Pump & motor manufacturers reserve the right to change motors on pumps or style of motor without notice. Motors shown may differ from current stocked product. Functionality remains the same**
Alternate Part Numbers
02093001-2010 1-00-0204 02093695-2 02410512-2 AF020930012010 02093001-2 02093001-2510 02093002-2 02093002-2510 02093003-2010 02093003-2510 02093004-2 02093004-2510 02093006-2 02093006-2010 02093007-2 02093007-2000 02093007-2500 02093007-3500 02093400-2000 02093400-2010 02093400-2310 02093400-2510 02093448-2010 02093466-2000 02093492-2000 02093492-2010 02093634-2 02093634-2010 02093638 02093638-2 02093638-2010 02093639-2 02093639-2000 02093639-2010 02093639-2300 02093656-2 02093658-2 02093678-2 02093697-2 02093759-2 02093760-2 02403004-2 02403466-2 02403649-2 02403695-2 02405000-2500 02407002-2 02407512-2500 02407670-2510 02408492-2 02408492-2510 02410002-2 02410388-2 024110512-2 02593001-2010 104440 6000-907 CMHP550112 K55MYGRD-8367 14154 6500-907 34-402-1140 02418000-2510 02093492-2000 02093492-2010 02093634-2010 02093634-2510 02093638-2010 02093639-2000 02093639-2010 02093639-2300 02093639-2500 02093639-2510 02093639-3010 02093639-3510 02093640-2000 02093645-3510 02093646-2510 02093646-3510 02093648-2010 02093649-2000 02093651-2020 02093658-2010 02093658-2510 02093658-2520 02093658-3510 02093670-2000 02093670-2010 02093670-2110 02093670-2300 02093670-2310 02093670-2500 02093670-2510 02093672-2000 02093674-2000 02093675-2020 02093676-2020 02093677-2020 02093677-2120 02093677-2520 02093678-2020 02093678-2500 02093678-2520 02093692-2010 02093692-2110 02093692-2510 02093693-2010 02093694-2010 02093695-2000 02093695-2100 02093695-2300 02093695-2500 02093697-2000 02093697-2010 02093697-2500 02093697-2510 02093759-2000 02093759-2100 02407003-2010 02407003-2510 02407427-2500 02407670-2510 02410002-2010 02410002-2310 02410002-3510 02410389-2510 02410427-2500 02410512-2500 02410512-3500 02410672-2510 02093016-2510 02093638-2510 02093021-2510 02093760-2100 02093017-2510 02093013-2510 02093014-2510 02093018-2510 02093012-2510 02093012-2010 02093020-2510 02093019-2510 02093015-2510 02407005-2510 02418000-2010 02093022-2510 02418003-2510 02418003-2010 02093006-2510 02093672-2010 02405000-2500 02407000-2010 02407436-2500 02407512-2500 02408492-2510 02410001-2510 02410007-2510 02410008-2510 02410011-2510 02410012-2510 02410388-2010 02410388-2510 02410436-2500 02410648-2030 02410648-2530 02410791-2000 02410991-2010 02410991-2310 02410991-2510 02475369-2010General
- Reference 02093001-2010
- In stock 8 items
