Pump, Sundance, 2.5HP, 230V, 12.0/4.4 Amp, 2-Speed, 2"MBT, 56-Frame, W/O Base

Product details

Jet Pump
Everything you need..

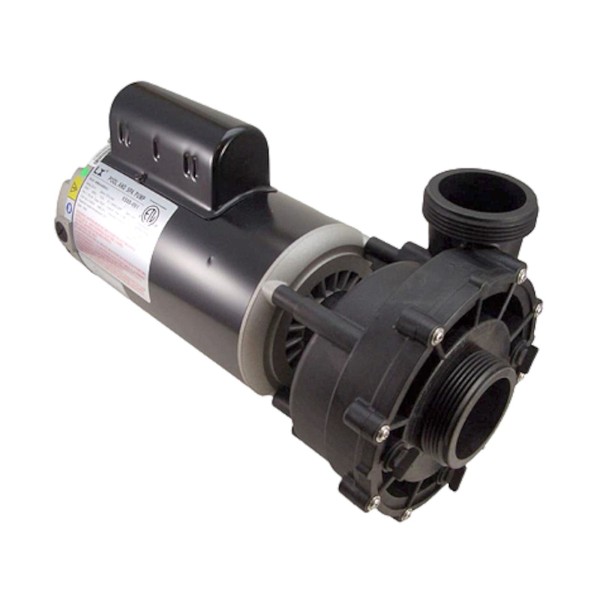

56 Frame Complete Intertek Pump that fits Jacuzzi Premium or Sundance brand Hot Tubs that have a band style base mount. These pumps usually have the part number WUA-400-II, and then 6500-367 or 6500-365 or 6500-363 on the label. It is about 7 1/4" across the face of the pump, it measures about 7 3/8" from the bottom to the top of the pressure side of the volute, it also measures 15" from the back to front edge. Intake and discharge size are 2" x 2" but measure 3" from the edge of the thread to the edge of the thread.

Additional Information

**PRODUCT NOTIFICATION**


Temporary Product Change - 5/14/2021


A temporary supply delay for part number 6500-367 (2.5 HP 2-speed pump motor) has triggered a need to substitute the original LX pump assembly. For a limited time, we will be using an equivalent pump manufactured by Balboa. This replacement pump includes a mounting bracket and does not use the separate mounting bracket that is normally installed. This pump may also be used to fill service orders during this limited shortage.

Specifications-


Horsepower- 2.5


Voltage- 230


Amps- 12/4.4


Intake and Discharge- 2" MBT


Frame Size- 56Y


NO PUMP BASE

**Pump & motor manufacturers reserve the right to change motors on pumps or style of motor without notice. Motors shown may differ from current stocked product. Functionality remains the same**

Alternate Part Numbers

SD6500-367 WUA400-II SD6500367 34-343-1040

General

  • Reference 6500-367
