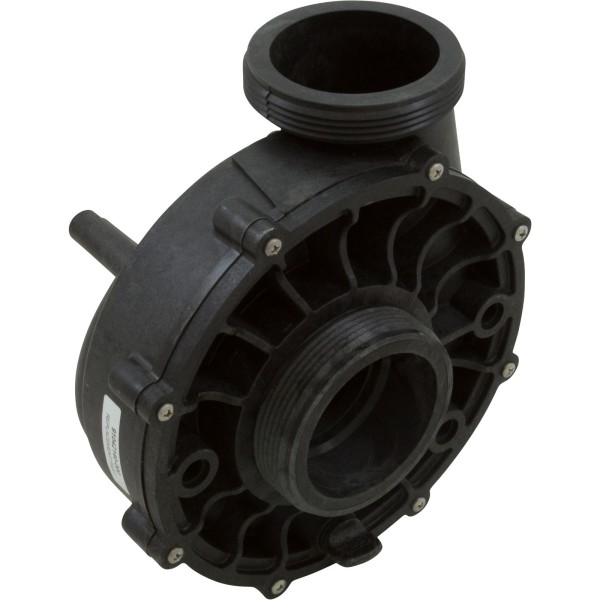

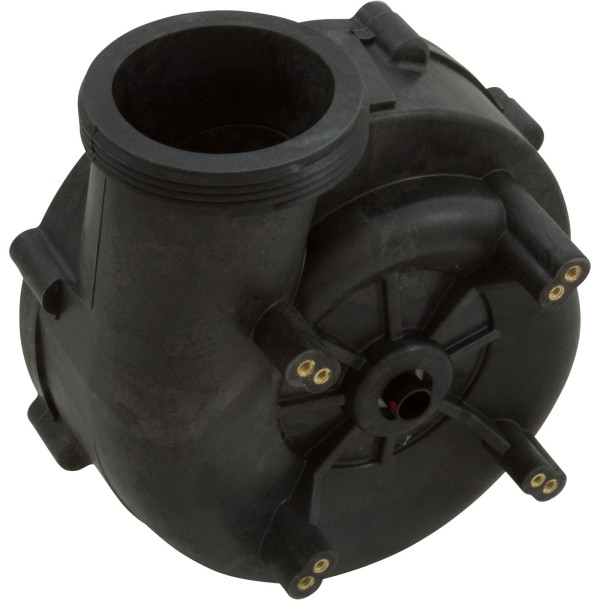

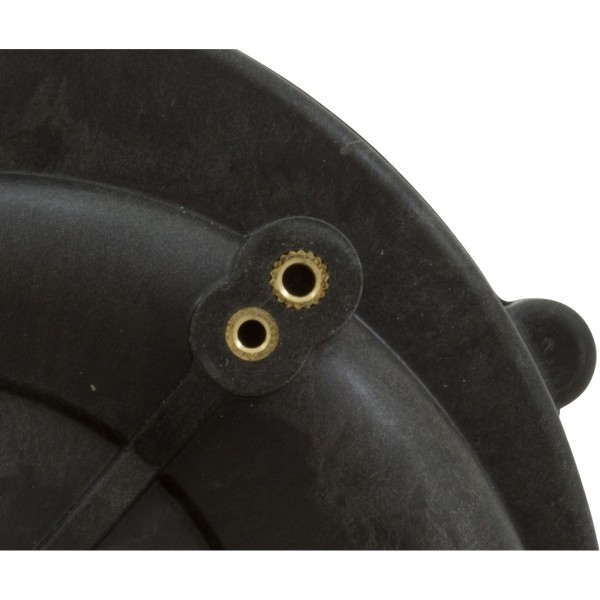

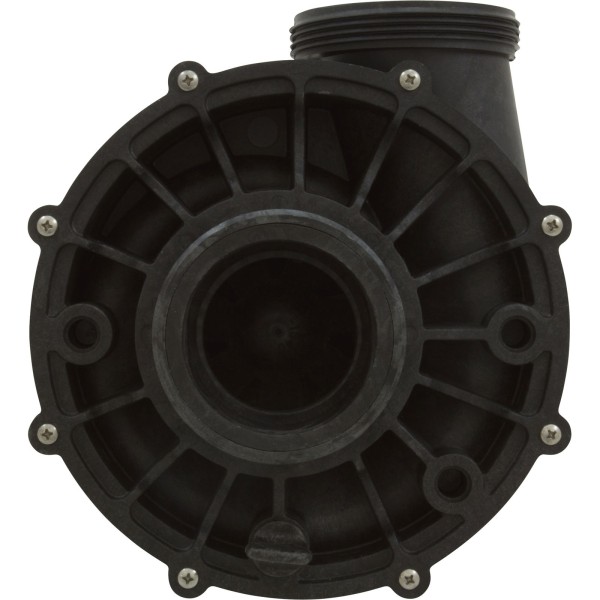

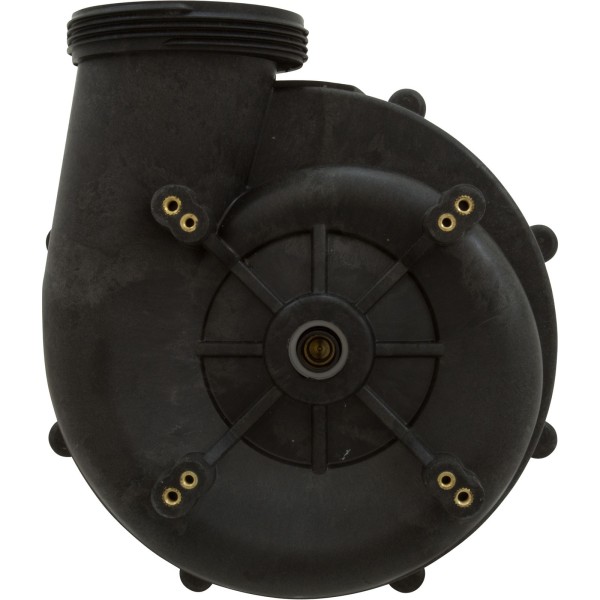

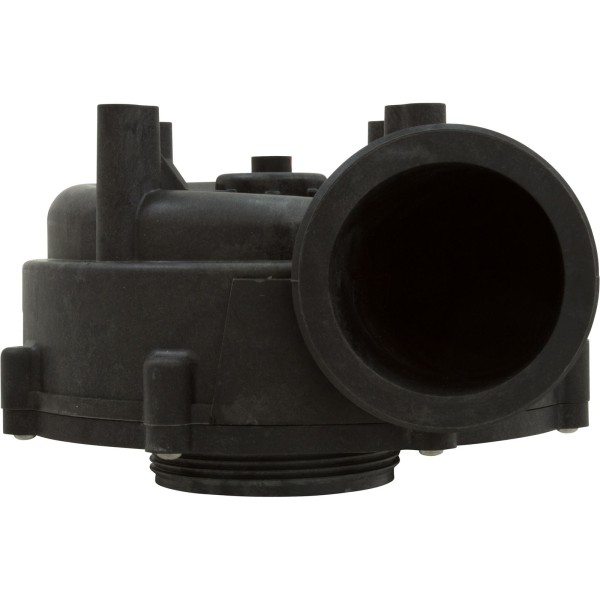

Wet End, Gecko AquaFlo XP3 4.0hp 2-1/2"mbt 6.3"dia 48/56fr : 91042140-000

Wet End, Gecko AquaFlo XP3 4.0hp 2-1/2"mbt 6.3"dia 48/56fr AquaFlo/Gecko Wet EndSide discharge, 2-1/2"mbt suction/discharge, 48/56 frame wet end for XP3 pump. This wet end is used with a 4.0hp, 48 or 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately. Manufacturer: AquaFlo/Gecko Pump Model: Flo-Master XP3 Motor Frame: 48 Frame Thru-Bolt, 56 Frame Thru-Bolt Drain Plug Location: 3,4,6,9 o`clock Suction Style: Center Suction Connection Type: Male Buttress Thread (mbt) Suction Pipe Size: 2-1/2"Discharge Style: SideDischarge Connection Type: Male Buttress Thread (mbt)Discharge Pipe Size: 2-1/2"Horsepower: 4.0hpVolute Fastening Type: 8 ScrewsReplaces _91042140-000,315313,5121-79,AF91042140000,
