Wet End, WW Executive 5.0hp 2-1/2"mbt x 2"mbt 48fr : 310-1830

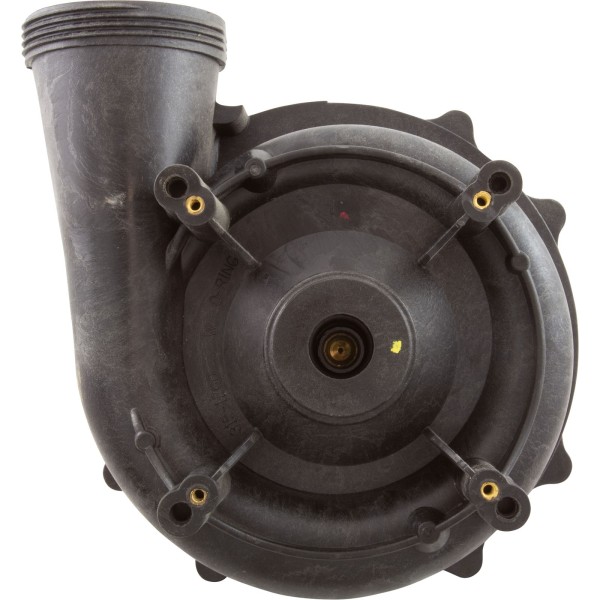

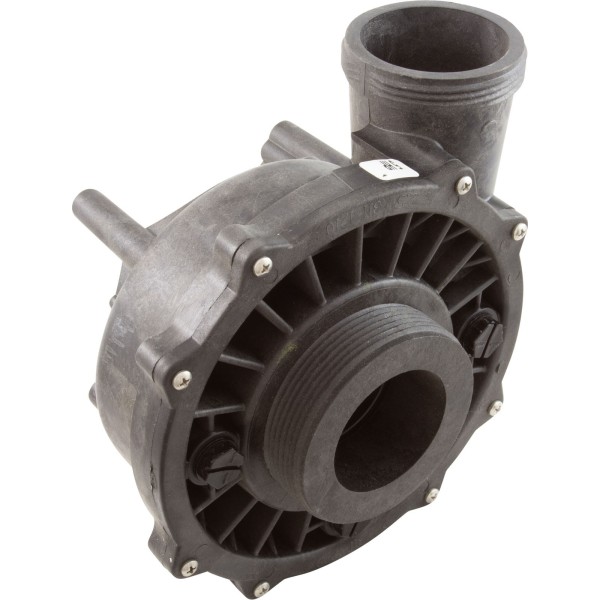

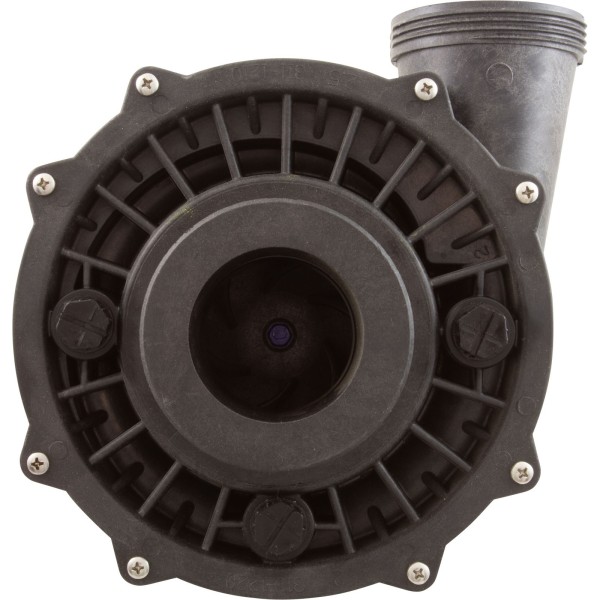

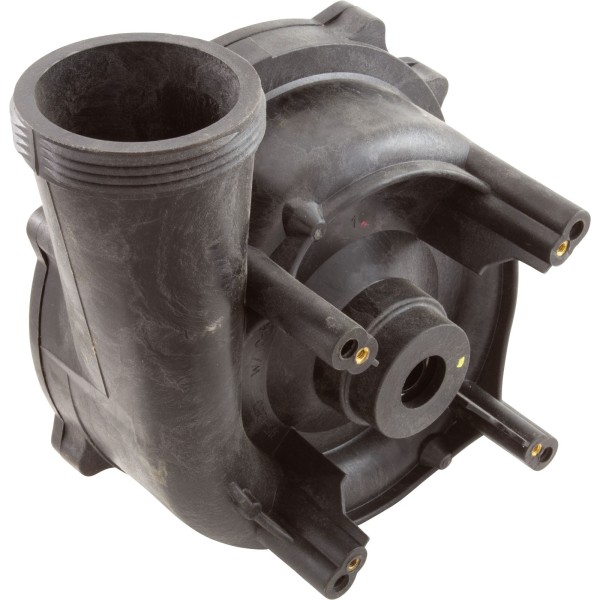

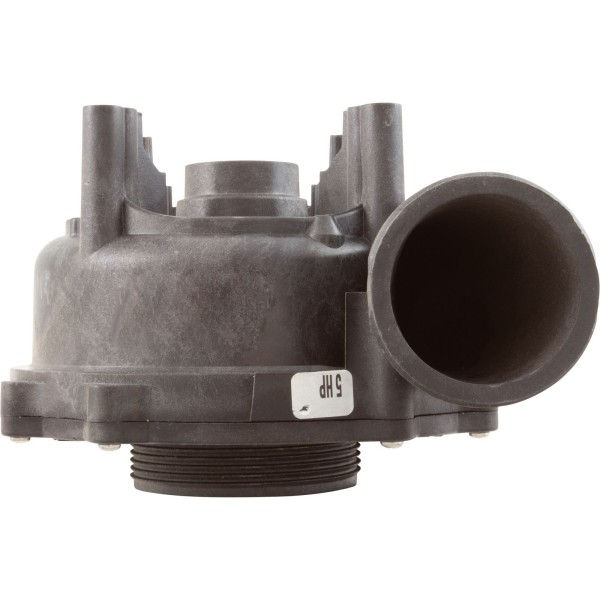

Wet End, WW Executive 5.0hp 2-1/2"mbt x 2"mbt 48fr Waterway Executive Wet End Side discharge, 2-1/2"mbt suction x 2"mbt discharge, 48 frame wet end for the Waterway Executive pump. This wet end is used with a 4.0hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately. Manufacturer: Waterway Pump Model: Executive Motor Frame: 48 Frame Thru-Bolt Drain Plug Location: 3,6,9 o`clock Suction Style: Center Suction Connection Type: Male Buttress Thread (mbt) Suction Pipe Size: 2-1/2"Discharge Style: SideDischarge Connection Type: Male Buttress Thread (mbt)Discharge Pipe Size: 2"Horsepower: 5.0hpVolute Fastening Type: 8 Screws Replaces 310-2860,5039-250,806105062628,905473,WW3101830,
