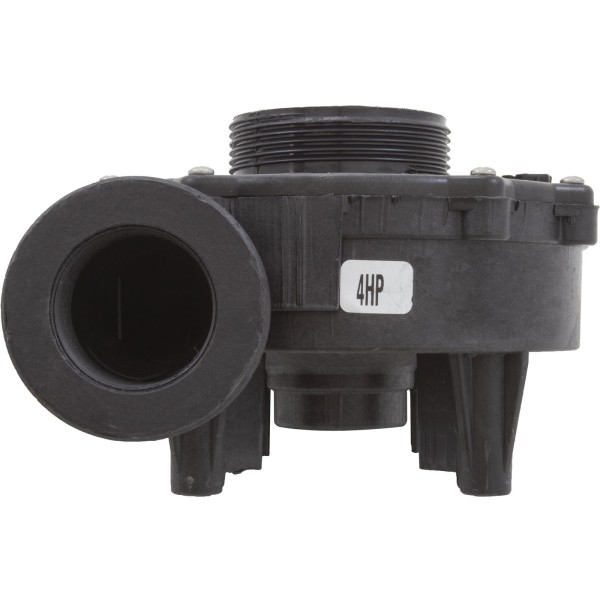

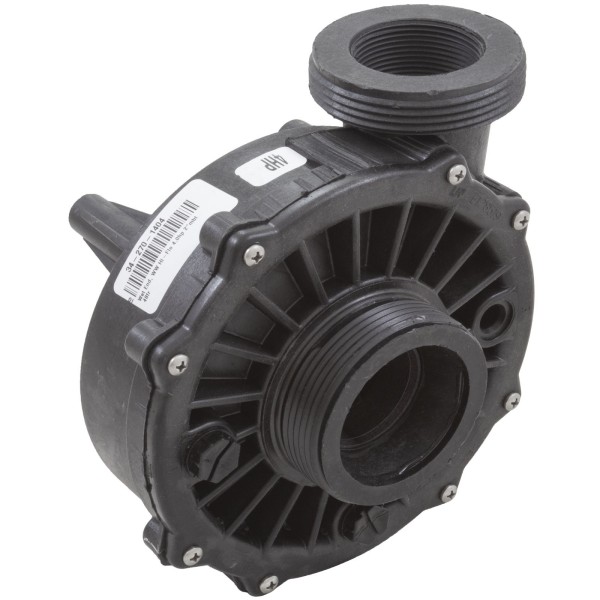

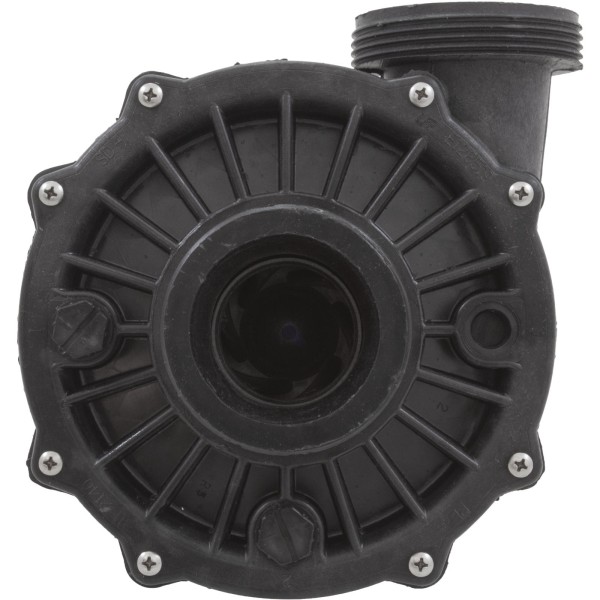

Wet End, WW Hi-Flo 4.0hp 2"mbt 48fr : 310-1160SD

Wet End, WW Hi-Flo 4.0hp 2"mbt 48fr Waterway Hi-Flo Wet End Side discharge, 2"mbt suction/discharge, 48 frame wet end for the Waterway Hi-Flo pump. This wet end is used with a 4.0hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately. Manufacturer: Waterway Pump Model: Hi-Flo Old Style Motor Frame: 48 Frame Thru-Bolt Drain Plug Location: 3,6,9 o`clock Suction Style: Center Suction Connection Type: Male Buttress Thread (mbt) Suction Pipe Size: 2"Discharge Style: SideDischarge Connection Type: Female Pipe Thread (fpt), Male Buttress Thread (mbt)Discharge Pipe Size: 2"Horsepower: 4.0hpVolute Fastening Type: 8 Screws Replaces 5032E,600015,806105061782,WWP-10-1457,WWP3101160SD,
