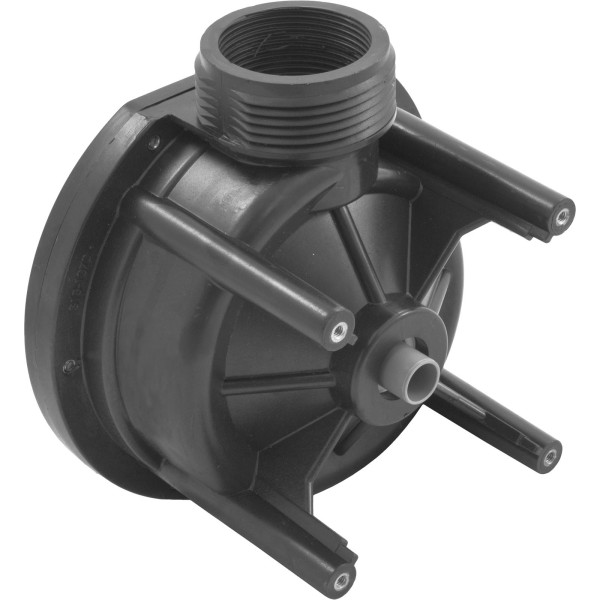

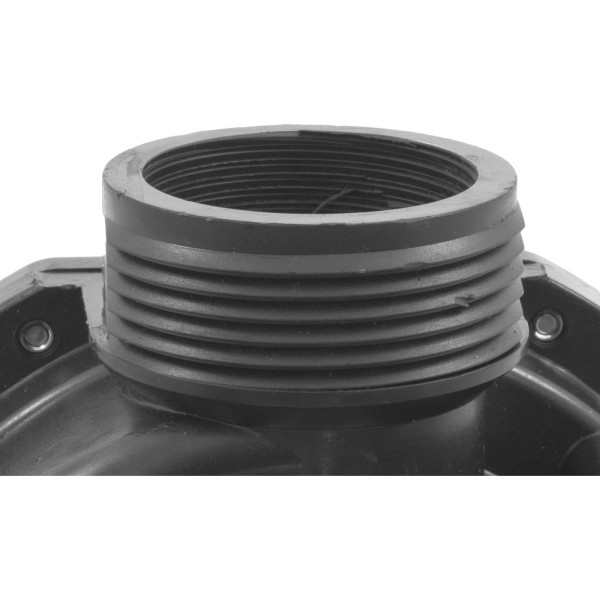

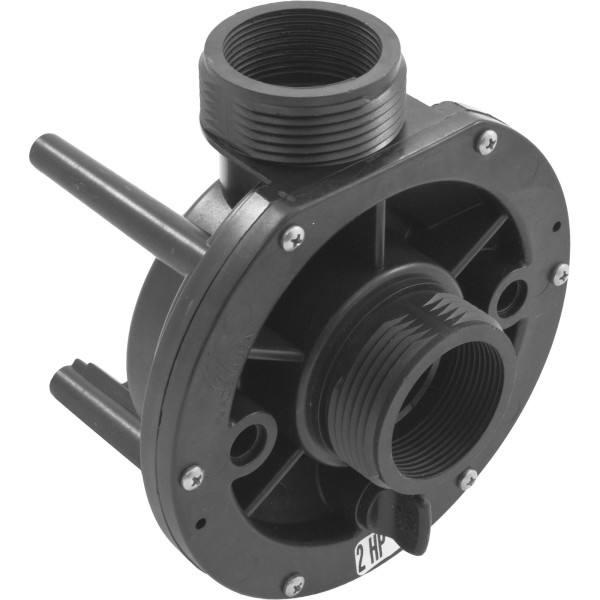

Wet End, WW E-Series 2.0hp 1-1/2"mbt/fpt 48fr : 310-1141

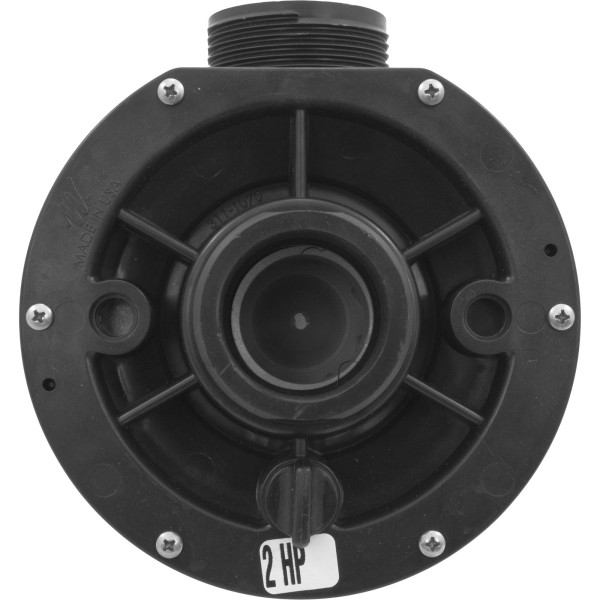

Wet End, WW E-Series 2.0hp 1-1/2"mbt/fpt 48fr The Waterway center discharge wet end has been discontinued and replaced with the E-Series Center Discharge wet end by the manufacturer. Please be sure which wet end you have as the parts are not interchangeable. The easiest way to identify which wet end you have is to count the number of screws on the faceplate. The old center discharge pump had a 4-screw faceplate and the new E-Series has a 6-screw faceplate. If you need parts for the old center discharge wet ends, you will need to replace the whole wet end with a new E-Series Center Discharge wet end. Manufacturer: Waterway Pump Model: E-Series Center Discharge Motor Frame: 48 Frame Thru-Bolt Drain Plug Location: 3,6,9 o`clock Suction Style: Center Suction Connection Type: Female Pipe Thread (fpt), Male Buttress Thread (mbt) Suction Pipe Size: 1-1/2"Discharge Style: CenterDischarge Connection Type: Female Pipe Thread (fpt), Male Buttress Thread (mbt)Discharge Pipe Size: 1-1/2"Horsepower: 2.0hpVolute Fastening Type: 6 ScrewsReplaces 222889,310-1141E,310-5200,310-5200B,310-8240,5030-54,5030E,600031,806105061683,806105063502,WW3101141,WWP-10-1438,WWP3101141
