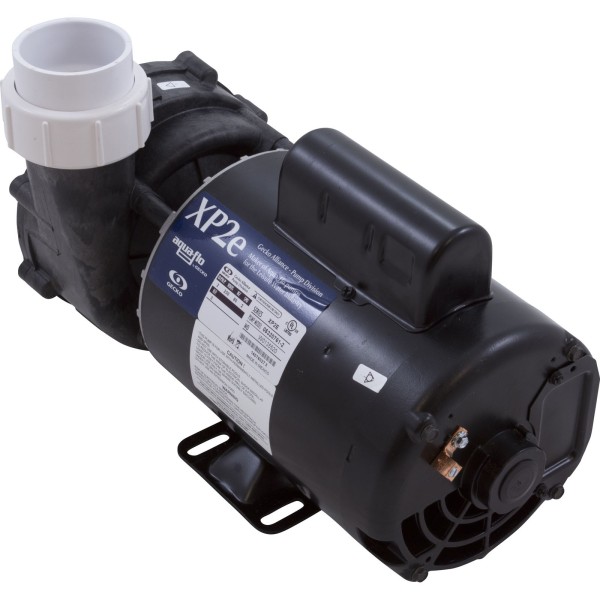

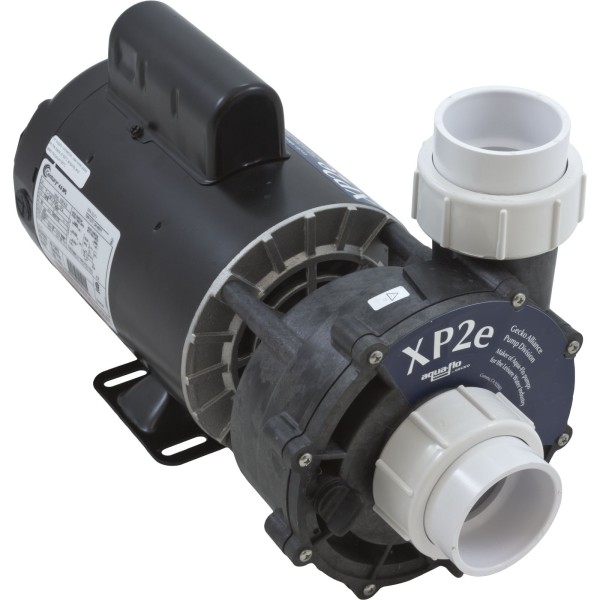

Pump, Aqua Flo XP2e, 2.0hp, 230v, 2-Spd, 56fr, 2", OEM : 05320761-2040

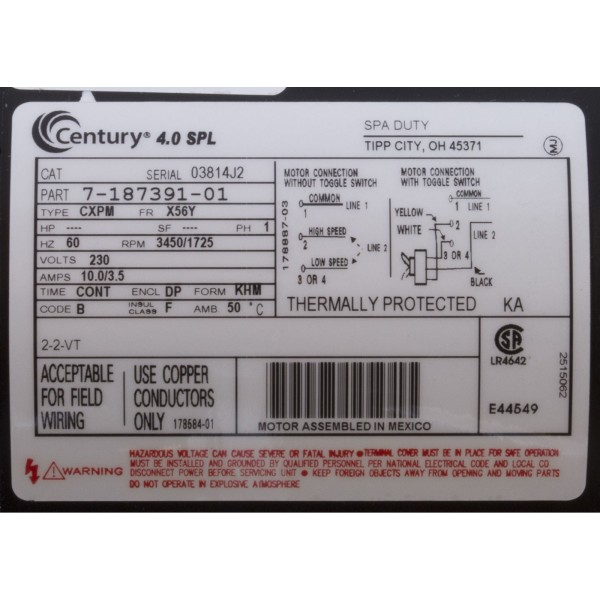

Pump, Aqua Flo XP2e, 2.0hp, 230v, 2-Spd, 56fr, 2", OEM Aqua-Flo by Gecko's Flo-Master® XP2e pump is the energy conscious offering within its high performance spa pump line. It's designed for today's large, heavily jetted spas requiring increased flow. The XP2e pump fits within the same envelope as the original XP2 pump, yet provides greater flow while improving the overall energy efficiency of the spa. Spa Pump Features: Fine tuned impeller that moves water through the system with maximum performance 2" intake and discharge 56-frame motor for added strength Thermally protected to extend life expectancy of motor Continuous duty horsepower of 1.5hp, 2.0hp, 3.0hp, 4.0hp, and 5.0hp. Single or dual speed (SEE THE AVAILABLE STYLES TAB) California Title 20 Compliant In 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp. Gecko uses both Emerson & Century motors which have subtly different ratings. The listed amperage and motor manufacturer of the pump you receive MAY differ from the one you are trying to replace. To find the correct replacement pump, match the amperage as closely as possible (not necessarily identical) and then check the horsepower – See note above. Motor Voltage: 230v Speed: 2 Speed (2-Spd) Motor Amperage/Wattage: 10.0A/3.5A Horsepower: 2.0hp Manufacturer: AquaFlo/Gecko Pump Model: XP2e Suction Pipe Size: 2"Suction Connection Type: Male Buttress Thread (mbt)Suction Style: CenterDischarge Pipe Size: 2"Discharge Connection Type: Male Buttress Thread (mbt)Discharge Style: SideMotor Frame: 56 Frame Thru-BoltDrain Plug Location: 4,6,9 o`clock Replaces 05220001-2040,05220001-2340,05220002-2040,05220002-2340,05220400-7040,05220737-2000,05315000-7340,05315001-7370,05315761-2000,05315761-2040,05320001-7340,05320003-2040,05320003-2340,05320004-2040,05320004-2340,05320005-1340,05320008-2300,05320008-2340,05320008-7300,05320009-7340,05320011-7040,05320306-1340,05320761-2000,05325000-7340,05325001-2300,05325002-2340,05325003-2300,05325450-2340,05325761-2000,05325761-2300,05720000-7340,05720001-1340,05720003-7340,05725001-2040,05725002-2040,05725002-2340,05725003-2340,05725004-2000,05725004-2300,05725004-2340,05725005-2340,05725006-7340,05725007-2361,05725008-2370,05725009-7370,05725354-2340,05725354-2370,05725363-2370,05725414-2370,05815000-1040,05815000-1340,05815001-7340,05815002-7340,05815003-7340,05815004-1040,05820000-1340,05820000-2340,05820001-2300,05820002-2300,05820003-2040,05820003-2340,05820004-7340,05820005-7340,05820006-7340,05820007-1340,05820397-7340,05820782-2340,07323001-2,07323601-2,187391,29516CH,301779,34-402-5250,5121-509,632-0022,7-187391-01,IMP9089X,PR400-5,PRC504,PRC505,PRC9089X,PUM22000951,PUM22901000,R63MWDLY-173,R63MWDPS-0230
