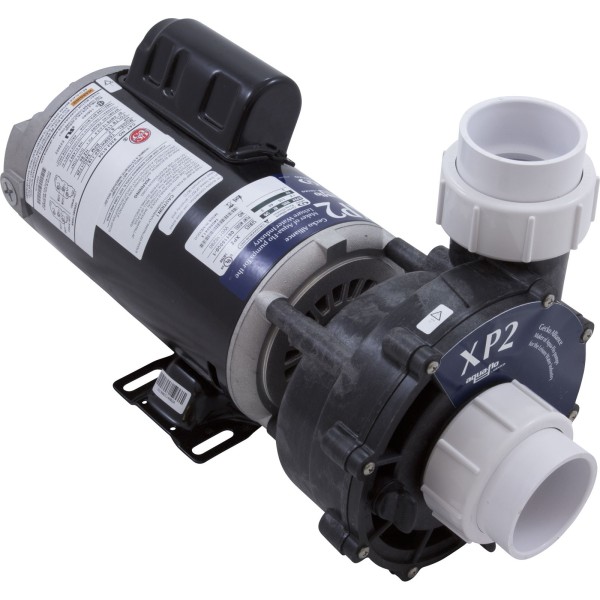

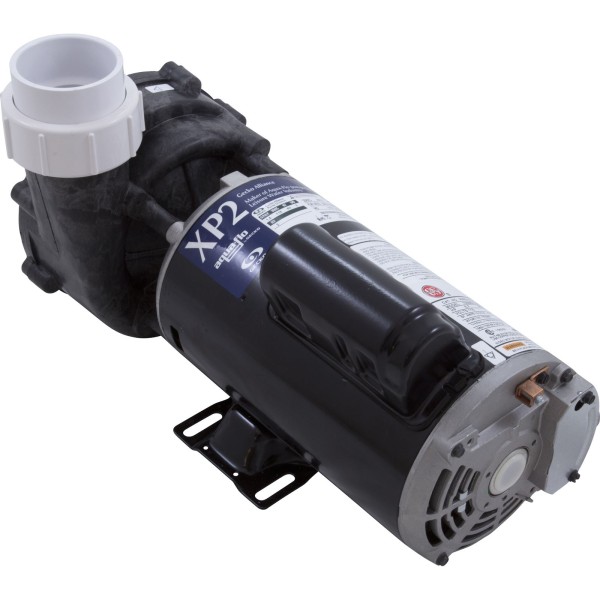

Pump, Aqua Flo XP2, 1.5hp, 115v, 2-Spd, 48fr, 2", OEM : 06115000-1040

Pump, Aqua Flo XP2, 1.5hp, 115v, 2-Spd, 48fr, 2", OEM Aqua-Flo by Gecko's original offering in this high performance spa line, the "XP2", offers high performance while utilizing the same space requirements as most other applications. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, heavily jetted spas requiring increased flow.Spa Pump Features: Fine tuned impeller that moves water through the system with maximum performance 2" suction and discharge 48 and 56 frame versions Thermally protected to extend life expectancy of motor Multiple drain locations Continuous rated horsepower of 1.5hp, 2.0hp, 2.5hp and 3.0hp (SEE THE AVAILABLE STYLES TAB)Note: Due to a design change in the current XP2/XP2e pump wet ends, face plate or volute replacement is not suggested. Instead, replace the wet end to avoid issues with how it fits.California Title 20 CompliantIn 2012, the manufacturer changed the way Aquaflo pumps are rated. These pumps are now assigned both an operational horsepower (ohp), and a total horsepower (thp) rating. Previous versions of these pumps used only the operational horsepower. If you are replacing an older Aquaflo pump, be sure to match the operational hp rating rather than the total hp. Motor Voltage: 115v Speed: 2 Speed (2-Spd) Motor Amperage/Wattage: 13.3A/4.1A Horsepower: 1.5hp Manufacturer: AquaFlo/Gecko Pump Model: XP2 Suction Pipe Size: 2"Suction Connection Type: Male Buttress Thread (mbt)Suction Style: CenterDischarge Pipe Size: 2"Discharge Connection Type: Male Buttress Thread (mbt)Discharge Style: SideMotor Frame: 48 Frame Thru-BoltDrain Plug Location: 4,6,9 o`clockReplaces 05015500-2000,05115002-2300,05115004-2000,05115004-2300,05115005-2040,05115005-2340,05115007-2340,05115008-2340,05115008-5340,05115009-2340,05215000-7340,05517000-2340,05615003-2000,05615003-2300,05615004-2340,05615005-2340,05615007-2300,05615008-2340,05615316-1300,05615316-1340,05615316-2300,05615316-2340,05615319-2040,05615319-2300,05615319-2340,05615319-2381,05617001-2300,05617001-2340,05617002-2300,05617003-2300,05617004-2300,05617421-2340,05815510-2340,06614000-5,06617763-2,301631,5121-316,PRC9121X,PUM22000045,R55MWFBH-0279
