Pump, WW Exec, 5.0hp, 230v, 1-Spd, 56fr, 2", OEM : 3712021-1D

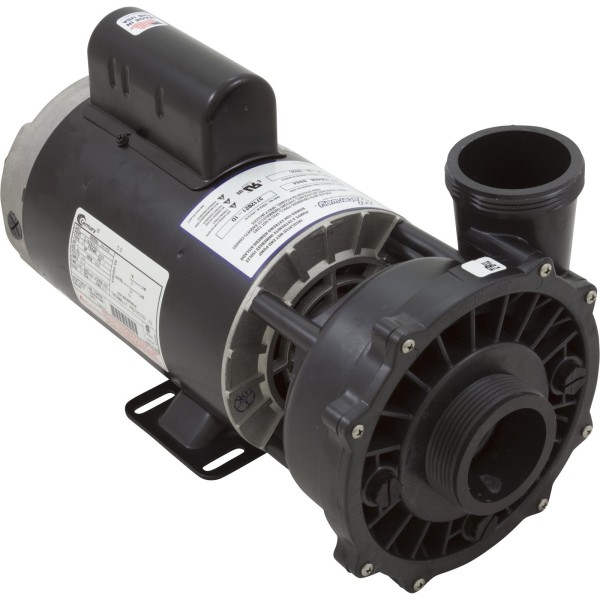

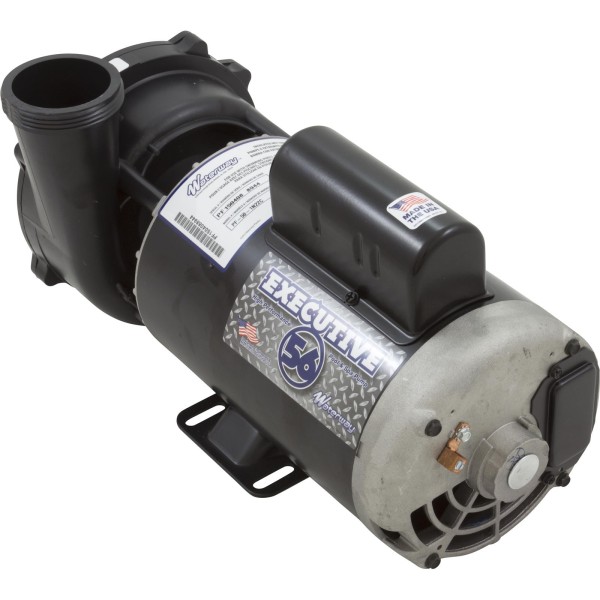

Pump, WW Exec, 5.0hp, 230v, 1-Spd, 56fr, 2", OEM The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. The dual speed motors have insulated windings for increased efficiency and large, highly versatile 6-1/2" diameter wet end for higher head pressure. A split capacitor (start and run) allows for less energy consumption.Spa Pump Features: Executive wet end designed specifically for 56-frame motors 56-frame motor for added strength, cooler operating temperature, and longer motor life Large 6-1/2" diameter wet end for higher head pressure 2" intake for improved flow performance and reduced noise Wet end can be rotated for easy installation Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life Two speed motors have four sets of insulated windings for increased efficiency Dimensions (H x W x L): 9.08" x 8.05" x 14.775" Available in 1 to 5Hp and in single or dual speed (SEE THE AVAILABLE STYLES TAB) Motor Voltage: 230v Speed: 1 Speed (1-Spd) Motor Amperage/Wattage: 16.4A Horsepower: 5.0hp Manufacturer: Waterway Pump Model: Executive Suction Pipe Size: 2"Suction Connection Type: Male Buttress Thread (mbt)Suction Style: CenterDischarge Pipe Size: 2"Discharge Connection Type: Male Buttress Thread (mbt)Discharge Style: SideMotor Frame: 56 Frame Thru-BoltDrain Plug Location: 3,6,9 o`clockReplaces 0-187970-01,304856,3712021,3712021-0TDY,3M12021,5039-501,K63MWENF-4732,
