Impeller, Acura Spa Aquaheat Plus/Magnaflow, 4.5 Horsepower : 824-M

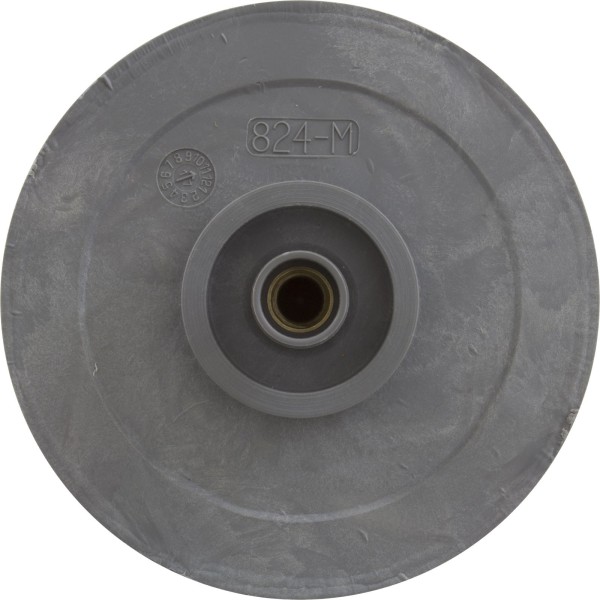

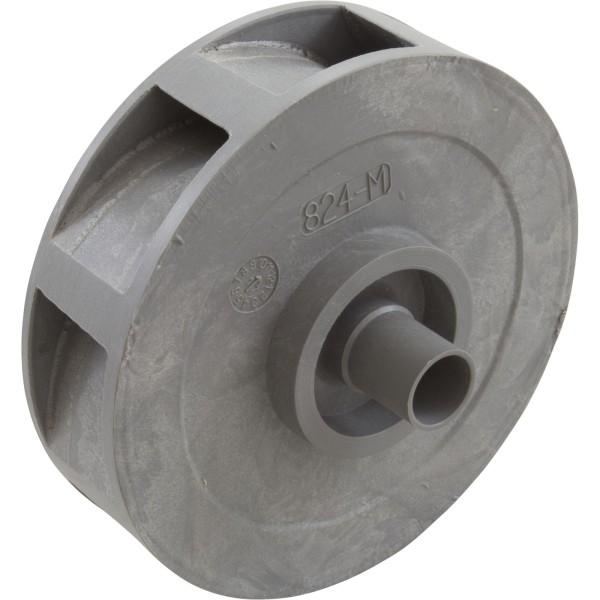

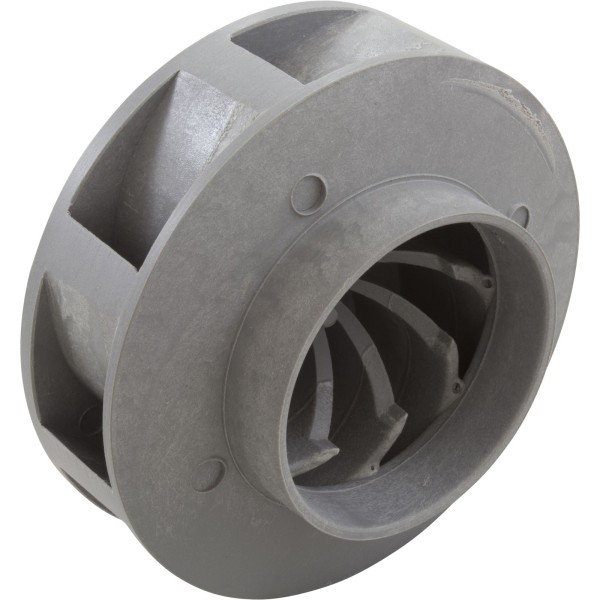

Impeller, Acura Spa Aquaheat Plus/Magnaflow, 4.5 Horsepower Acura Spa Pump ImpellerClosed face impeller made for the Aquaheat Plus and Magnaflow spa pumps by Acura Spa. Rated at 4.5hp, it is used in an Aquaheat Plus and/or Magnaflow pump wet end, and must be installed on a 4.5hp (or greater) thru bolt motor. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-1/8" Vane Width ID: 7/8" Eye Diameter OD: 2-7/16" Eye Length: 1/2" Impeller Width OD: 1-1/8" Seal Seat Depth: 5/16"Shaft Length: 9/16"Shaft Diameter OD: 5/8"Seal Seat Diameter OD: 1-9/16"Manufacturer: Acura SpaPump Application: Aquaheat Plus, MagnaflowReplaces 5171-06,625176,
