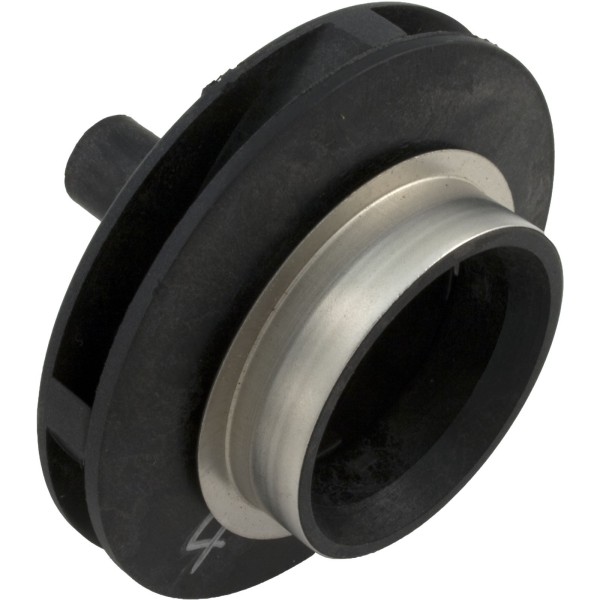

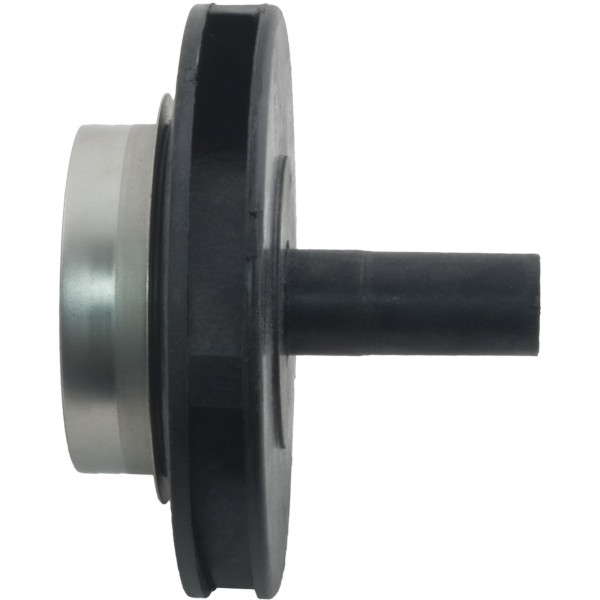

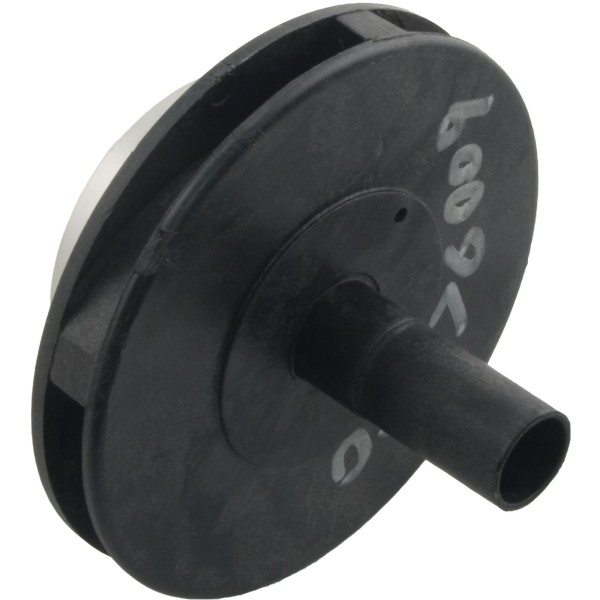

Impeller, Carvin LC/SharkJet, 0.5/0.75 Horsepower : 05-3760-09-R

Impeller, Carvin LC/SharkJet, 0.5/0.75 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the LC series spa pump by Jacuzzi. Rated at 1/2hp, it is used in multiple Jacuzzi model pumps, but mainly used in the LC series pump wet end, and must be installed on a 1/2hp (or greater) thru bolt motor. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 3-7/16" Vane Width ID: 5/16" Eye Diameter OD: 2" Eye Length: 1/2" Impeller Width OD: 1/2" Seal Seat Depth: 1/32"Shaft Length: 1-7/16"Shaft Diameter OD: 5/8"Seal Seat Diameter OD: 1-11/16"Manufacturer: Jacuzzi/CarvinPump Application: L Series, SharkJet, UL Series Replaces 05-3760-09,05-3760-09-R000,05376009K,05376009R,5063-08,5063-08D,5063-08E,5376009,600059,
