Impeller, Carvin J-Series, 2.0 Horsepower : 05-3865-03-R

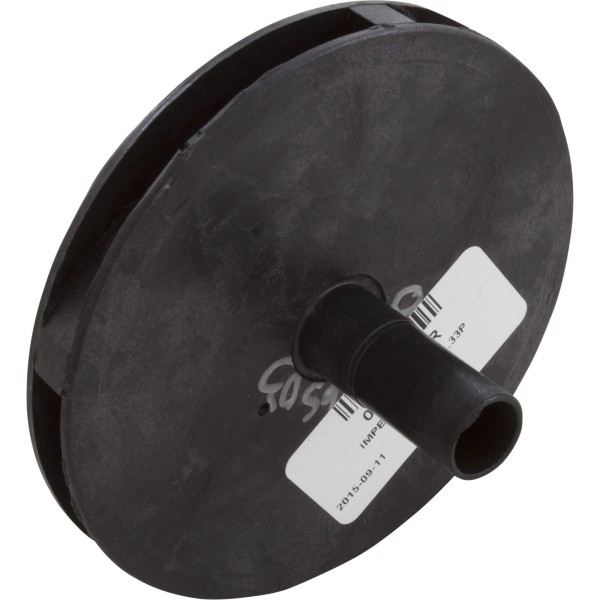

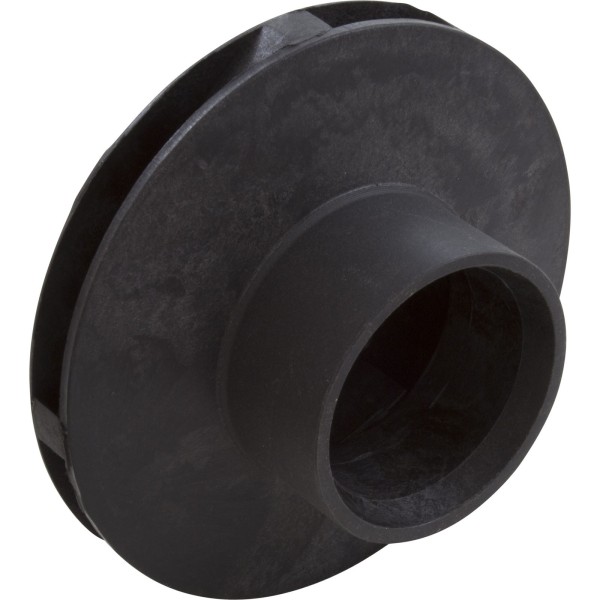

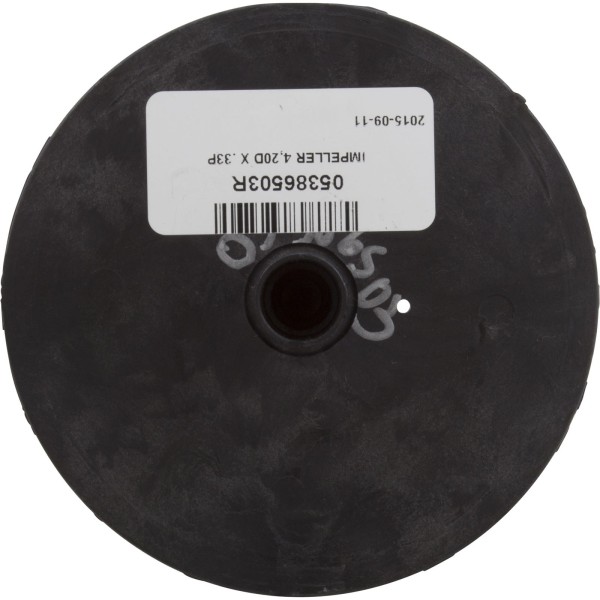

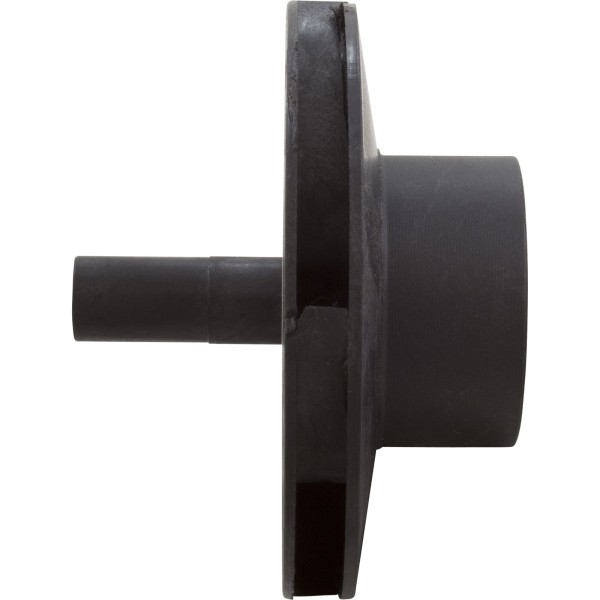

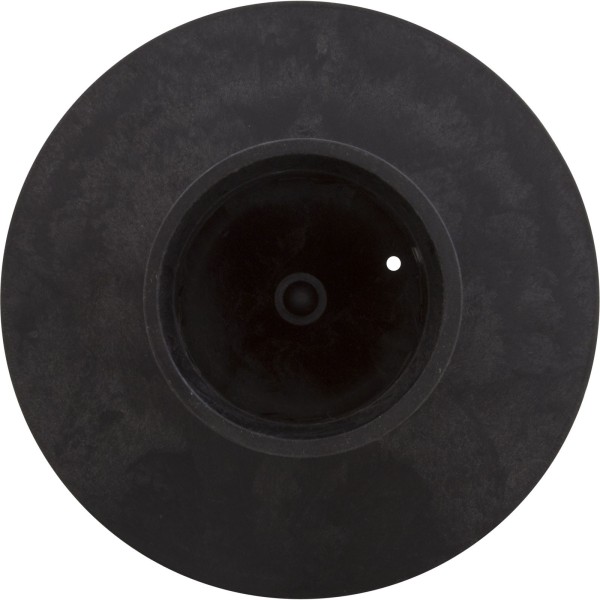

Impeller, Carvin J-Series, 2.0 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the J series spa pump by Jacuzzi. Rated at 2.0hp, it is used in a J series pump wet end, and must be installed on a 2.0hp (or greater) thru bolt motor. Also used in the JCM, K, and KM series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/16" Vane Width ID: 5/16" Eye Diameter OD: 2" Eye Length: 1" Impeller Width OD: 1/2" Seal Seat Depth: Shaft Length: 1-7/16"Shaft Diameter OD: 5/8"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: J Series, JCM Series, K Series, KM Series Replaces 05-3865-03,05386503R,5069-05C,5386503,601126,C145000,JAC-101-6203,
