Impeller, Carvin J-Series, 1.5 Horsepower, Uprated : 05-3864-04-R

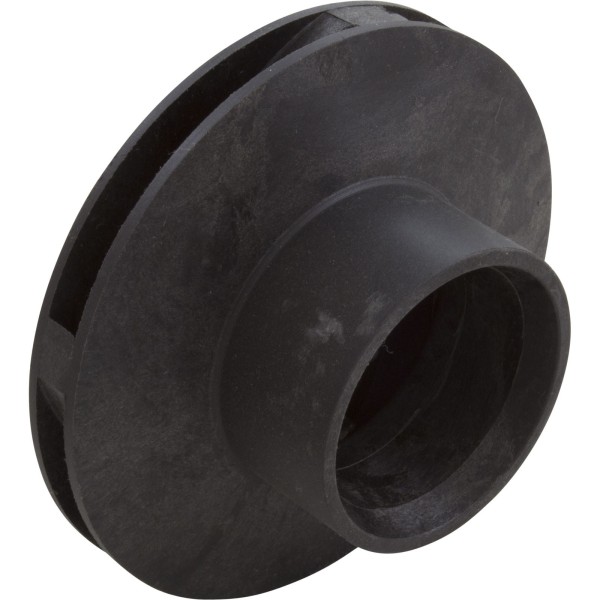

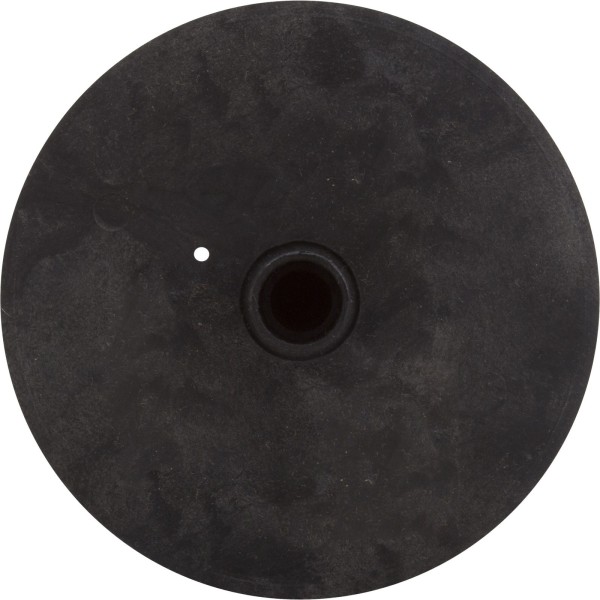

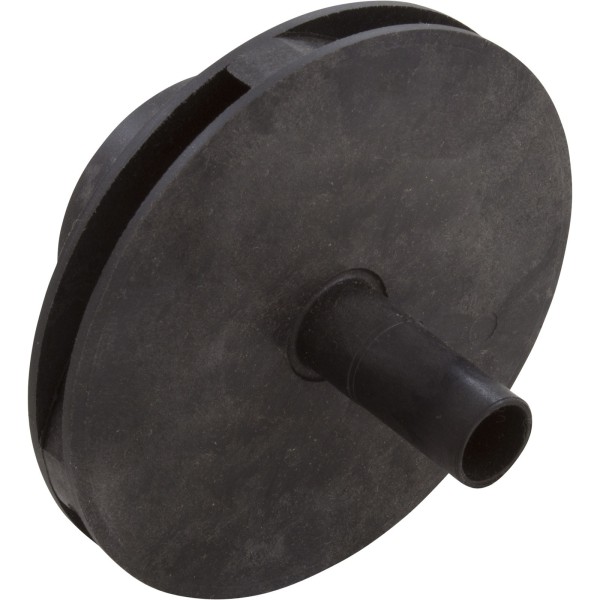

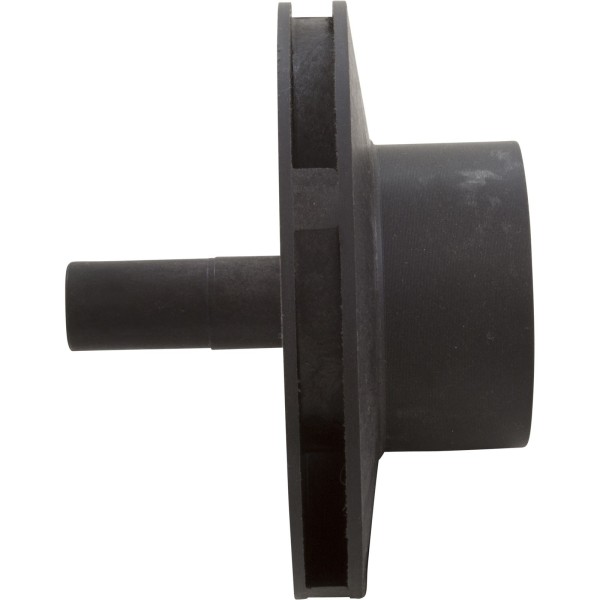

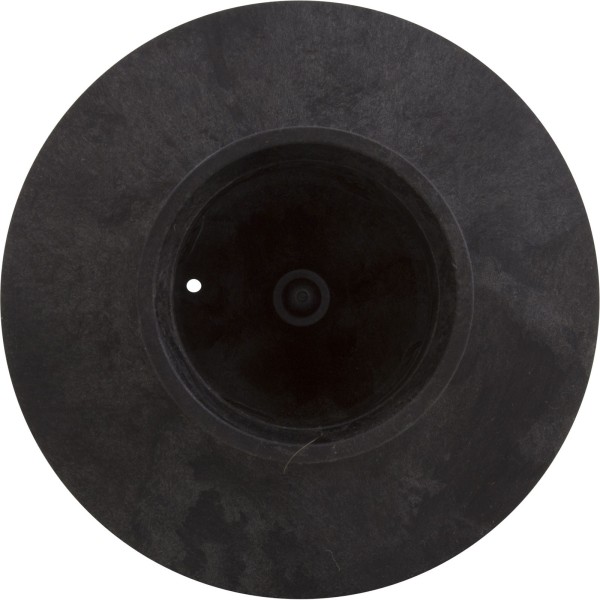

Impeller, Carvin J-Series, 1.5 Horsepower, Uprated Jacuzzi/Carvin Pump Impeller Closed face impeller made for the J series spa pump by Jacuzzi. Up-Rated at 1.5hp, it is used in a J series pump wet end, and must be installed on a 1.5hp (or greater) thru bolt motor. Also used in the JCM, K, and KM series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4" Vane Width ID: 1/4" Eye Diameter OD: 2" Eye Length: 1" Impeller Width OD: 7/16" Seal Seat Depth: Shaft Length: 1-7/16"Shaft Diameter OD: 5/8"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: J Series, JCM Series, K Series, KM Series Replaces 05-3864-04,05-3914-04,05386404R,5069-05B,5386404,601130,C117000,JAC-101-6263,
