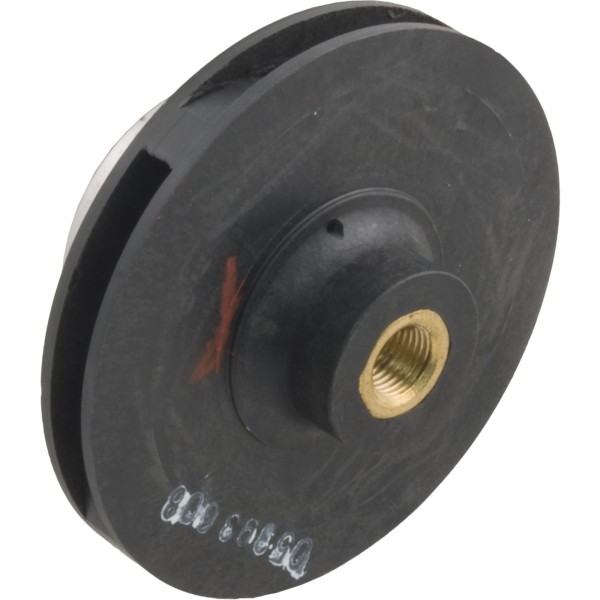

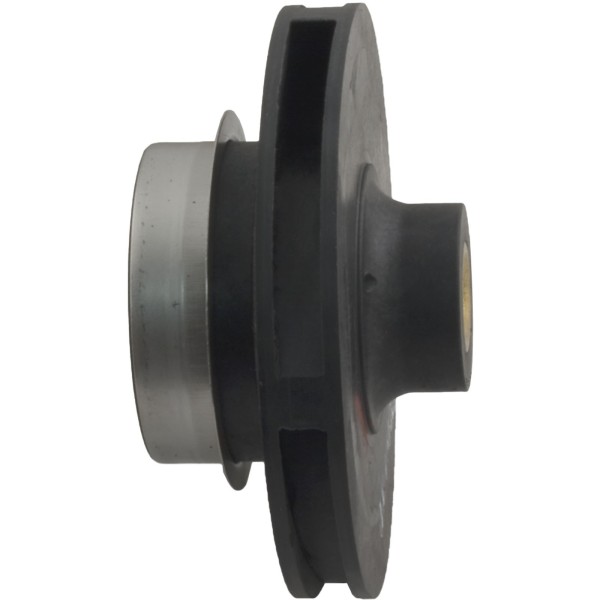

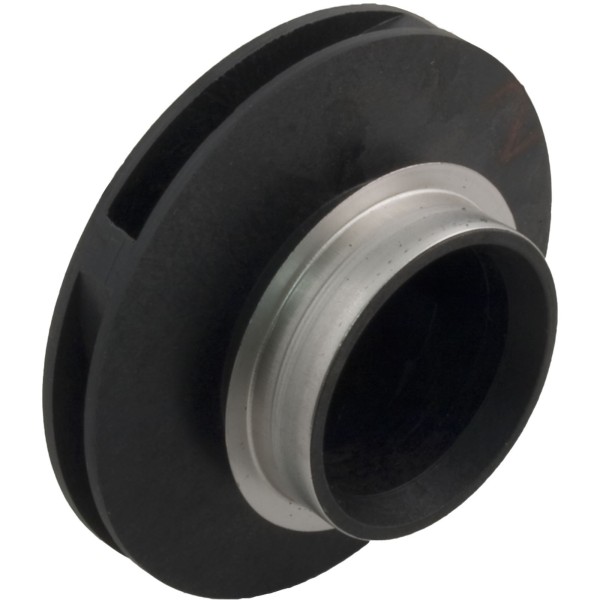

Impeller, Carvin Cygnet, 0.75 Horsepower : 05-3936-08-R

Impeller, Carvin Cygnet, 0.75 Horsepower Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Cygnet series pool pumps by Jacuzzi. Rated at 3/4hp, it is used in a Cygnet pump body, and must be installed on a 3/4hp (or greater) C-face motor with a threaded shaft. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 3-11/16" Vane Width ID: 9/32" Eye Diameter OD: 2-1/16" Eye Length: 1/2" Impeller Width OD: 1/2" Seal Seat Depth: 9/16"Shaft Length: Shaft Diameter OD: Seal Seat Diameter OD: 1-3/16"Manufacturer: Jacuzzi/CarvinPump Application: Cygnet Replaces 05393608R,05393608R000,5063-45,600306,
