Impeller, Carvin Magnum HF, P, R, 2.0 Horsepower, Pre 1990 : 05-3804-07-R

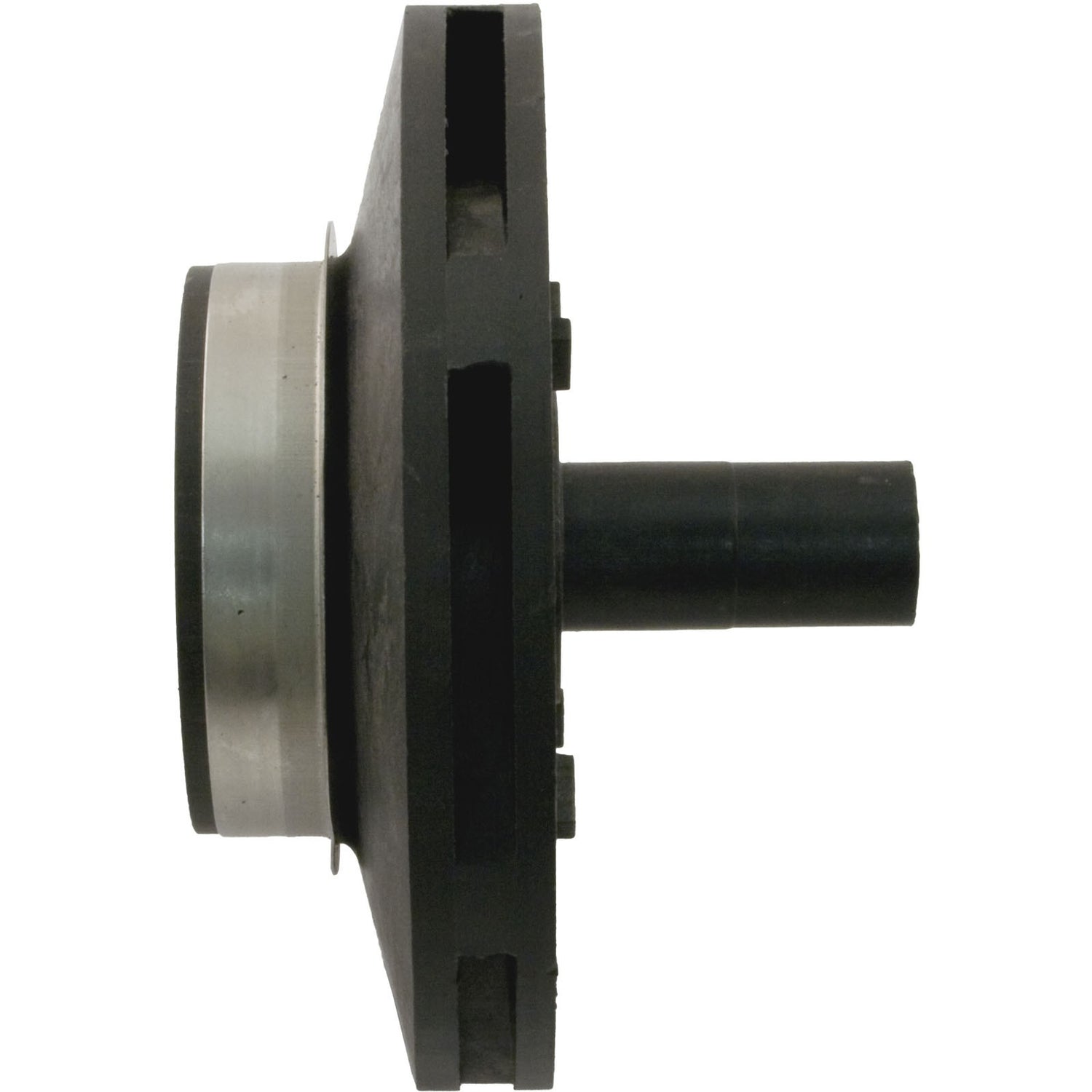

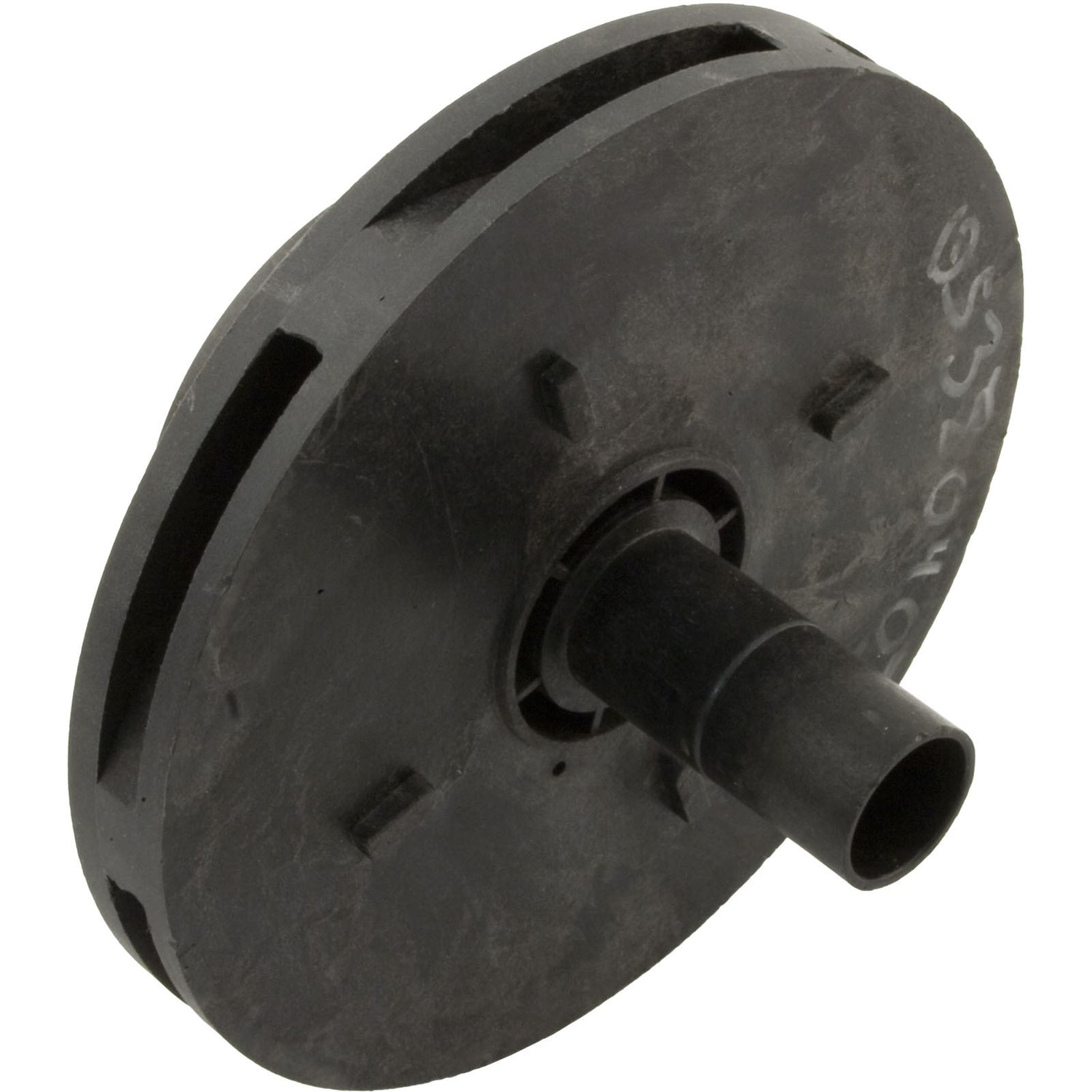

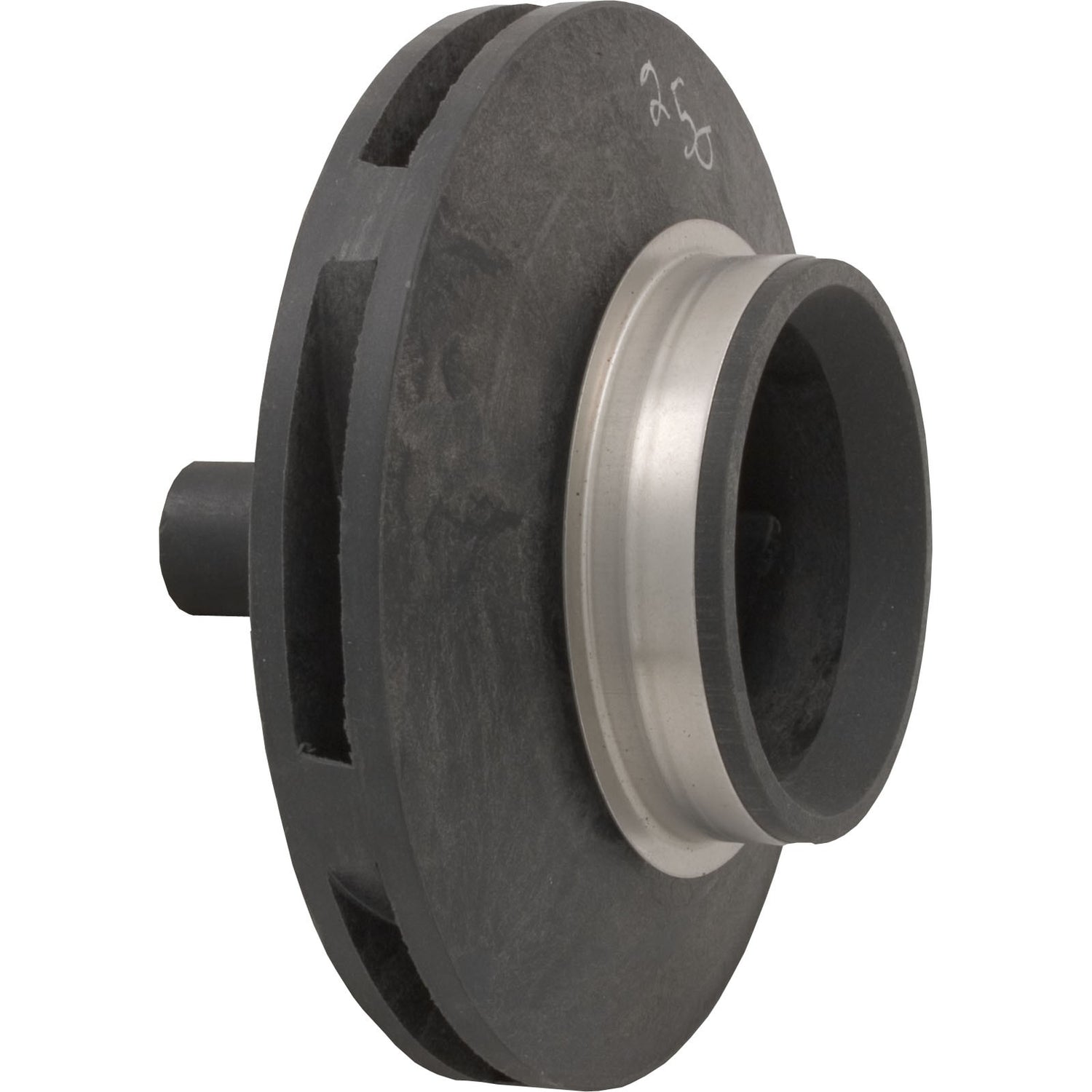

Impeller, Carvin Magnum HF, P, R, 2.0 Horsepower, Pre 1990 Jacuzzi/Carvin Pump ImpellerClosed face impeller made for the Magnum High Flow pool pump by Jacuzzi. Rated at 1.5hp, it is used in a Magnum pump body, and must be installed on a 1.5hp (or greater) C-face motor with a threaded shaft. Also fits Jacuzzi, P, and R series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-3/4" Vane Width ID: 1/4" Eye Diameter OD: 2-1/2" Eye Length: 5/8" Impeller Width OD: 9/16" Seal Seat Depth: 1/16"Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: EP Series, P Series, PC Series, R Series, RC Series, UP SeriesReplaces 05-3804-07,05380407R,5062-18E,5380407,600060,
