Impeller, Carvin Magnum HF, P, R, 0.75 Horsepower : 05-3801-00-R
Product details

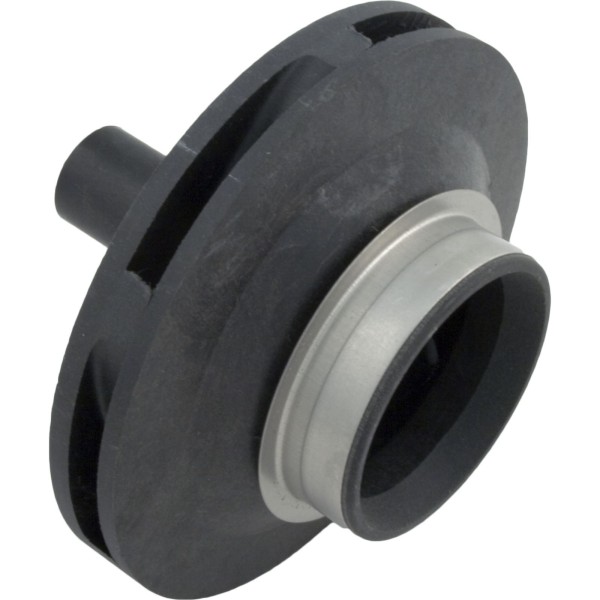

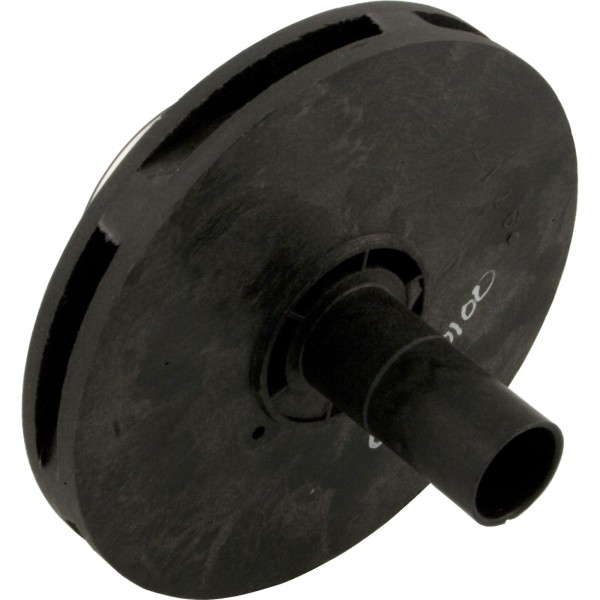

Impeller, Carvin Magnum HF, P, R, 0.75 Horsepower Jacuzzi/Carvin Pump ImpellerClosed face impeller made for the Magnum High Flow pool pump by Jacuzzi. Rated at 3/4hp, it is used in a Magnum pump body, and must be installed on a 3/4hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Force/3, Jacuzzi P, and R series pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4" Vane Width ID: 1/4" Eye Diameter OD: 2" Eye Length: 1/2" Impeller Width OD: 1/2" Seal Seat Depth: 1/16"Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: EP Series, P Series, PC Series, R Series, RC Series, UP SeriesReplaces 05-3801-00,05-3801-00-R000,05380100R,448733,5062-18B,5380100,
General
- Brand Carvin
- Reference 05-3801-00-R
- In stock 4 items
