Impeller, Carvin Magnum/Magnum Force 3, 3.0thp, All Dates : 05-0195-00-R

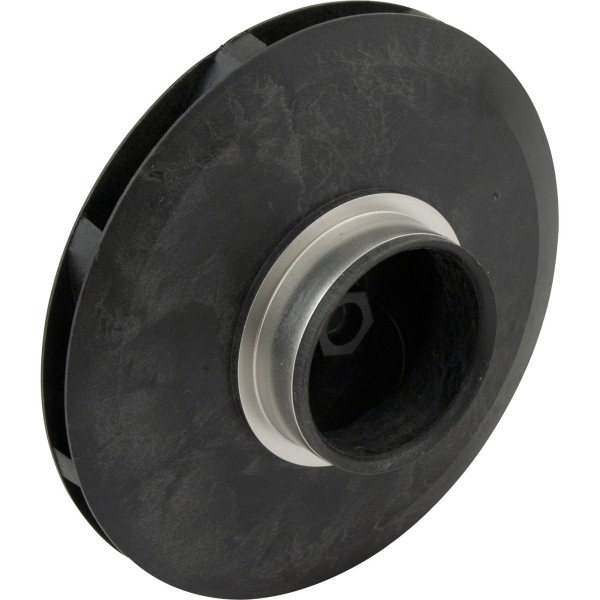

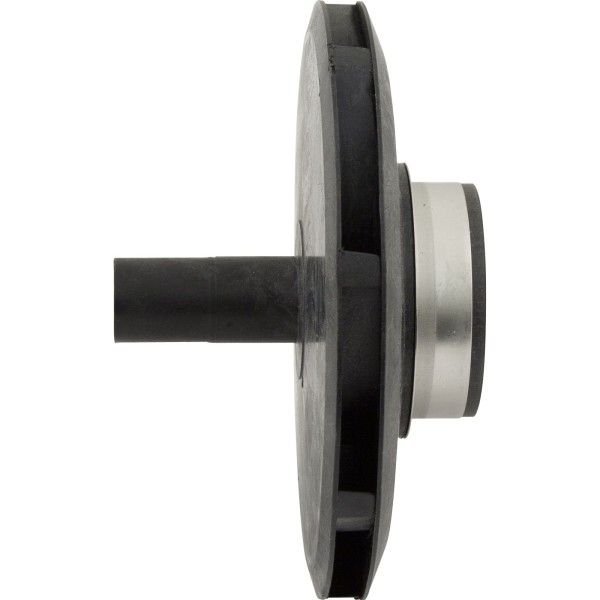

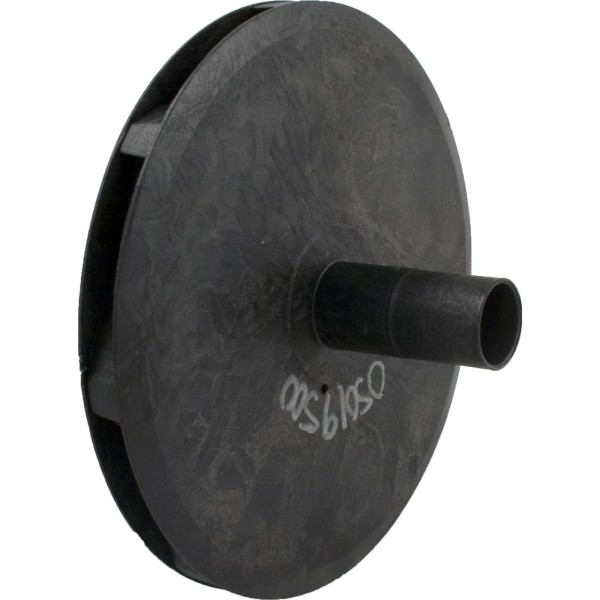

Impeller, Carvin Magnum/Magnum Force 3, 3.0thp, All Dates Jacuzzi/Carvin Pump Impeller Closed face impeller made for the Magnum pool pump by Jacuzzi. Rated at 3.0hp, it is used in a Magnum pump body, and must be installed on a 3.0hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Plus, Magnum Force and Magnum Force 3 pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 5-1/8" Vane Width ID: 5/16" Eye Diameter OD: 2" Eye Length: 9/16" Impeller Width OD: 3/8" Seal Seat Depth: Shaft Length: 1-9/16"Shaft Diameter OD: 11/16"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: Magnum, Magnum Force, Magnum Force 3, Magnum Plus Replaces 05-3820-07,05019500R,05382007R,448730,5064-15D,601131,JAC-101-9507,
