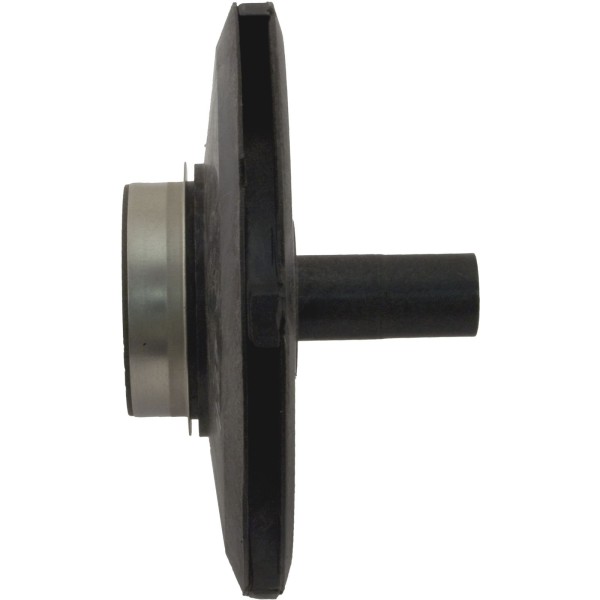

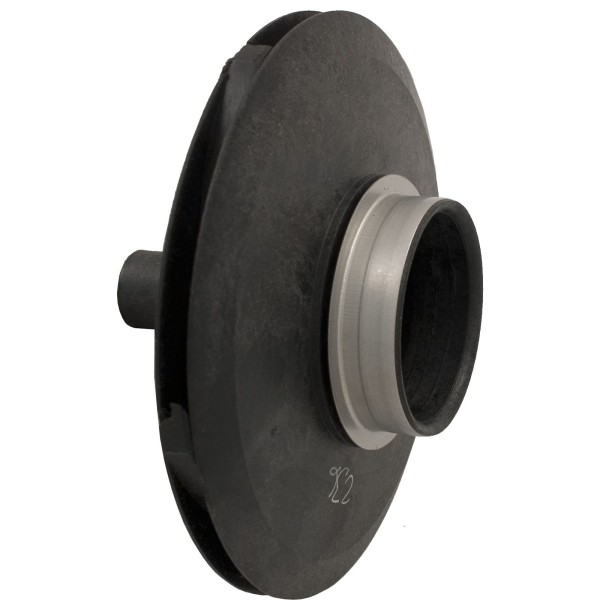

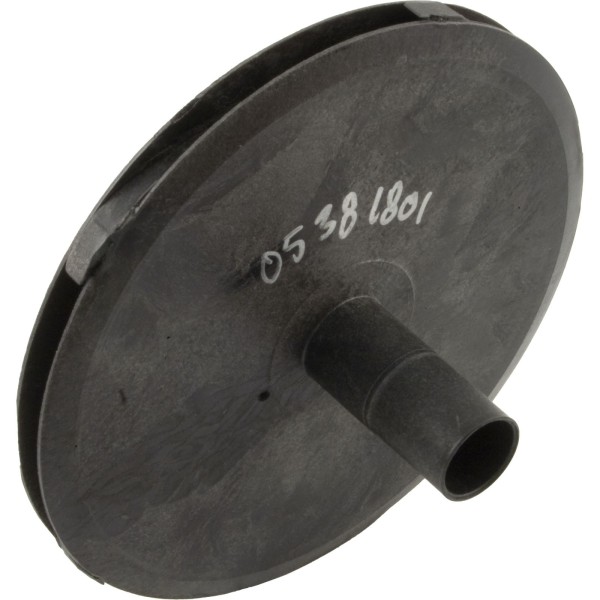

Impeller, Carvin Magnum, 2.0ohp/2.5thp, pre-04 : 05-3818-01-R

Impeller, Carvin Magnum, 2.0ohp/2.5thp, pre-04 Jacuzzi/Carvin Pump ImpellerClosed face impeller made for the Magnum pool pump by Jacuzzi. Rated at 2.0hp, it is used in a Magnum pump body, and must be installed on a 2.0hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Plus, Magnum Force and Magnum Force 3 pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 5-1/8" Vane Width ID: 1/4" Eye Diameter OD: 2" Eye Length: 1/2" Impeller Width OD: 3/8" Seal Seat Depth: Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: Manufacturer: Jacuzzi/CarvinPump Application: Magnum, Magnum Force, Magnum Force 3, Magnum PlusReplaces 05-3818-01,05381801R,429529,5064-15C,JAC-101-6474,
