Impeller, Carvin Magnum, 1.0ohp/1.5thp, 04+ : 05038203R

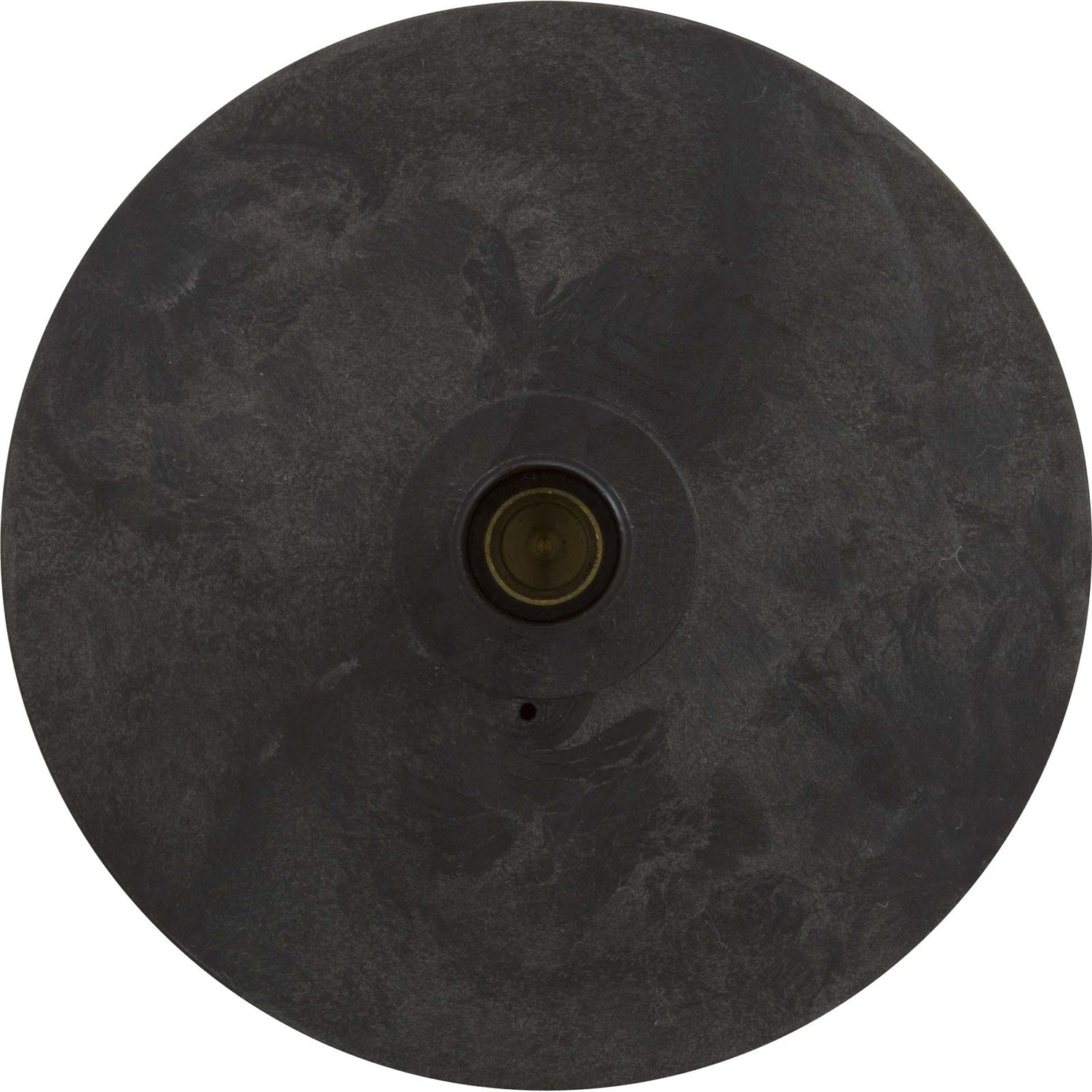

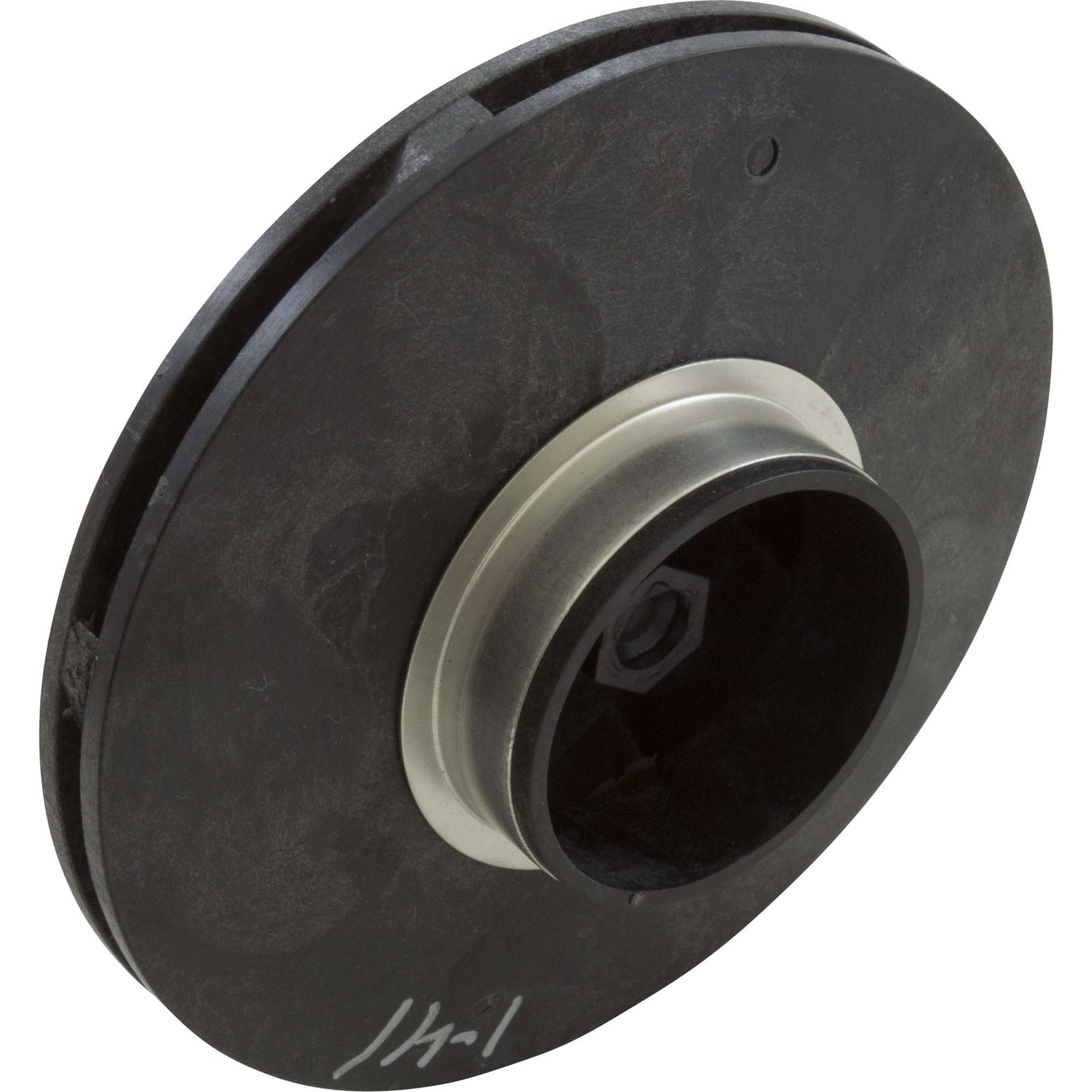

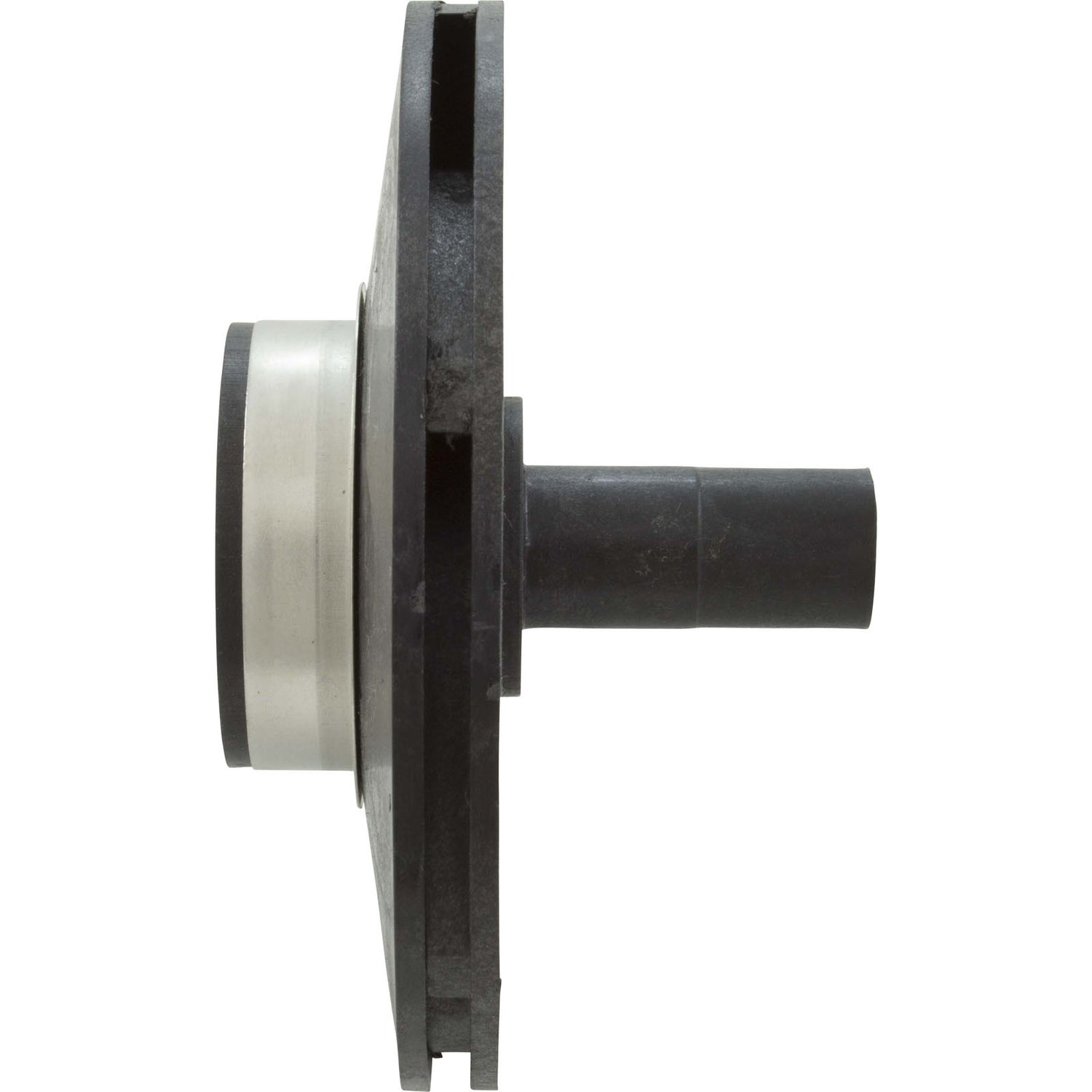

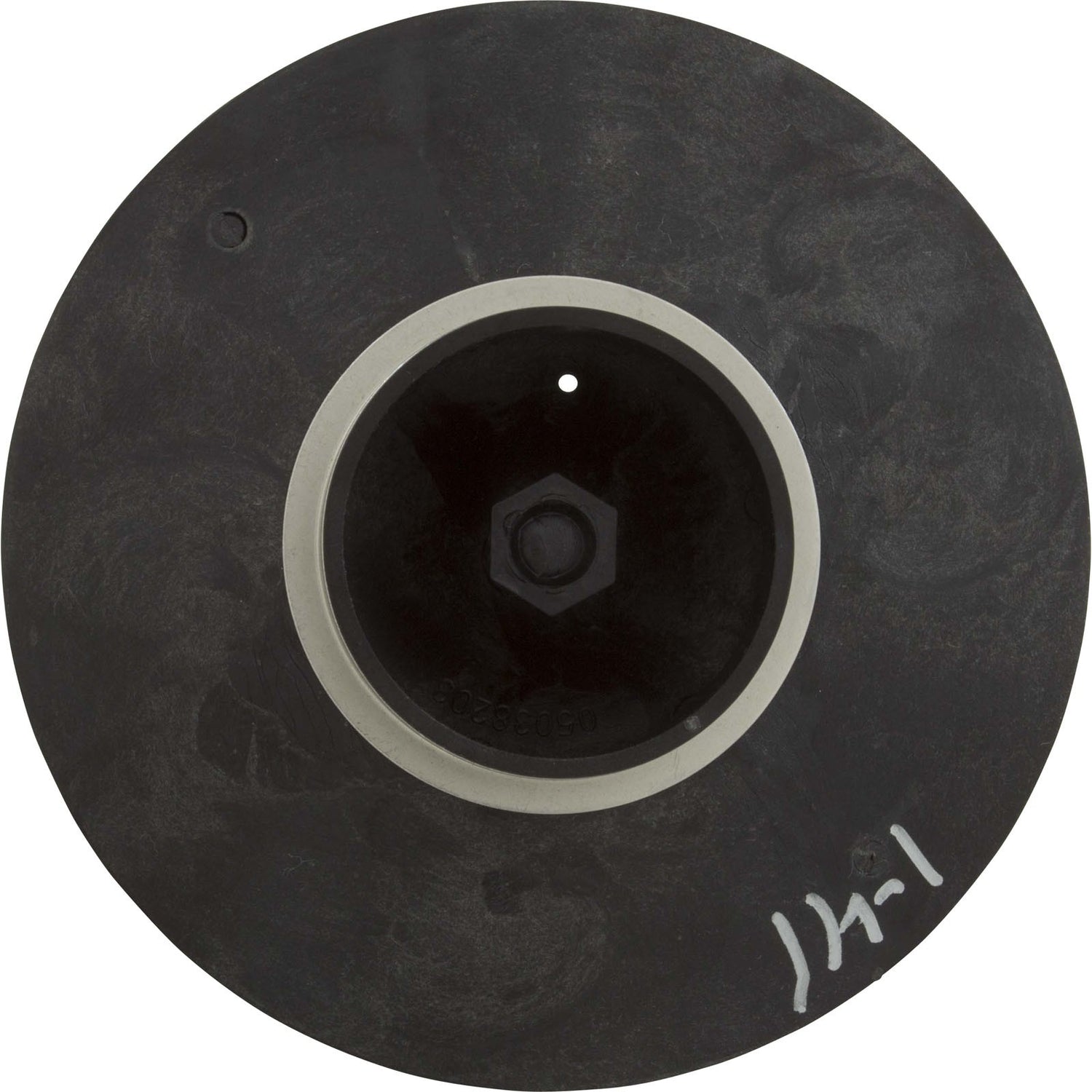

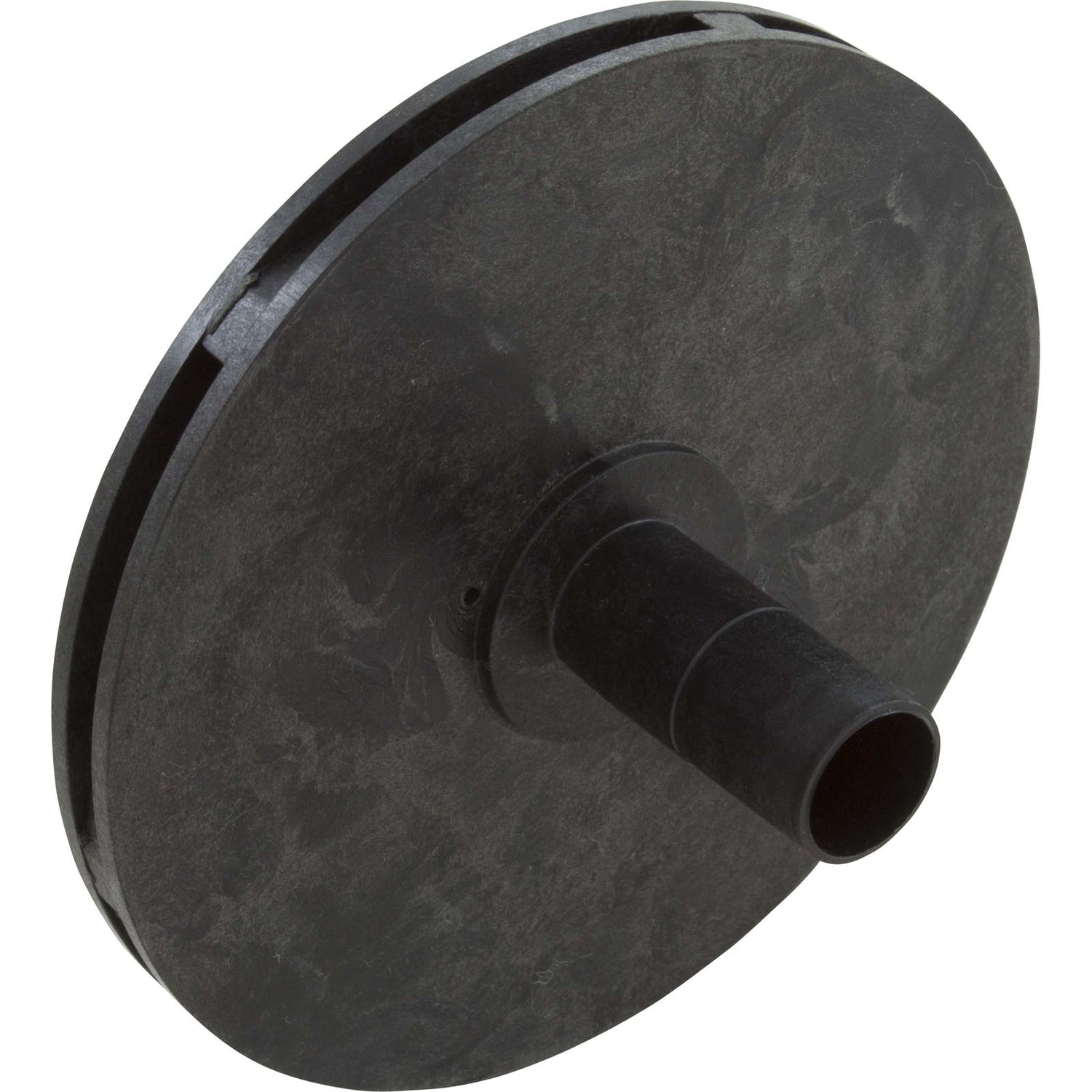

Impeller, Carvin Magnum, 1.0ohp/1.5thp, 04+ Jacuzzi/Carvin Pump ImpellerClosed face impeller made for the Magnum pool pump by Jacuzzi. Rated at 1.0hp, it is used in a Magnum pump body, and must be installed on a 1.0hp (or greater) C-face motor with a threaded shaft. Also fits Magnum Plus, Magnum Force and Magnum Force 3 pumps. Shaft seal sold separately Impeller Type: Closed Face Impeller Diameter OD: 4-11/16" Vane Width ID: 3/16" Eye Diameter OD: 2" Eye Length: 9/16" Impeller Width OD: 7/16" Seal Seat Depth: 1/8"Shaft Length: 1-9/16"Shaft Diameter OD: 3/4"Seal Seat Diameter OD: 1-3/8"Manufacturer: Jacuzzi/CarvinPump Application: Magnum, Magnum Force, Magnum Force 3, Magnum PlusReplaces 05-0382-03-R,435882,5064-131,
