Impeller, Hayward EcoStar C/Tristar SP3200/EE/SP3600, 2.0hp : SPX3220C

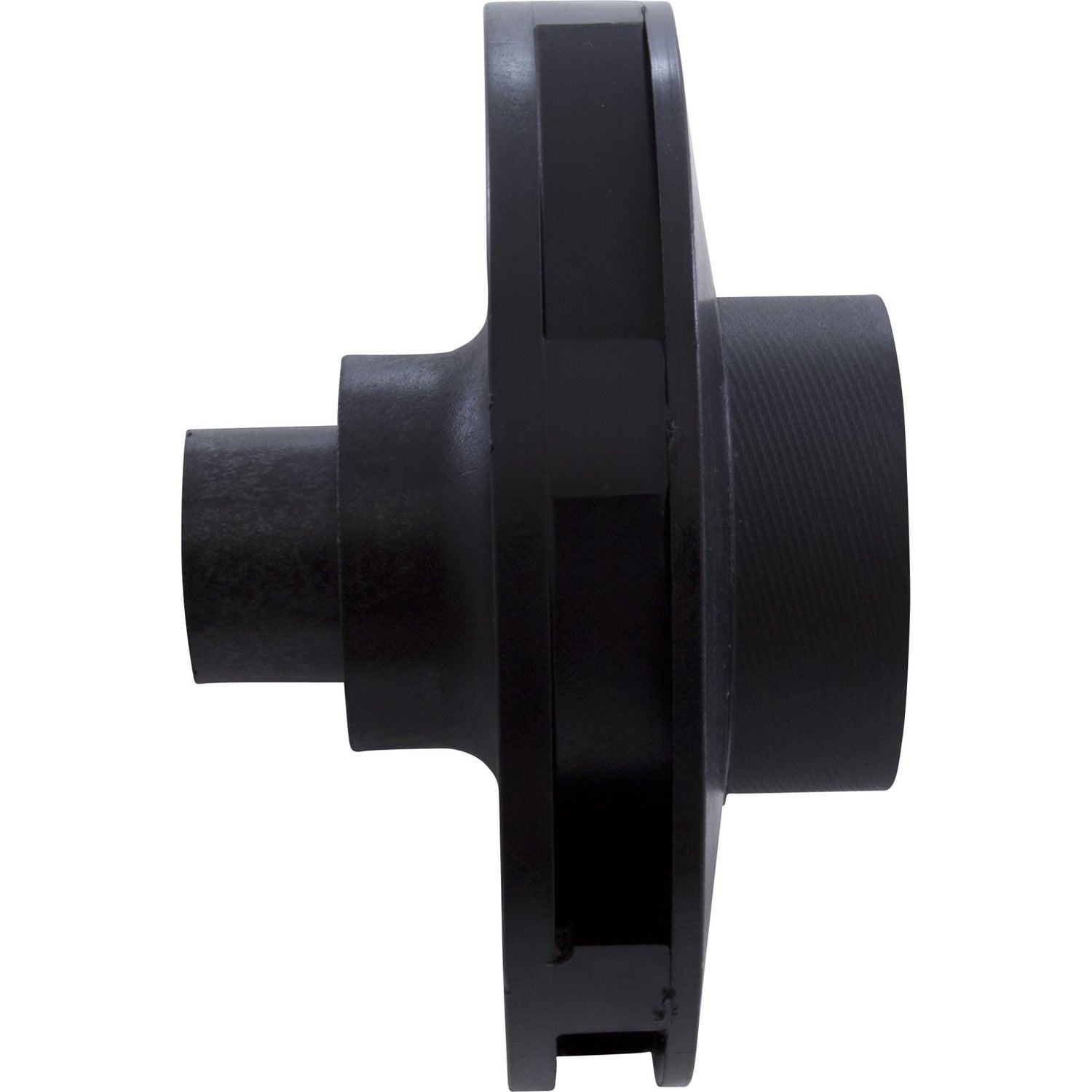

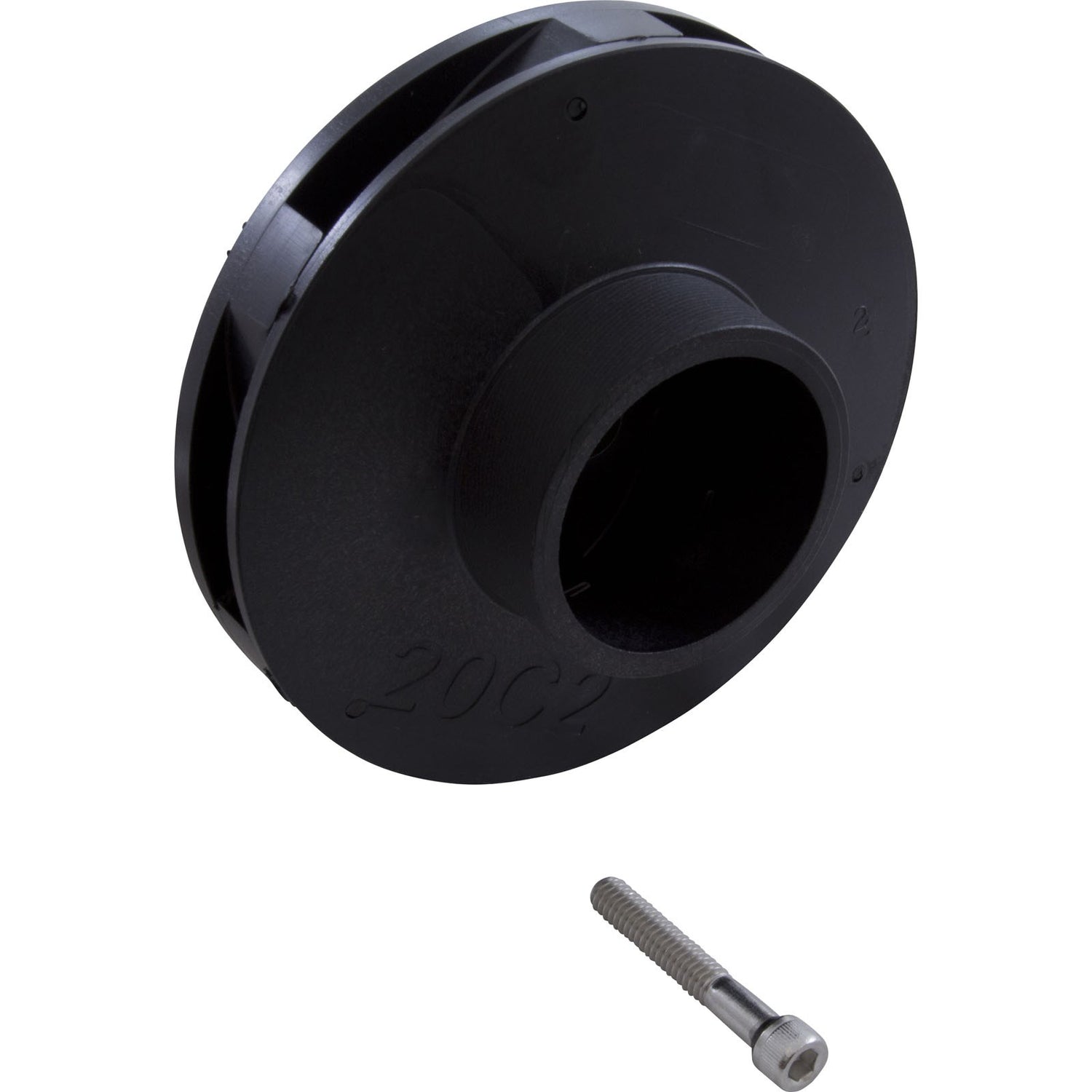

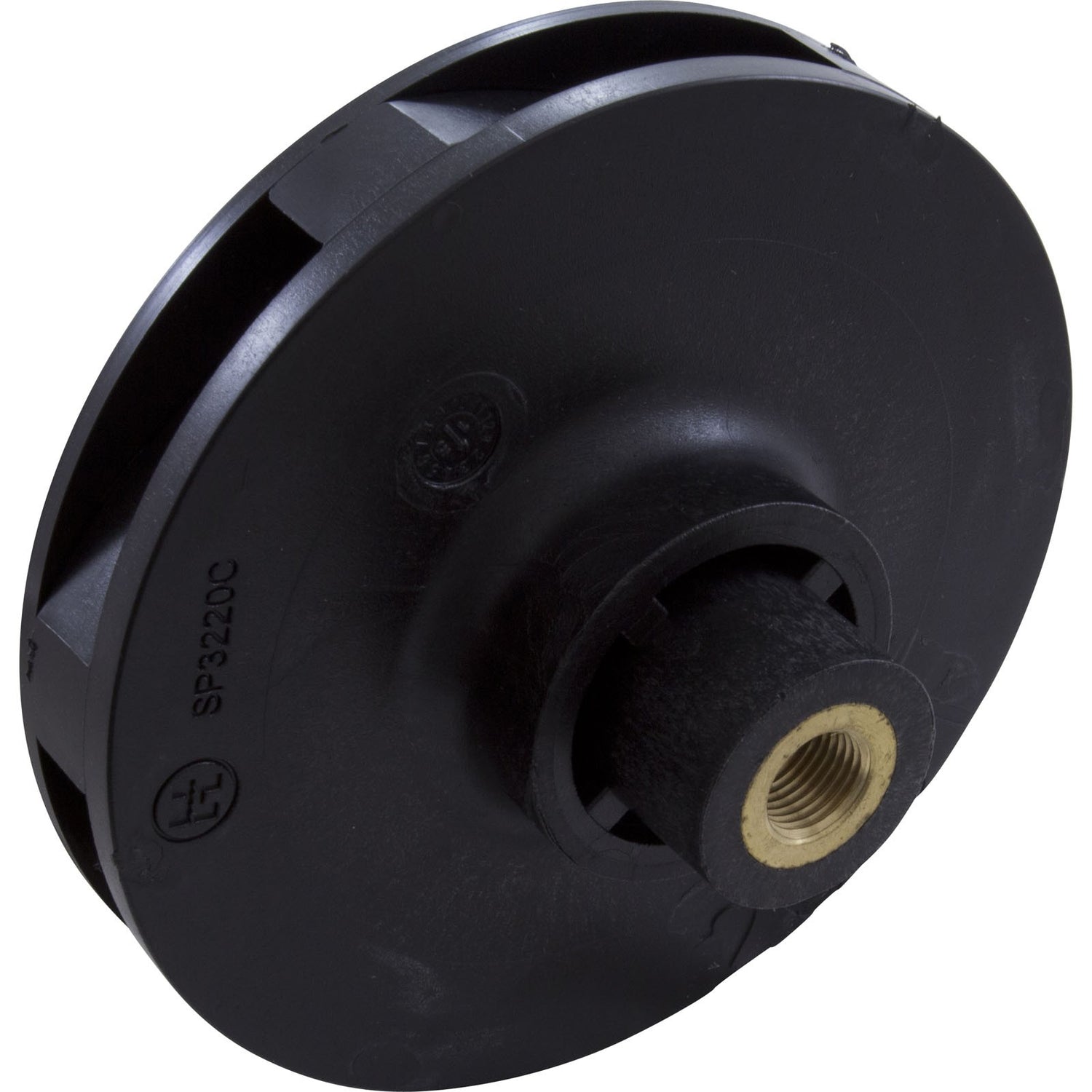

Impeller, Hayward EcoStar C/Tristar SP3200/EE/SP3600, 2.0hp Hayward Pump ImpellerClosed face impeller made for the TriStar SP3200/SP3200EE/SP3600 pool pump by Hayward. Rated at 2.0hp, it is used in a SP3200 and or SP3600 pump body, and must be installed on a 2.0hp (or greater) square flange motor. Shaft seal sold separately Impeller Type: Closed Face Pump Part Type: Impeller Impeller Diameter OD: 4-3/4" Vane Width ID: 7/16" Eye Diameter OD: 2-3/16" Eye Length: 3/4" Impeller Width OD: 13/16"Horsepower: 2.0hpSeal Seat Depth: 5/8"Shaft Length: Shaft Diameter OD: Seal Seat Diameter OD: 1-1/8"Manufacturer: HaywardModel: EcoStar CPump Application: SP3200, SP3200EE, SP3600, TristarReplaces 5112-213,623909,HAY-101-3212,SP3220C,
