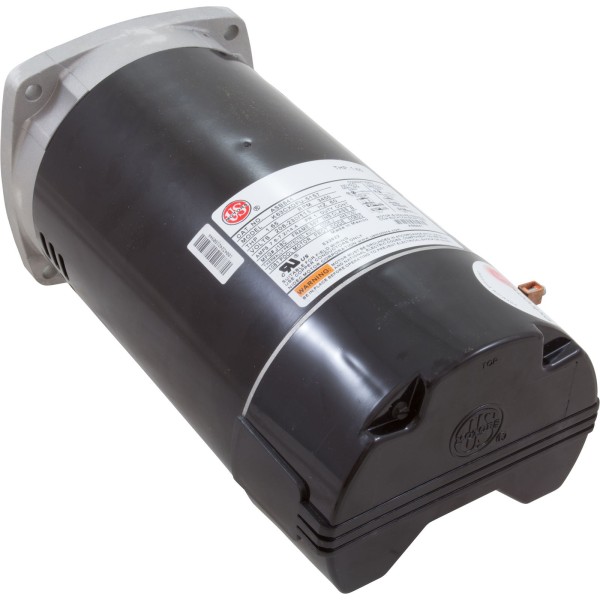

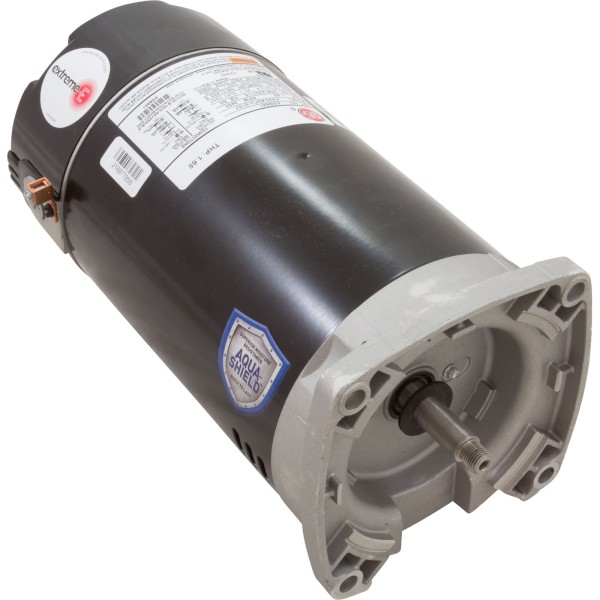

Motor, US Motor, 1.0hp, SQFL, Fullrate, 115/208/230v, 56Y, EE : ASB841
Product details
Motor, US Motor, 1.0hp, SQFL, Fullrate, 115/208/230v, 56Y, EE Square Flange Pool & Spa Motor - Full Rated, Energy EfficientSwitchless Design, 6.5" Frame Diameter, Category "S"FEATURES: Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Shaft Threads - 1/2-20 UNF-2A Voltage Selection Device (Dual Voltage Only) Switchless Design 6.5" Diameter Frame Triple Bearing Protection Continuous Duty Sealed Ball Bearings Class B Insulated Thermally Protected 50°C Ambient Discount Symbol: DS-FPS Motor Type: Pool Motor Amperage: 14.4A/7.6A-7.2A Voltage: 115v/208v-230v Phase: 1 Phase (1ph) Frame Type: 56Y Speed: 1 Speed (1-Spd) Horsepower: 1.0hpTotal Horsepower: 1.65thpMotor Shaft Type: ThreadedMotor Style: Square FlangeCapacitor On Top: NoManufacturer: US-MotorsReplaces 38531,5238-153,B2841V1,EMR-60-7212,
General
- Brand Nidec Motor Corp/US Motors
- Reference ASB841
- In stock 37 items
