Heater, Coates, 24kW, 230v, Single Phase : 12424CPH

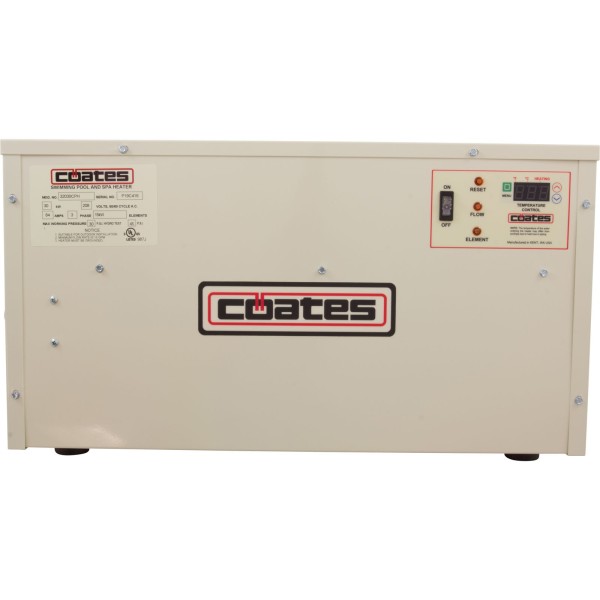

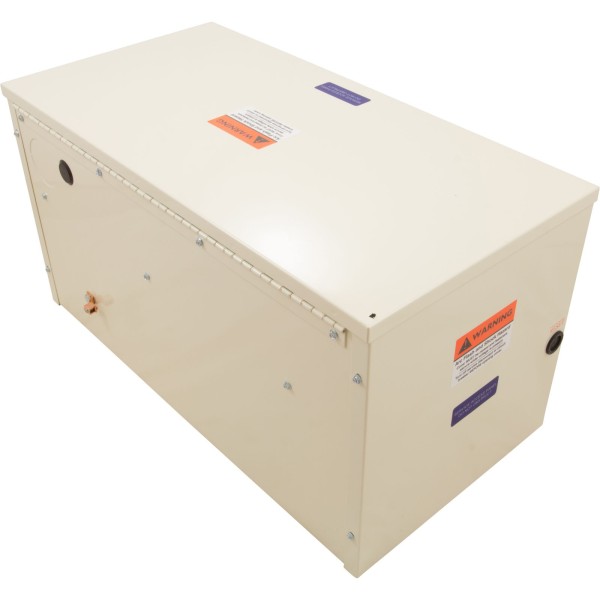

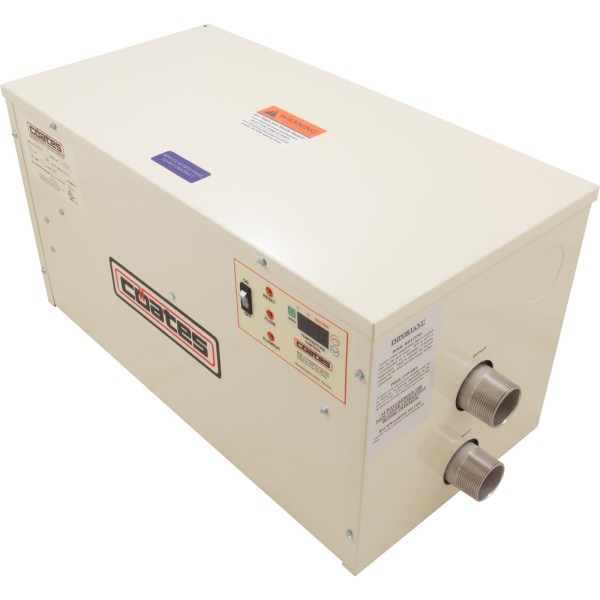

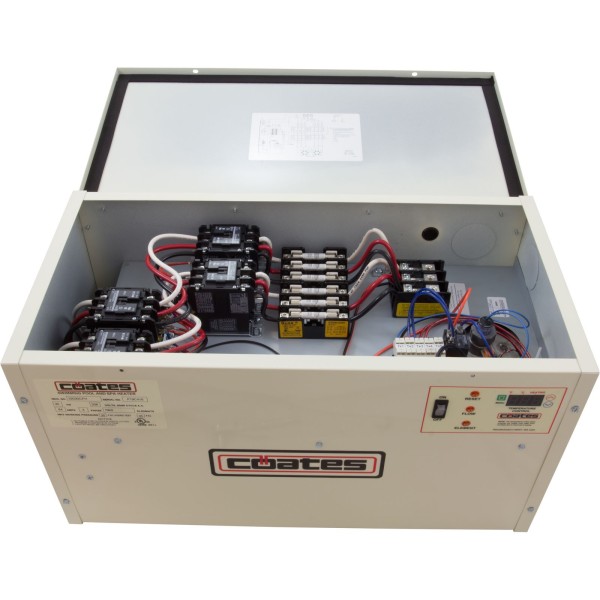

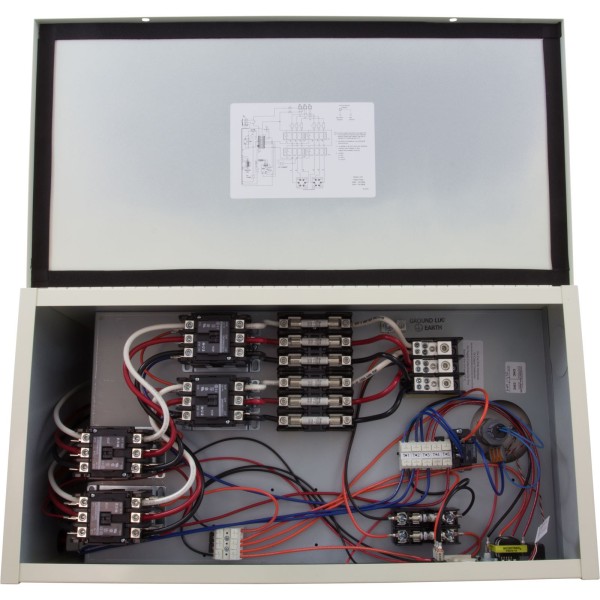

Heater, Coates, 24kW, 230v, Single Phase Coates CPH Series Stand Alone Pool Heater These pool heaters feature a flow switch to prevent operation when there is no water flow. An all stainless steel tank for long life and corrosion resistance is also standard. Available in single phase and three phase configurations. Now includes a digital thermostat Standard Features: Incoloy heating elements Digital thermostat Manual reset high temp limit Flow switch 1-1/2" male NPT connections Stainless steel tank Heavy duty contactors Element, flow and high temp “on” lights Element fusing on units rated over 48 amps Min Flow Rate: 20 GPM Max Flow Rate: 80 GPM UL Listed for indoor/outdoor Installation Box Dimensions - 24"L x 12"W x 13"H Heater Application: Pool Voltage: 230v Wattage: 24kW Heater Type: Stand Alone Btu Rating: 100K Manufacturer: Coates Model: CPH SeriesHeater Inlet Size: 1-1/2"Heater Inlet Type: Male Pipe Thread (mpt)Heater Outlet Size: 1-1/2"Heater Outlet Type: Male Pipe Thread (mpt) Replaces 623665,6241-08,
