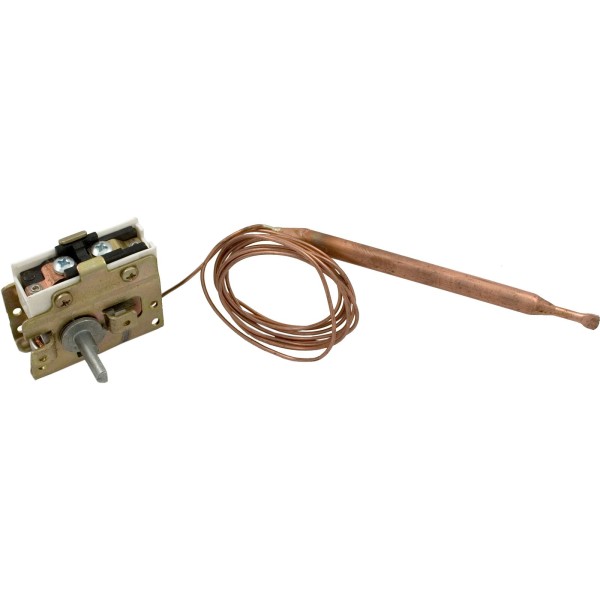

Thermostat, Invensys, 5/16", 60", SPST, 25A : 275-2720-01
Out-of-Stock
$23.09
No tax
Product details
Thermostat, Invensys, 5/16", 60", SPST, 25A
Thermostats
Single pole rated at 25 amps with max temp rating at 107°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater. This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad thermostat with a new one
Capillary Length: 60"
Bulb Thickness: 5/16"
Thermostat Type: Mechanical
Thermostat Application: Generic
Bulb Diameter: 5/16"
Bulb Length: 4-1/2"
Capillary Length: 60"
Thermostat Amperage: 25A
Electrical Connection: Slide Connector, 1/4" MalePole/Throw: Single Pole Single Throw (spst)
Replaces
389770,471268,6270-44,788379603397,T-STAT5/16-60,
General
- Brand Invensys Appliance Controls
- Reference 47-335-1064
Specific references
- MPN: 275-2720-01
