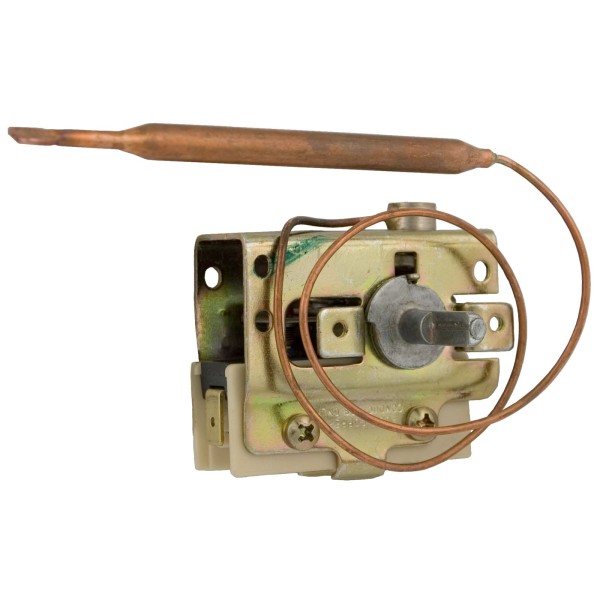

Thermostat, Invensys, 1/4", 12", SPST, 25A : 275-3123-00

Thermostat, Invensys, 1/4", 12", SPST, 25A Thermostats Single pole rated at 25 amps with max temp rating at 107°F. Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater. This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment! Replace bad thermostat with a new one Capillary Length: 12" Bulb Thickness: 1/4" Thermostat Type: Mechanical Thermostat Application: Generic Bulb Diameter: 1/4" Bulb Length: 3-3/4" Capillary Length: 12" Thermostat Amperage: 25A Electrical Connection: Slide Connector, 1/4" MalePole/Throw: Single Pole Single Throw (spst) Replaces 378504,610438,72026,9135-03A,9185-112,IAC275312300,T-STAT1/4-12,
