Heater, FloThru, D-1, 15" x 2", 230v, 4.0kW : 1563-08

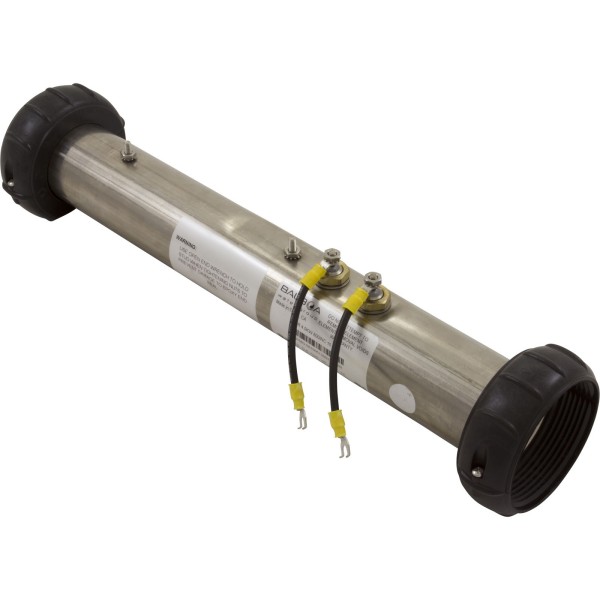

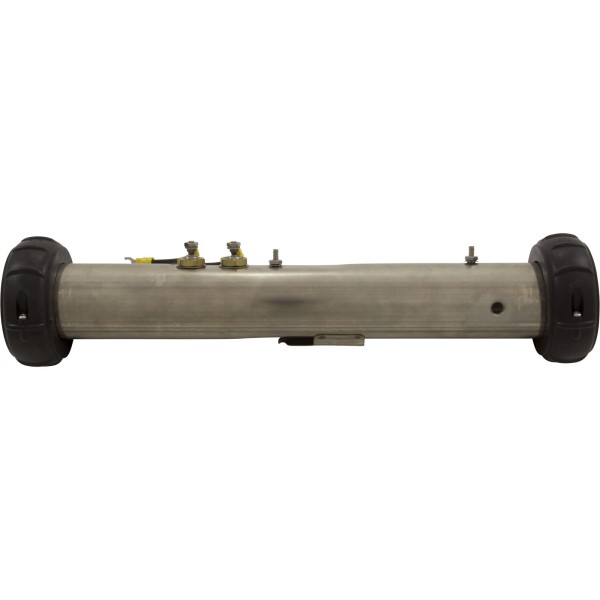

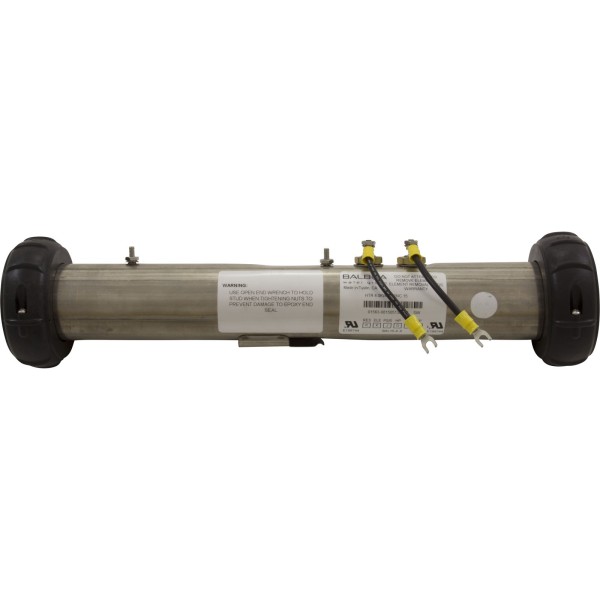

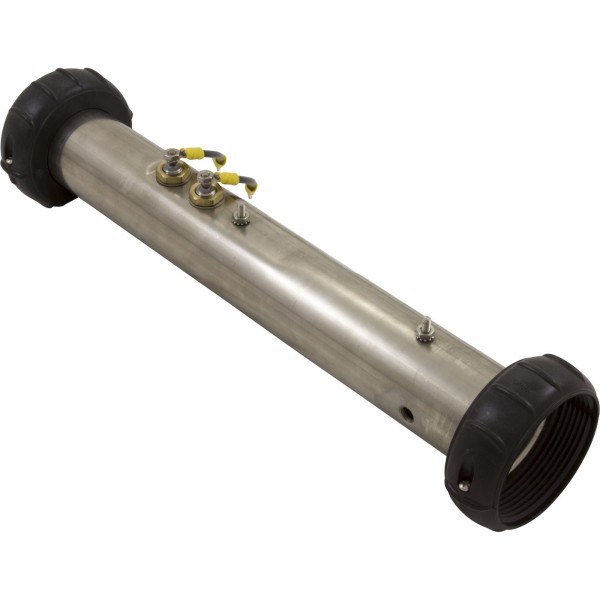

Heater, FloThru, D-1, 15" x 2", 230v, 4.0kW Dimension One Stainless steel replacement 4.0kW/230v 15" x 2" heater assy. Sensors can be mounted under the heater cover plate located 180 degrees from the heater terminals. Shipped with heater split nuts. Pressure switch, gaskets, and tailpieces not included Housing Configuration: Straight Heater Length: 15" Lead End Terminal Location: 4-1/4" Threaded Tap Orientation: 3 O`Clock Threaded Tap Location: 13-1/8"-From-Leading-End Kilowatts: 1.0kW, 4.0kW Voltage: 115v, 230vSensor Stud Orientation: 6 O`ClockMounting Stud Type: FixedHeater Size: 2"Heater Application: Dimension One Replaces 01563-12C,1563-12,389703,48-3600-10-158H,C2400-0158,E2400-004,
