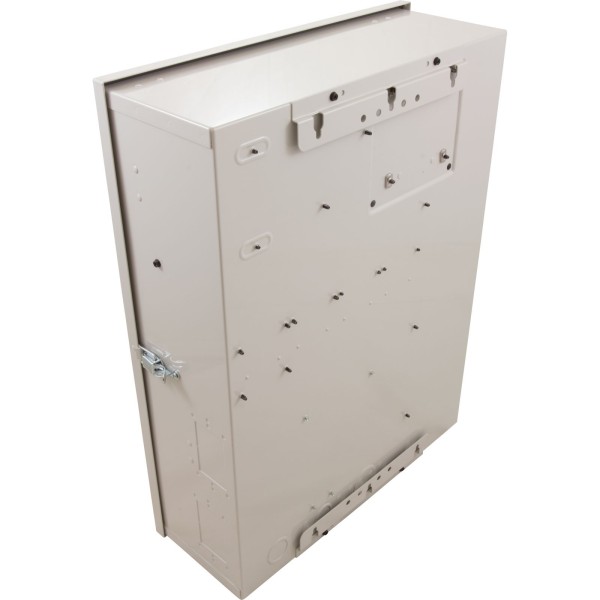

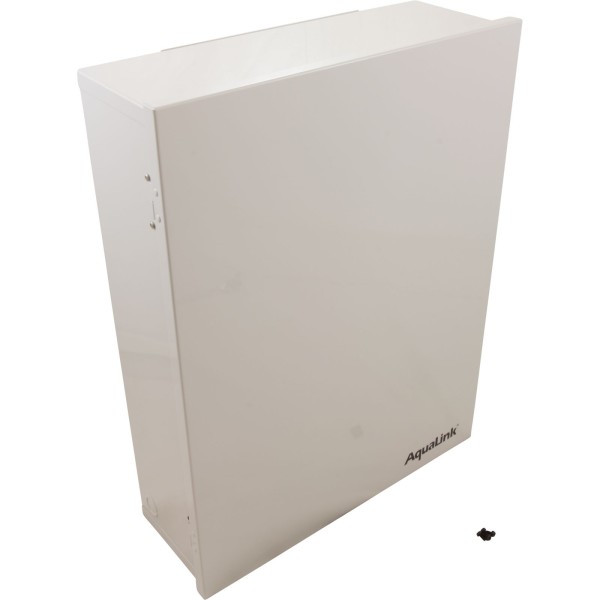

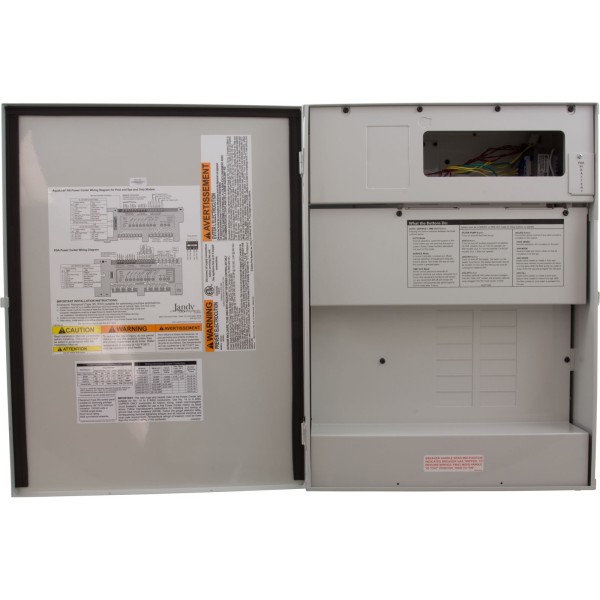

Power Center, Jandy AquaLink RS Sub-Panel 6614-LD, Standard : 6614-LD
Product details
Power Center, Jandy AquaLink RS Sub-Panel 6614-LD, Standard Available with or without PureLink™ salt chlorinator, in foundation, standard and sub-panel with twelve (12) breaker mount plate slots and knockout for GFCI. AquaLink or PureLink Power Centers are required for all AquaLink RS or AquaLink PDA control systems. Features: Used with AquaLink RS and AquaLink PDA system levels Simple, top-down installation 115 VAC Power Transformer (supply input) Powder-coated, galvanized steel construction Multiple knockouts for 1/2" to 1 1/2" conduit Service and time-out for all circuits (AquaLink RS & PDA) Twelve 1" breaker mounts & slots. Rated for 125 Amps total (sub-panel models only) GFCI side knockout (sub-panel only) Add up to three (3) auxiliary power centers within 500 feet of the primary power center Add surge protection for all componentsIncluded with model 6614LD: (4) 3HP Relays, (8 Max) Sub-Panel for circuit breakers 12 breaker slots Automation Control Type: Power Center Manufacturer: Zodiac Model: AquaLink Sub Panel Included: Yes Compatible User Interface: 3 HP Relays Included: 4 Valve Actuators Included: 0Replaces 56871,6614LD,9238-197,9238-198,9238-91,JDY-30-6614,
General
- Brand Jandy/Zodiac
- Reference 6614-LD
