$419.44

Product info

Control System Kit, Balboa BP7, all outputs are 230V, 4.0kW, 1-2 Pumps w/TP500 Topside & Light Cord

Product details

BP7 Control System Bundle
The Next Generation of Balboa BP Hot Tub Control Systems is finally here.
With 7 relays, the BP7 has 32 different setups and can power a spa with 1-4 pumps, including Microsilk systems. Can also replace any Balboa BP System* while using the existing topside that is already installed on the spa. Will replace any Balboa VS or EL System* when you match it with any TP or SpaTouch topside panel. Will replace any Balboa or other brand’s non-low flow system* when you match it with any TP or SpaTouch topside panel. This system can only be used as 220v.

Additional Information

AMP Style Receptacles - Component Cords Not Included

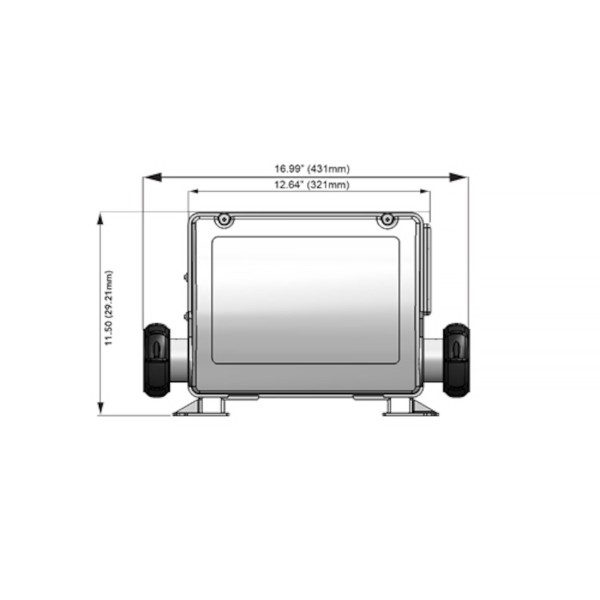

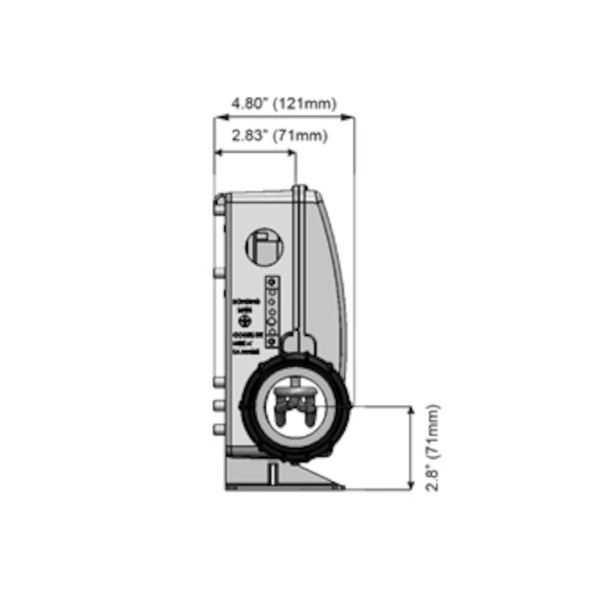

Enclosure - Plastic - 17" x 11.5" x 4.75" WxHxD (Larger than VS Enclosures)

Sensors - Included

Keypad - Included - TP500, #57238 - 6.3" x 2.25"


Suggested Overlay #17183 (Included)


Also Supports all BP ancillary products. (ControlMySpa™, BBA™, CZ™ and Status Pro)

Heater Style - Flow Thru (Fixed)


Wattage - 1.0/4.0kW


Measures - 2" x 15" long

System Voltage - 240V (Neutral NOT Required)


Can Be Wired With Neutral to Support 120v Pumps, Blowers, Etc.

Component Configuration - 120v/240v - Pump1 (1spd or 2spd) + Pump2 or Blower (1spd or 2spd) + Circ (1spd) + Ozone + AV Receptacle (120v or 230v)

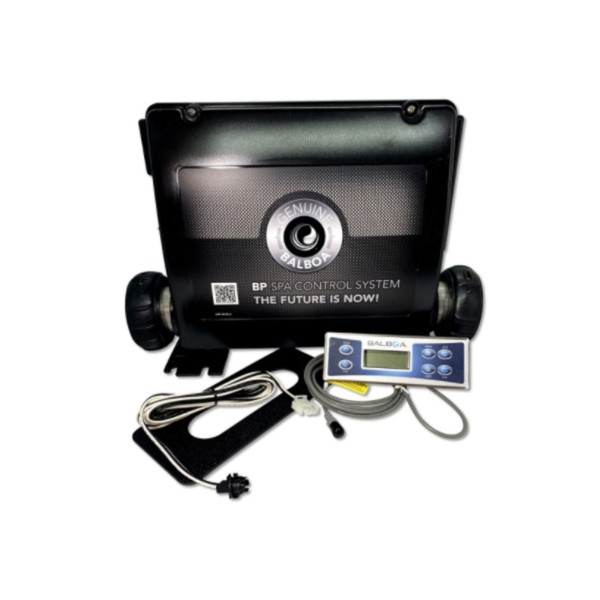

Included With System - 4.0kw Heater, Sensors, Keypad (TP500), Adapter Plate, Light Cord - Component Cords Not Included - Works With Keypad 57238 (TP500) Suggested Overlay #17183 (Included)


CAN REPLACE ANY BALBOA VS OR EL SYSTEM - When you match it with any TP or SpaTouch™ topside panel.

Alternate Part Numbers

54219 54216 54217 54220 Replaces - VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS510DZ, VS511Z, VS511SZ

General

  • Reference G6405
  • In stock 50 items
