$419.44

Product info

Control System Kit, Balboa BP7, 230V Only, 4.0kW, 3 Pumps w/TP600 Topside & Light Cord

Product details

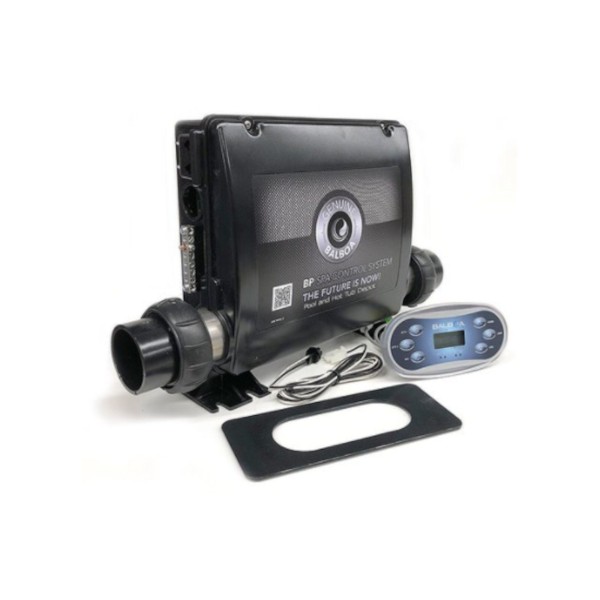

BP7 Control System Bundle
The Next Generation of BP Hot Tub Control Systems is finally here.
A system built for the aftermarket.. With 7 relays, the BP7 has 32 different setups and can power a spa with 1-4 pumps, including Microsilk systems. Can also replace any Balboa BP System* while using the existing topside that is already installed on the spa. Will replace any Balboa VS or EL System* when you match it with any TP or SpaTouch topside panel. Will replace any Balboa or other brand’s non-low flow system* when you match it with any TP or SpaTouch topside panel. This system can only be used at 220v.

Additional Information

AMP Style Receptacles - Component Cords Not Included

Enclosure - Plastic - 17" x 11.5" x 4.75" WxHxD (Larger than VS Enclosures)

Sensors - Included

Keypad - Included - 7.1" x 3.5" (TP600)


Also Supports all BP ancillary products (ControlMySpa™, BBA™, CZ™ and Status Pro)

Heater Style - Flow Thru (Fixed)


Wattage - 1.0/4.0kW


Measures - 2" x 15" long

System Voltage - 240V (Neutral NOT Required)


Can Be Wired With Neutral to Support 120v Pumps, Blowers, Etc.

Component Configuration - 120v/240v - Pump1 (1spd or 2spd) + Pump2 or Blower (1spd or 2spd) + Pump3 or Blower (1spd or 2spd) + Circ (1spd) + Ozone + AV Receptacle (120v or 230v)

Included With System - 4.0kw Heater, Sensors, Keypad (TP600), Adapter Plate, Light Cord - Component Cords Not Included - Works With Keypad 55676-09 (TP600) Suggested Overlay #12101 (Included)


CAN REPLACE ANY BALBOA VS OR EL SYSTEM When you match it with any TP or SpaTouch™ topside panel.

Alternate Part Numbers

Replaces VS300, VS500Z, VS501Z, VS501SZ, VS503SZ, VS504SZ, VS510SZ, VS510DZ, VS511Z, VS511SZ, VS513Z, VS514SZ, VS515Z, VS515SZ, VS520Z, VS520SZ, VS520DZ, VS525Z

General

  • Reference G6406
  • In stock 50 items
