Control System, Balboa BP7, 230V, 5.5kW Plug-n-Click Heater, Can run 1-4 Pumps : G5361
Product details

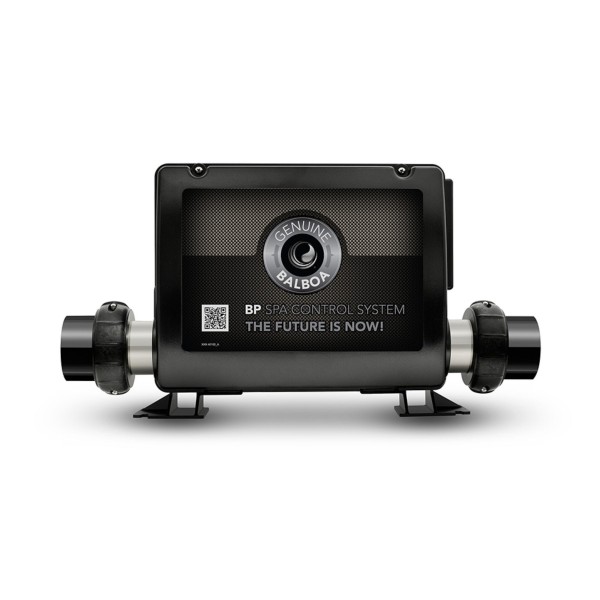

BP7 Control System
The Next Generation of BP Hot Tub Control Systems is finally here.
With 7 relays, the BP7 has 32 different setups and can power a spa with 1-4 pumps, including Microsilk systems. Can also replace any Balboa BP System* while using the existing topside that is already installed on the spa. Will replace any Balboa VS or EL System* when you match it with any TP or SpaTouch topside panel. Will replace any Balboa or other brand’s non-low flow system* when you match it with any TP or SpaTouch topside panel. This system can also be used as 110v or 220v.
Additional Information
Main Circuit - 2- Speed Pump 120/240V
2nd Circuit - 1- Speed Blower or Pump 120/240V
3rd Circuit - 1- Speed Pump 120/240V
4th Circuit - 1- Speed Pump 120/240V
Spaside Control - Not Included
Heater Style - Straight/Fixed, Wattage - 5.5kW
System Voltage - 120/240V
Can run 1-4 pumps
Alternate Part Numbers
56485 33-56485-01General
- Reference G5361
